Introduction | Background | Journal

The Kansas Cosmosphere and Space Center, located in Hutchinson, Kansas, maintains the world's premier space artifact restoration program. With more than 100 major projects to its credit, including the Apollo 13 Command Module Odyssey and Gus Grissom's Mercury spacecraft Liberty Bell 7, the Cosmosphere is the leader in restoration science, a field it pioneered over 20 years ago.

The Cosmosphere's current restoration project is Gemini 6. Commanded by Wally Schirra and piloted by Tom Stafford, the spacecraft performed the first ever rendezvous in Earth orbit with another manned spacecraft, Gemini 7.

Gemini 6 arrived at the Cosmosphere on October 2, 2003, from the St. Louis Science Center in Missouri, where it had been on display. After restoration is complete, Gemini 6 will be placed on display in Oklahoma City.

This journal, prepared in partnership with collectSPACE, will track the Cosmosphere's progress restoring Gemini 6.


Condition Upon Arrival


The capsule was skinned with a plexiglass covering. This aspect made a thorough internal examination impossible.

Overall, the capsule was in excellent condition. There were no signs of active deterioration/corrosion.

Exterior

The exterior shingles were in very good condition. All panels appeared to be original and intact. No restoration will be required to these areas.

Exterior stenciling on the capsule was faded, as was the American flag. Fading appeared to have been gradual and done over a period of time. The stenciling did not appear to be actively cracking or flaking, but it will be more closely examined while restoration is underway.

The rear heatshield was in excellent condition.

The exterior plexiglass skin was in very poor shape. It was showing signs of active degradation. In several places the plexi was cracked and missing attachment screws. Overall, the plexi is discolored (beginning to yellow).

Interior

There are several interior components and hardware pieces missing. These were probably removed after the mission.

The National Air and Space Museum recently transferred several pieces of Gemini hardware to the Cosmosphere. Among these pieces were several Gemini 6 components. These will be reinstalled back into the capsule.

Other missing components will be replaced, as possible, using original Gemini hardware. The missing components were as follows:
  • Pilot abort control handle
  • Pedestal panel repress valve (mock-up)
  • Center panel cabin temp control knob
  • Center/back storage container and panel
  • Cabin recirculation levers
  • Several overhead switches and circuit panels
  • Command side stow handle and switch
  • Command side drogue and parachute switches
  • Pilot side encoder controller and switch
  • Several pilot side panels, levers and switches
  • Waste management panel
  • Drink control panel
  • Several cabin lights
  • Insulation pads and seat/couch cushions
  • Interior cabin mirrors


Restoration Journal
Presented with most recent entry first


December 23, 2003

  • Final restoration process completed.

December 19, 2003

  • Continued reinstallation of missing exterior bolts.

  • Restoration near completion.

December 18, 2003


hi-res

hi-res

hi-res

hi-res

  • Installed pilot side hatch.

  • Continued minor interior and exterior clean. All corrosion has been removed.

  • Reinstalling missing exterior bolts.

December 17, 2003


hi-res

hi-res

hi-res

  • Finished installation of all internal hardware.

  • Began to prepare pilot side for reinstallation of hatch.

  • Finished external cleaning.

December 16, 2003


hi-res

hi-res

  • Finished installation of pilot side hatch window.

  • Began external cleaning.

December 15, 2003

  • Began internal cleaning.

December 12, 2003

  • Began to reinstall pilot side hatch window.

December 11, 2003


hi-res

  • Reinstalled command side RCS panel.

  • Installed two missing gauges.

December 10, 2003


hi-res

hi-res

hi-res

hi-res

  • Majority of interior hardware now reinstalled.

  • Reinstalled the pilots side RCS panel.

  • Removed command side RCS panel. Removed 2 mockup RCS engine. Installed two flown RCS engines in their place.

December 9, 2003

  • Continued installation of exterior shingle bolts.

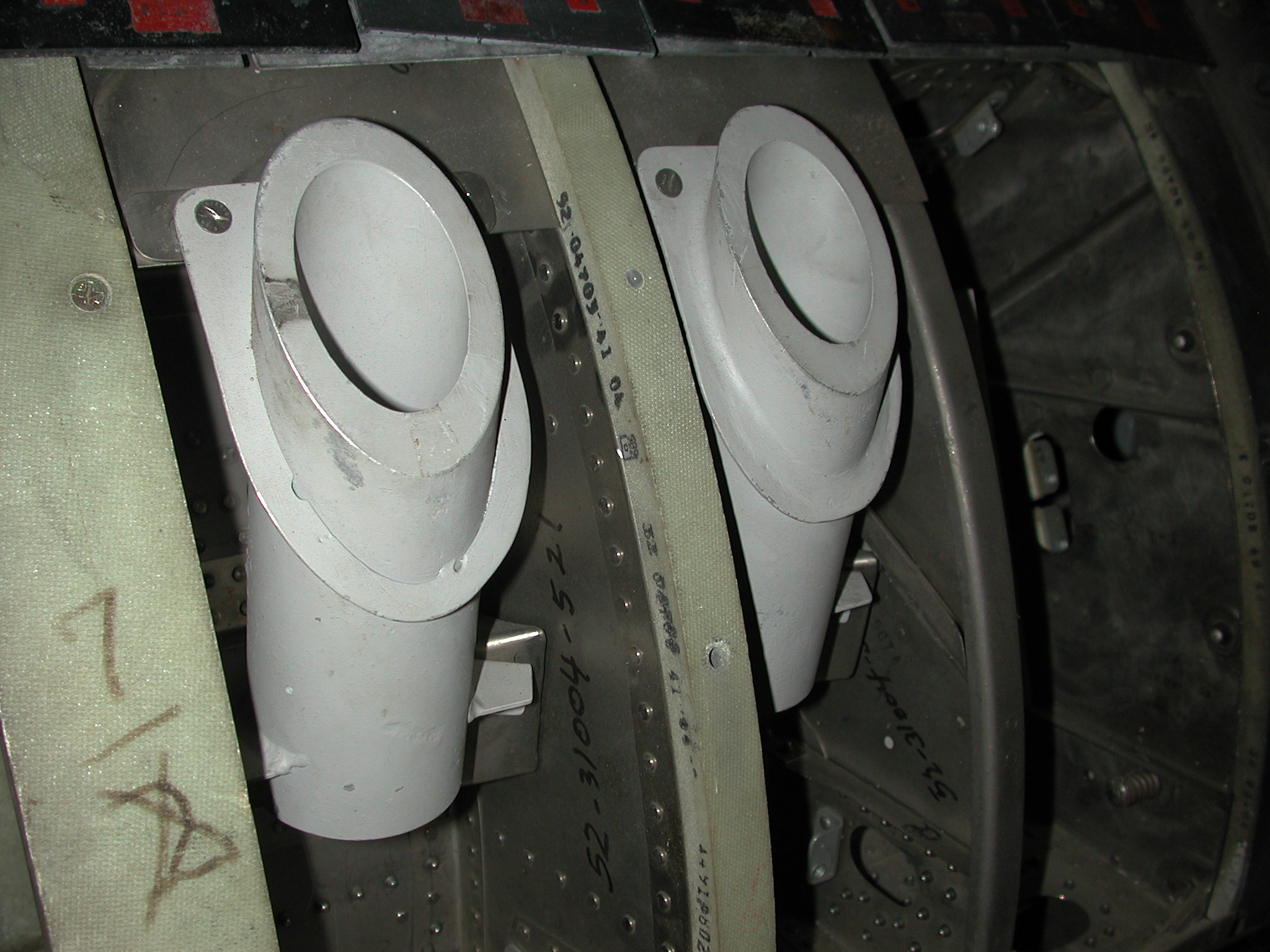

  • Removed pilot side forward RCS panel. Interior forward RCS section looks good. No signs of active corrosion. RCS engines are mockups. I have one flown RCS engine to reinstall.

  • All interior forward RCS insulation blankets have been removed prior to this restoration. It has been decided not to reinstall the insulation due to its condition and potential to attract moisture.

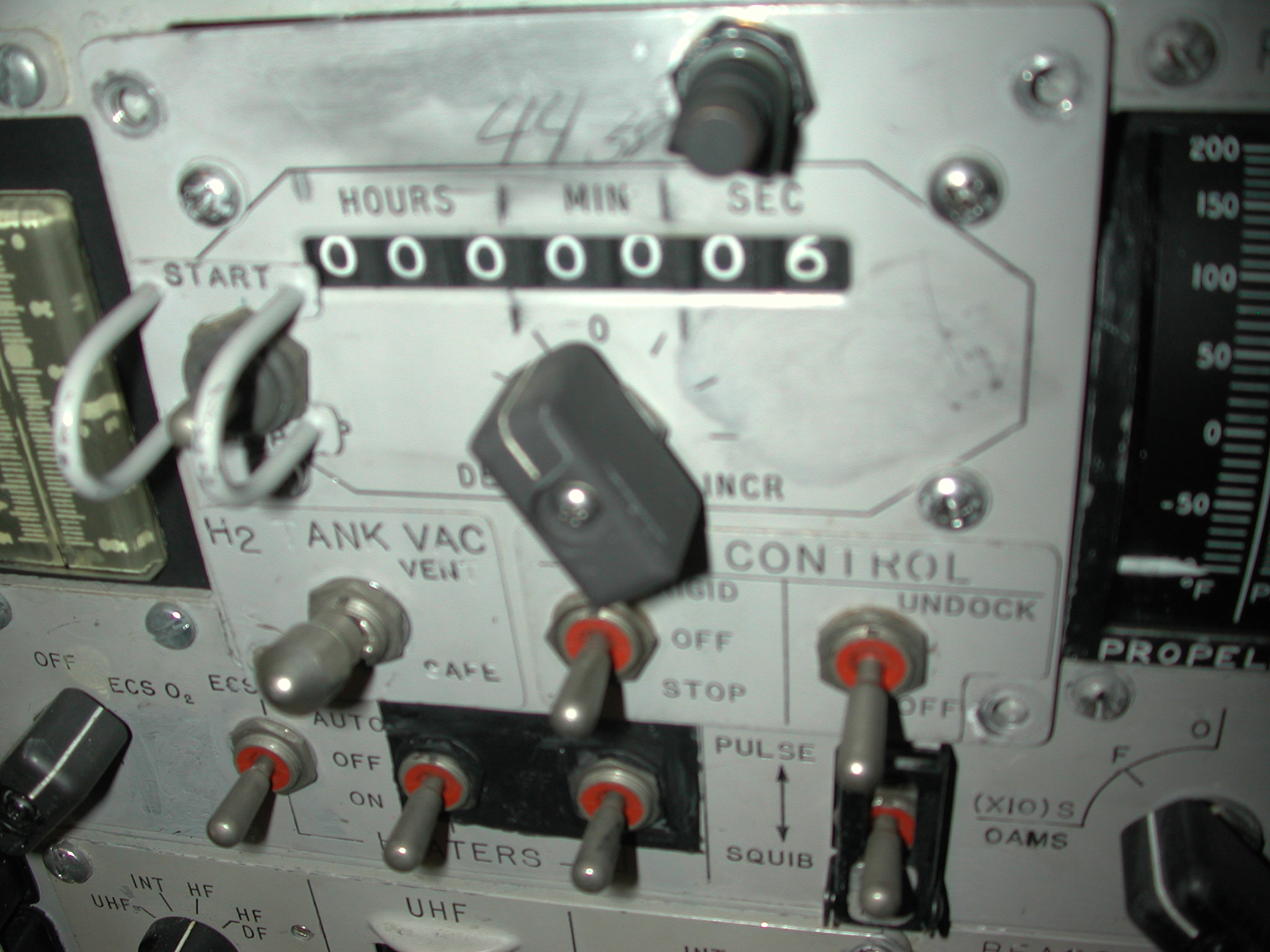

  • Continued to reinstall flown hardware. Reinstalled air flow pane; ENCR Timer; circuits (drogue parachute circuits/ECS circuits); switch covers.

December 8, 2003


hi-res

hi-res

hi-res

  • Inspected hatch, again no reappearance of corrosion. Will clean the hatch one more time.

  • Interior hatch window needs to be reinstalled.

  • Removed final mockup hardware from interior.

  • Removed three shingles from pilot side of spacecraft to inspect the super structure of the craft. Interior super structure/skeleton in very good condition, no signs of corrosion.

  • All interior insulation had been removed prior to this restoration.

  • Began to reinstall flown hardware back into spacecraft. Reinstalled the pedestal panel; cabin temperature control knob; several overhead switches and circuits; command side drogue and parachute switches; pilot side encoder controller; waste management hardware; interior cabin mirrors.

  • Will continue to install hardware, gauges, switches and circuits, as well as interior insulation blankets.

  • Once all hardware is reinstalled, I will clean the interior of the spacecraft. After the interior is cleaned, the pilot side hatch will be reinstalled.

  • The final step in the restoration will be the total cleaning of the exterior of the spacecraft.

December 5, 2003


hi-res

hi-res

hi-res

hi-res

  • Continued to remove mockup hardware.

  • Finished cleaning corrosion from pilot hatch. Noticeable difference from pre-cleaning of hatch and post-cleaning.

  • Will let the hatch set to see if corrosion reappears.

December 4, 2003


hi-res

hi-res

hi-res

hi-res

  • Finished removing the plexi covering. Smell of off gassing is no longer present.

  • Began to remove corrosion from Pilot hatch. Cleaning with hatch with mineral spirits. Dirt and corrosion coming off nicely.

  • Began to remove interior mockup hardware.

October 24, 2003


hi-res

hi-res

hi-res

hi-res

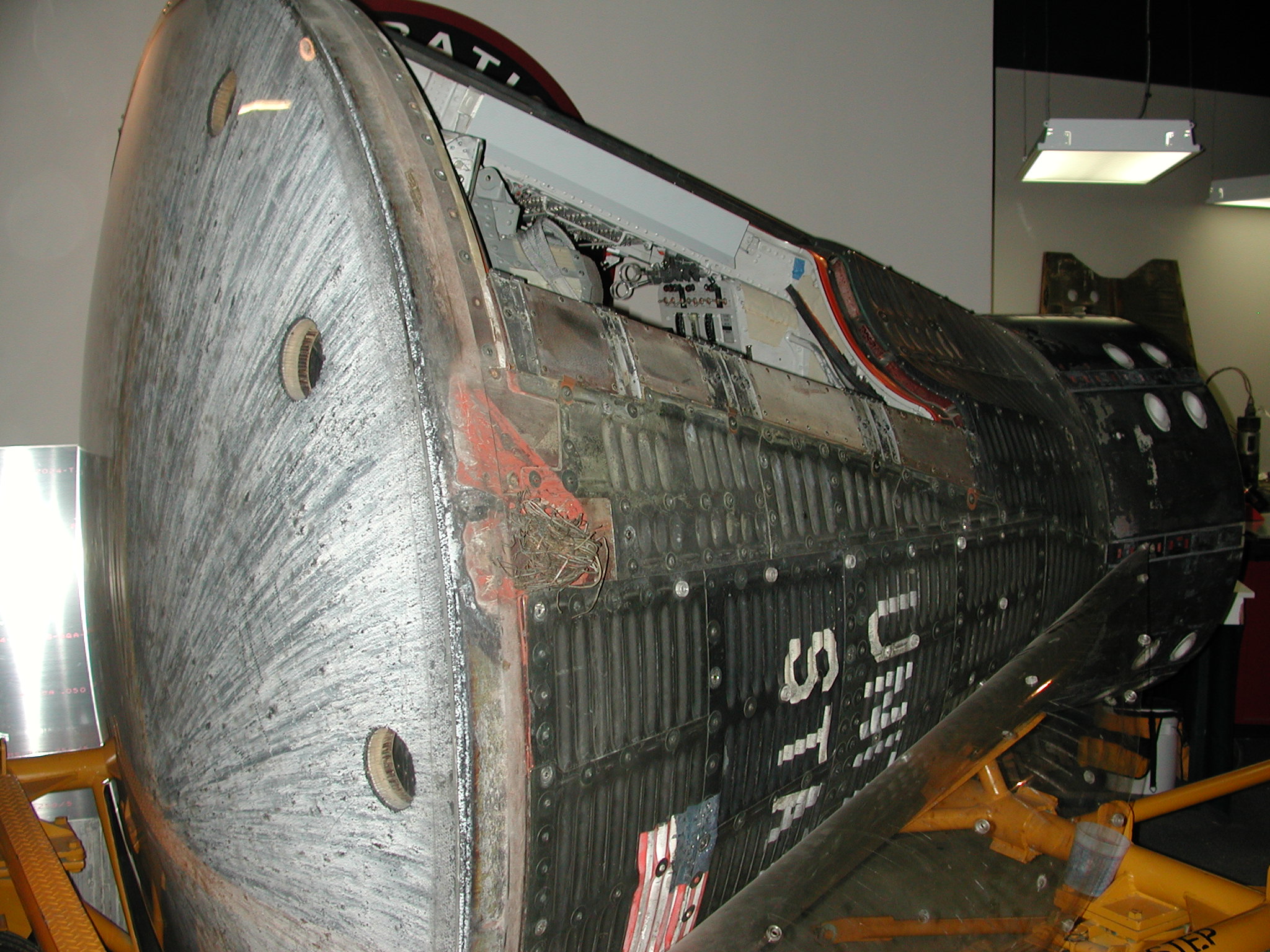

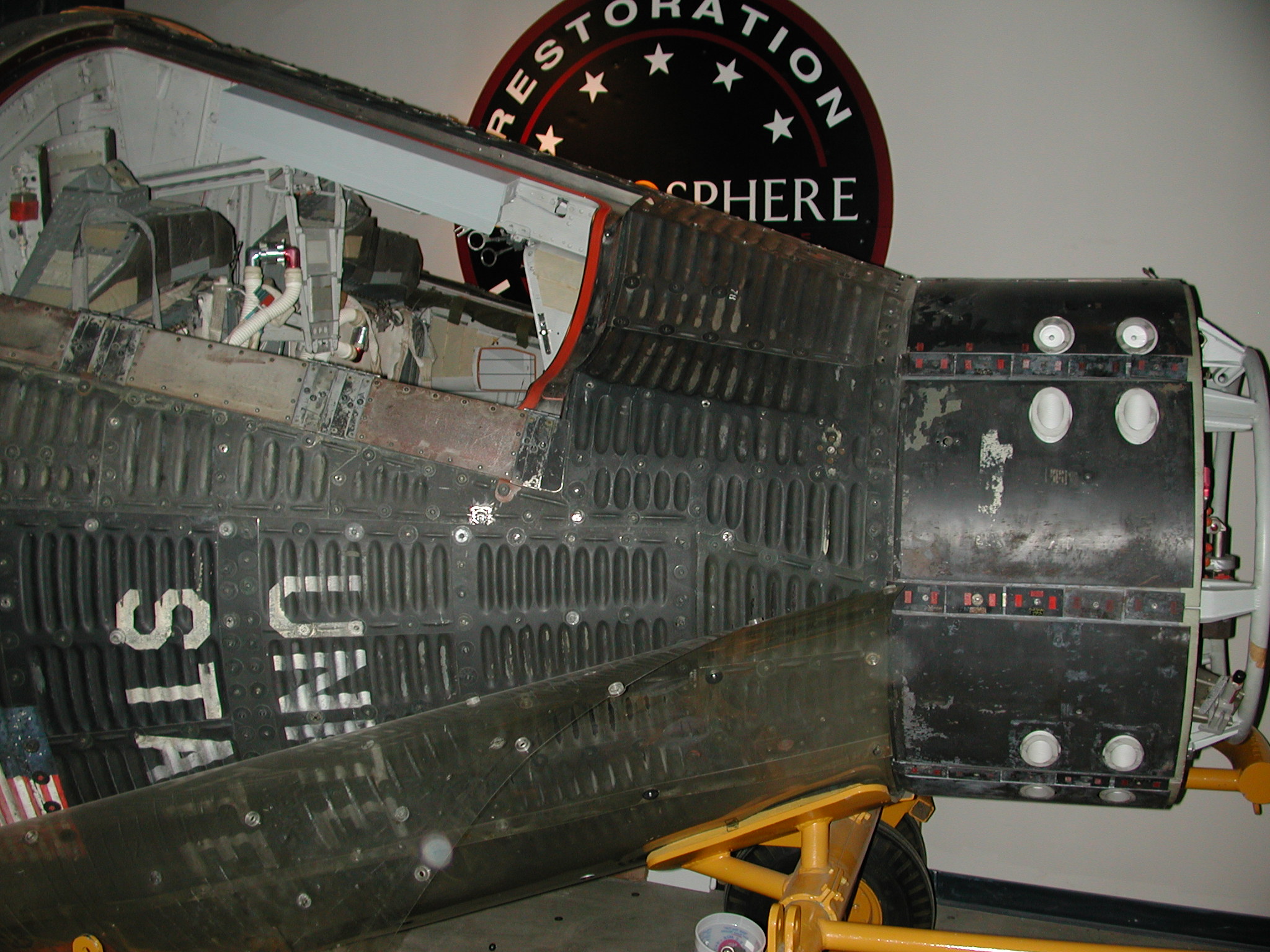

  • Began removing protective plexi covering. Very strong smell of off gassing.

  • Conducted an initial analysis of spacecraft. Overall in good condition. Pilot side hatch has more corrosion than anticipated.

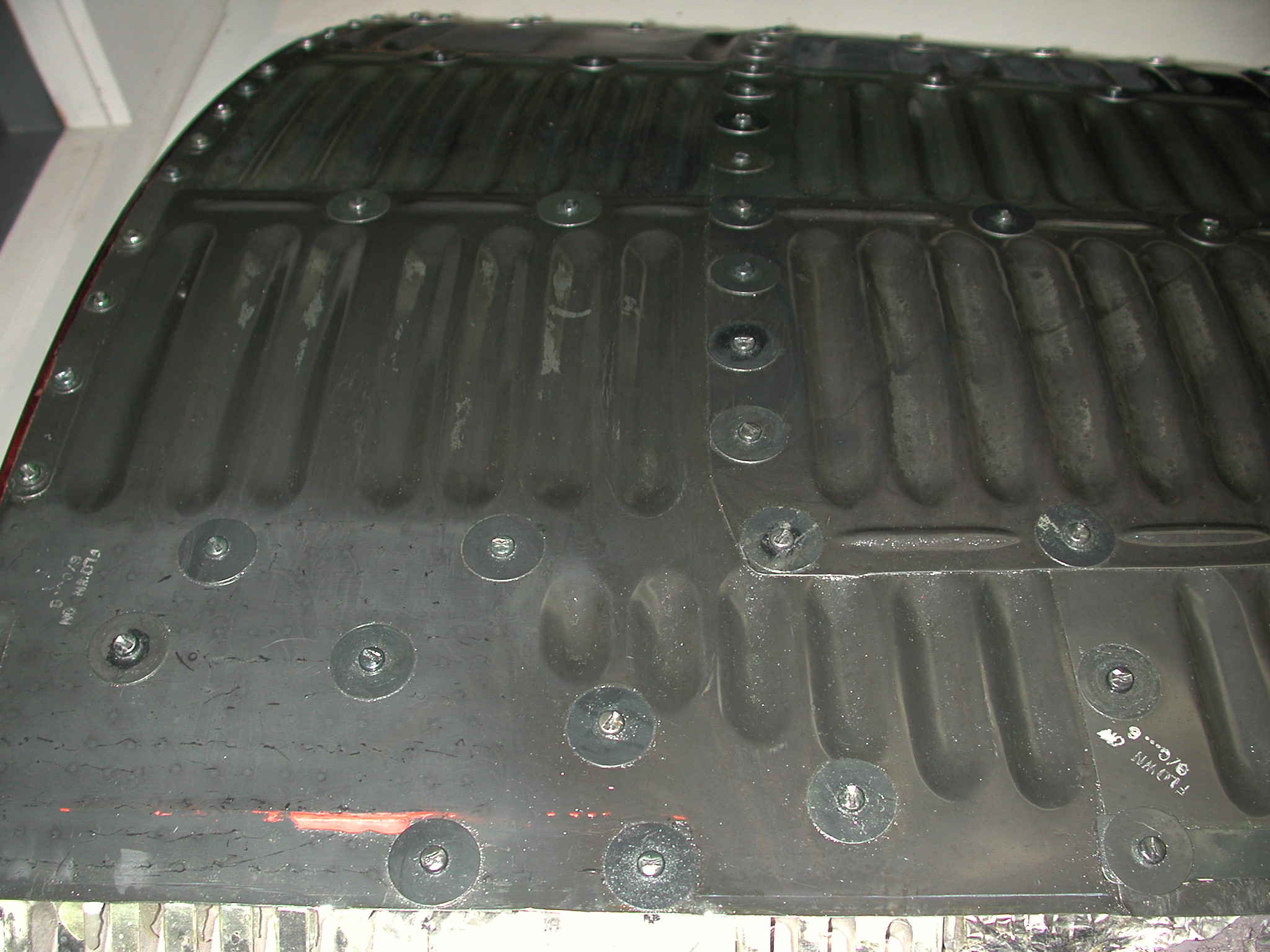

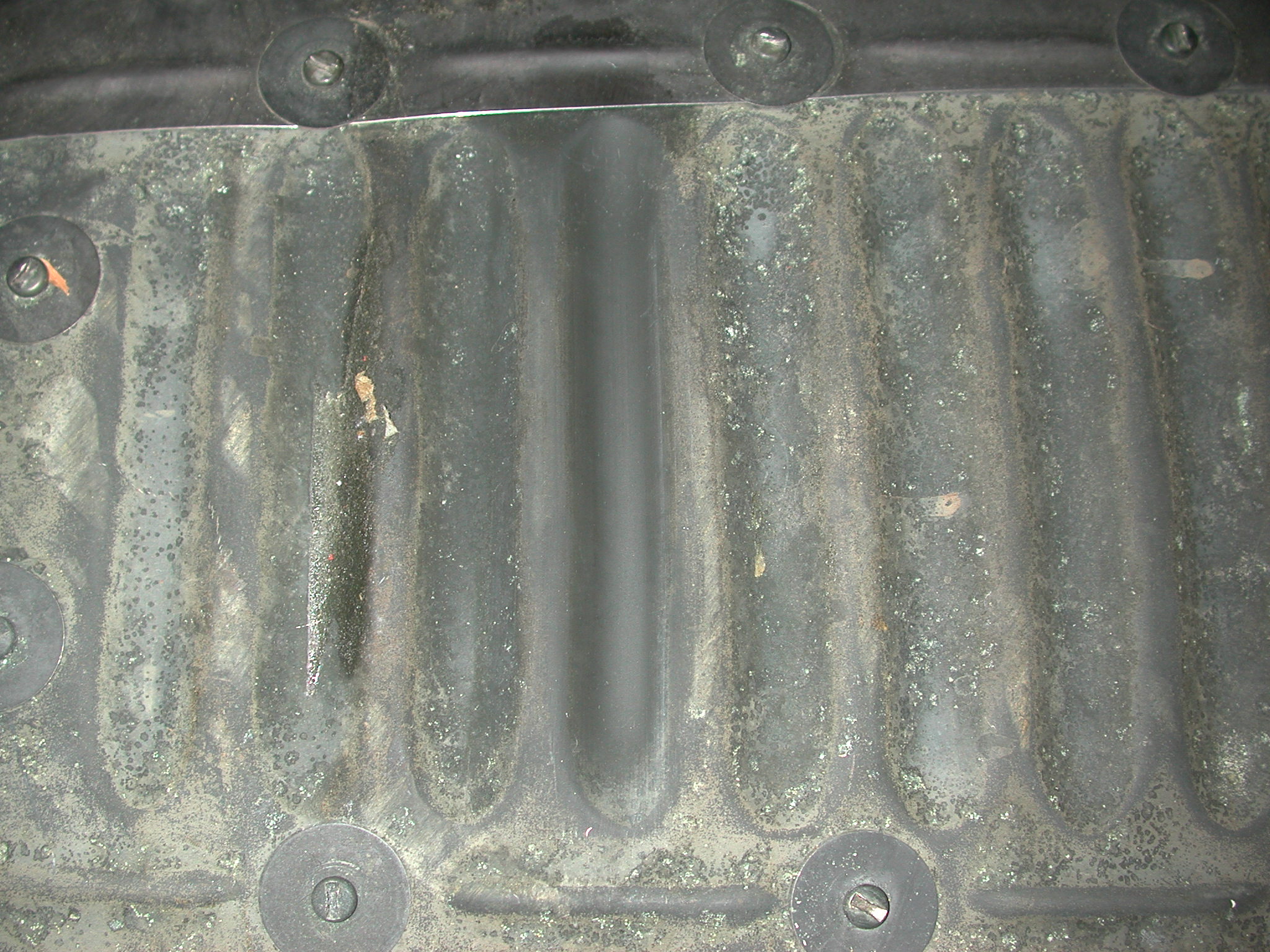

  • Overall, the exterior of the capsule is very dirty. There is some corrosion. The majority of this is probably a result of the protective plexi cover (dust build-up in groves of shingles is great). The exterior of the spacecraft will need a great deal of cleaning.

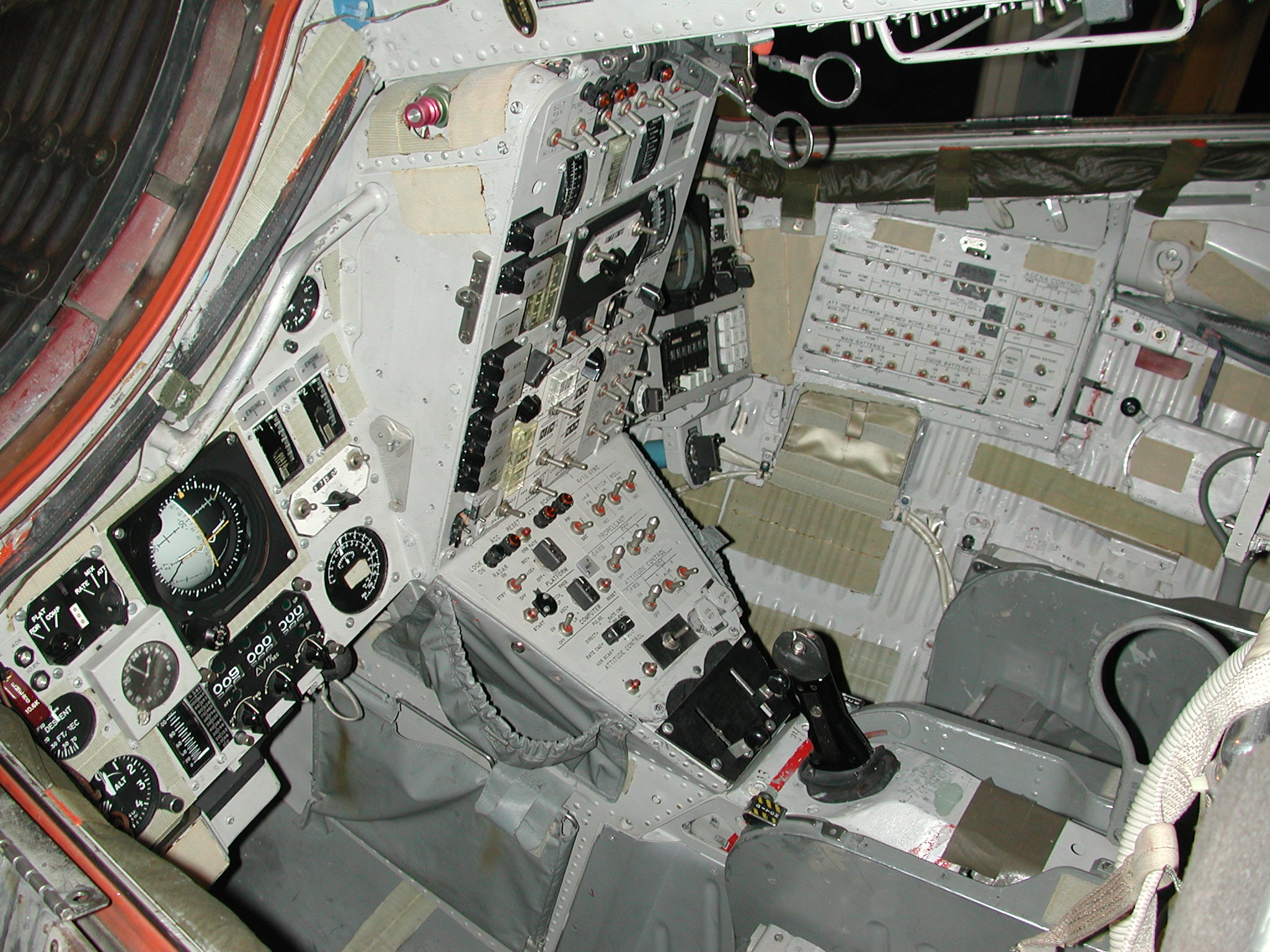

  • The interior is dirty and full of dust. More mockup hardware than first thought.


Future journal entries will be posted as progress demands.

Jim Remar is the Director of Collections, Exhibits and Buildings, for the Kansas Cosmosphere and Space Center.
