External tank lifted into place for space shuttle Endeavour exhibit

January 13, 2024

— NASA's last-remaining, built-for-flight space shuttle external tank finally took to the sky, albeit for only two brief hops above Los Angeles.

In what was originally planned as an overnight move but extended into a two-day process due to wind concerns and added caution, External Tank-94 (ET-94) was taken aloft by two large cranes and lowered in front of and then between two solid rocket boosters such that together with the soon-to-follow orbiter Endeavour, the stack will form the world's only fully-authentic, upright space shuttle. The resulting 20-story-tall display will be the centerpiece of the California Science Center's Samuel Oschin Air and Space Museum when it it opens in the next few years.

"With the mating of ET-94 to the Solid Rocket Boosters, we have successfully completed a giant undertaking and the largest part of the space shuttle stack," Jeffrey Rudolph, president and chief executive officer of the California Science Center, said in a statement. "With this penultimate step, heartfelt appreciation goes out to our remarkable team whose dedication has made every stage of this complex and unprecedented operation a reality."

Unable to wait until the new building is complete to move the shuttle in — the vehicle is just too large — the science center has been proceeding with a multi-part stacking process that is not unlike what was done within NASA's Vehicle Assembly Building in Florida, but conducted outside, where the components are subject to the elements. To reduce the chance that wind gusts could start the 154-foot-long (47-meter) orange tank swaying, the team executing the "Go for Stack" effort scheduled the lift to the overnight hours between Thursday and Friday.

Even with that precaution, though, the winds were still a concern as the planned start drew near. A winter storm brought strong gusts to parts of Southern California on Thursday morning and although they gradually diminished into the afternoon, the team was on alert.

Waiting until conditions were acceptable, two cranes began to hoist the 65,000-pound (29,500-kilogram) tank from its horizontal position at around 3:00 a.m. PST (1100 GMT or 6:00 a.m. EST). Gradually, the tank was rotated into the vertical and then a single large crane raised ET-94 high enough to clear the partially-erected walls of the new air and space center.


Views from "Go for Stack". Click to enlarge in new pop-up window. (California Science Center)

The tank was then set down in front of the two 149-foot-tall (45-meter) solid rocket boosters and their surrounding scaffolding, as it was now daytime and the winds were starting to pick up again. A decision was made to take a break, give the team a chance to rest and resume the second and last part of the lift on Friday night.

Waiting again until after nightfall, a crane raised the tank and then slowly lowered it between the twin rockets. A laser projected from below helped guide the tank in as workers positioned on the scaffolding stood ready to "soft mate" ET-94 to each booster using the same attach points that held the hardware together for a launch.

"The ET and SRBs have eight attach points," Dennis Jenkins, a veteran NASA space shuttle engineer and the project manager for the California Science Center's Endeavour display, sad in an interview with collectSPACE. "The two forward attach points are the primary structure, one on each side. Then there are three struts on each side, so six struts total at the bottom that keep it essentially straight. They do not really take much load, but they are the ones that keep the tank aligned with the boosters."

"The forward points are secured by nuts and bolts. The struts are all pinned. The pins are a couple of inches in diameter, so they are big pins," said Jenkins.

Stacking the external tank brought to close a journey for ET-94 that began with the loss of the space shuttle Columbia in 2003. The tank had originally been slated to launch with Columbia on a science mission, but after the tragedy it became a test article for improving the design of the external tanks still being produced and aided in early studies for the core stage of the Space Launch System (SLS).

In 2015, two years after making a brief cameo in the movie "G.I. Joe: Retaliation," doubling as a missile, ET-94 was awarded to the California Science Center for use with Endeavour's future exhibit. A year later, the tank was loaded onto a barge at the Michoud Assembly Facility in New Orleans for a five-week, 5,000-mile (8,000-kilometer) voyage that delivered it to Los Angeles by way of the Panama Canal.

Off-loaded onto a transporter at Marina del Rey, ET-94 then embarked on a 19-hour road trip to the California Science Center. There, the tank sat, positioned alongside the pavilion built to house Endeavour, where it periodically was worked on to install hardware and apply new insulation while it waited for its lift into place.

Up next (quite literally) will be Endeavour. Recently enveloped in shrink wrap to prevent it from getting dirty, the winged orbiter will undergo a similar move, lift and mate as ET-94 sometime in the coming weeks. Once assembled the stack will then wait to be configured for display as the Oschin Air and Space Center building is finished around and above it.




NASA's last-existing, built-for-flight space shuttle external tank, ET-94, is seen soon after being mated with two solid rocket boosters to form the backbone of the space shuttle Endeavour exhibit inside the new Samuel Oschin Air and Space Center under construction in Los Angeles, Saturday, Jan. 13, 2024. (California Science Center)

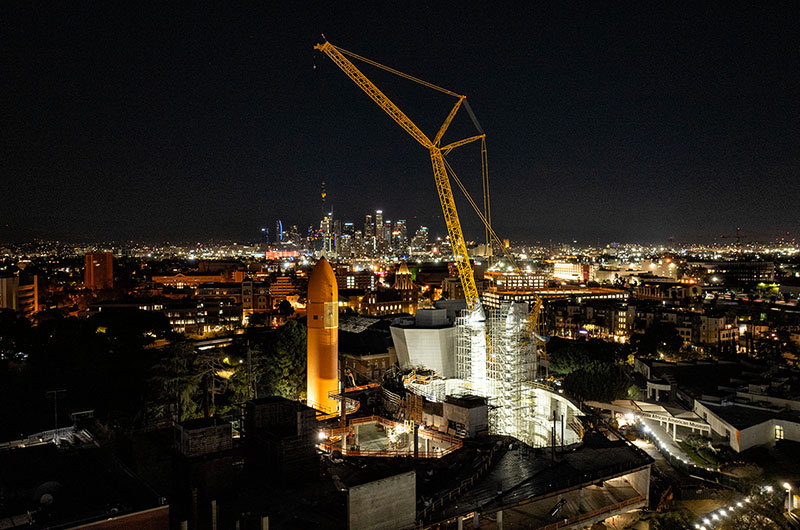

External Tank-94 is lowered by crane into the construction site of the California Science Center's new Samuel Oschin Air and Space Center as space shuttle Endeavour, covered in shrink wrap, waits to be similarly lifted and stacked. (Matt Hartman/Shorealone Films)

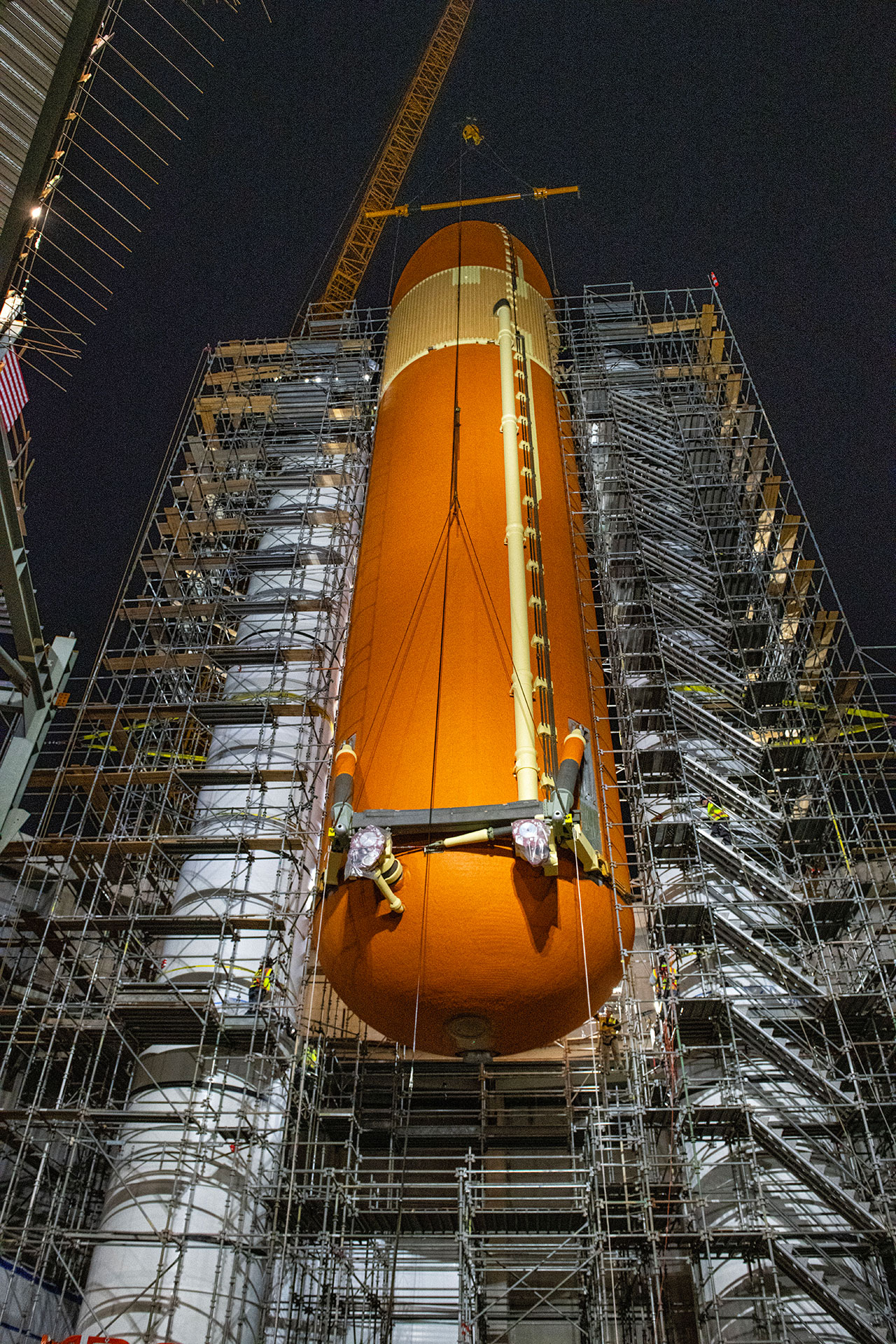

With laser-guided precision, a crane lowers External Tank-94 (ET-94) between two solid rocket boosters and their support scaffolding as the California Science Center's "Go for Stack" effort continues in Los Angeles, Saturday, Jan. 13, 2024. (California Science Center)

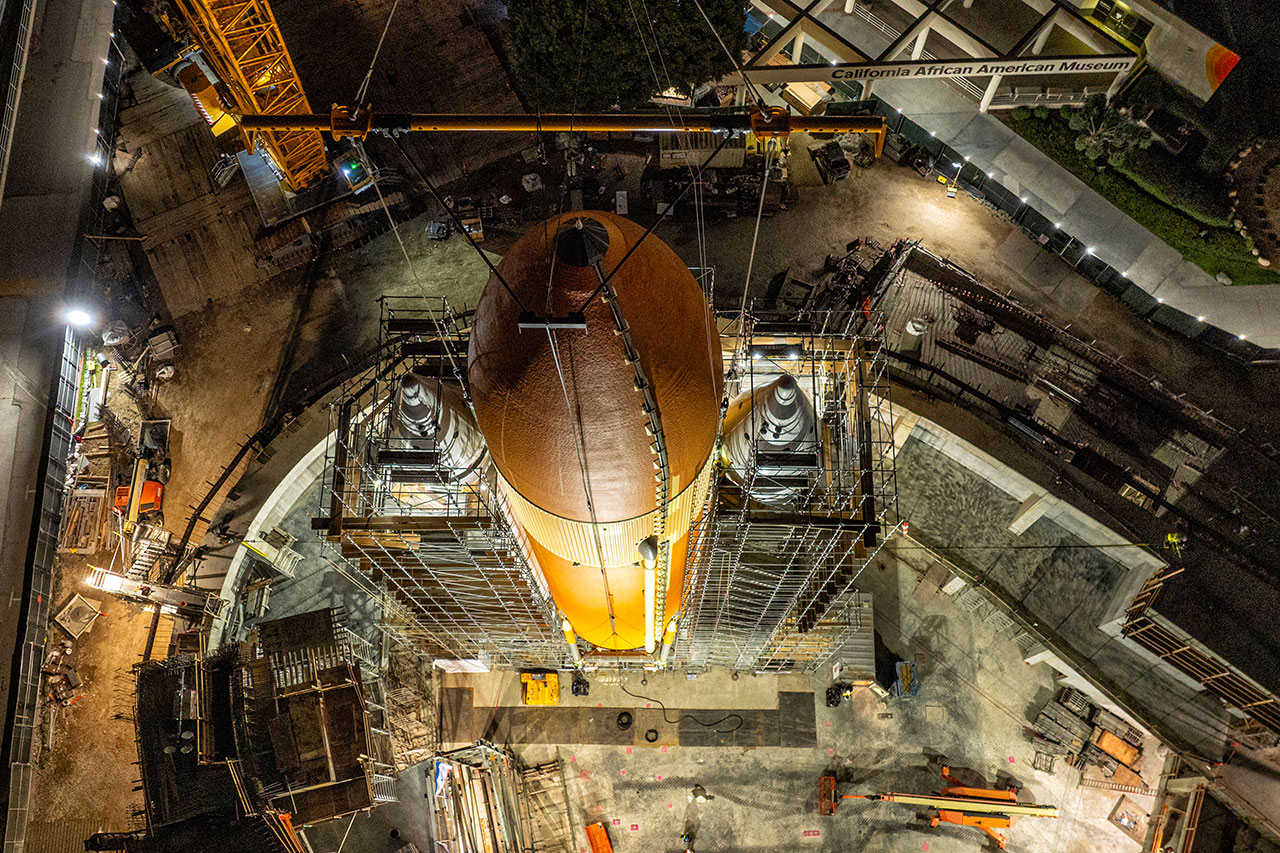

Top down view of External Tank-94 (ET-94) being lowered between two rocket boosters on Jan. 13, 2024. (California Science Center)



ET-94, NASA's last-existing built-for-flight space shuttle external tank, takes to the sky assisted by two cranes for placement in the construction site for the California Science Center's new Samuel Oschin Air and Space Center on Friday, Jan. 12, 2024. (California Science Center)

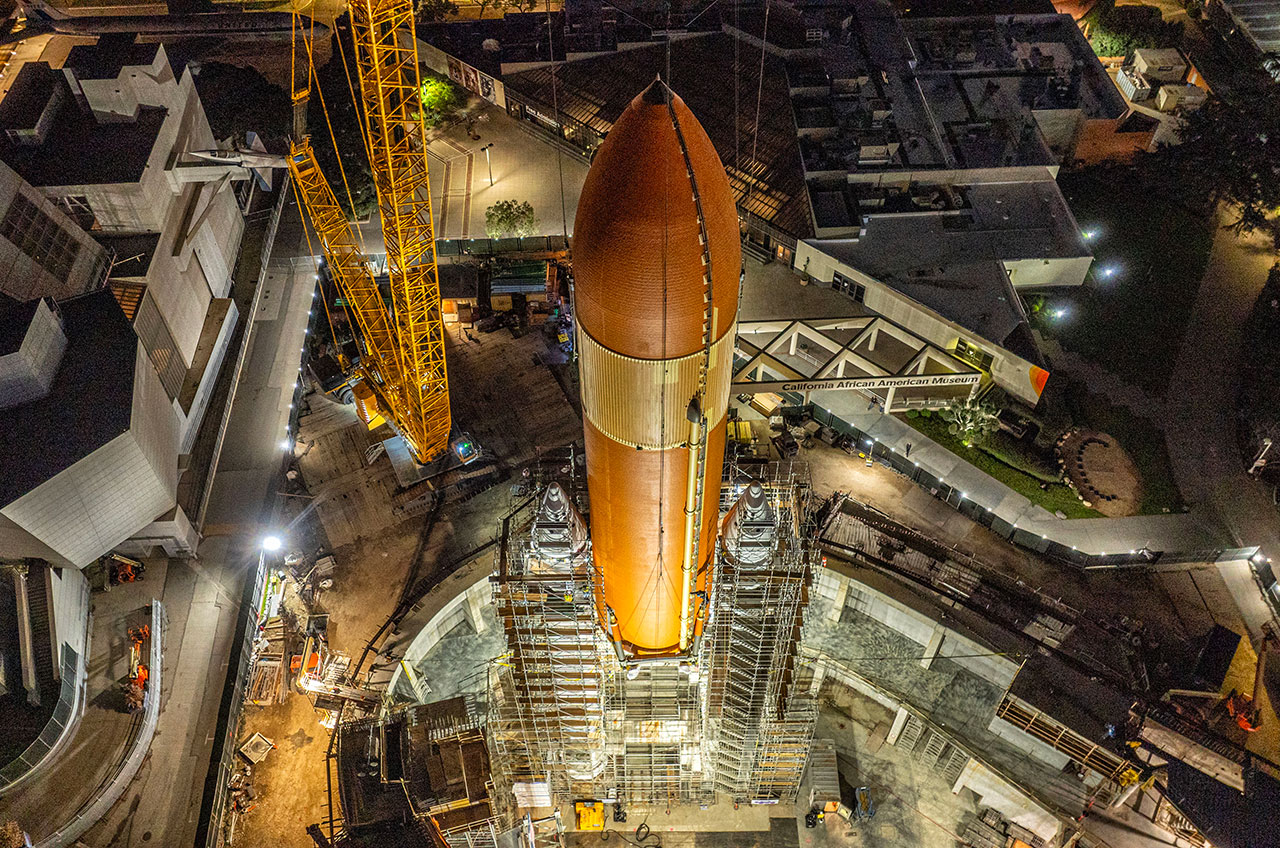

An aerial view captures the Los Angeles skyline in the distance as ET-94, NASA's last-existing built-for-flight space shuttle external tank, is hoisted by crane into the work site for the California Science Center's Samuel Oschin Air and Space Center on Friday, Jan. 12, 2024. (California Science Center)

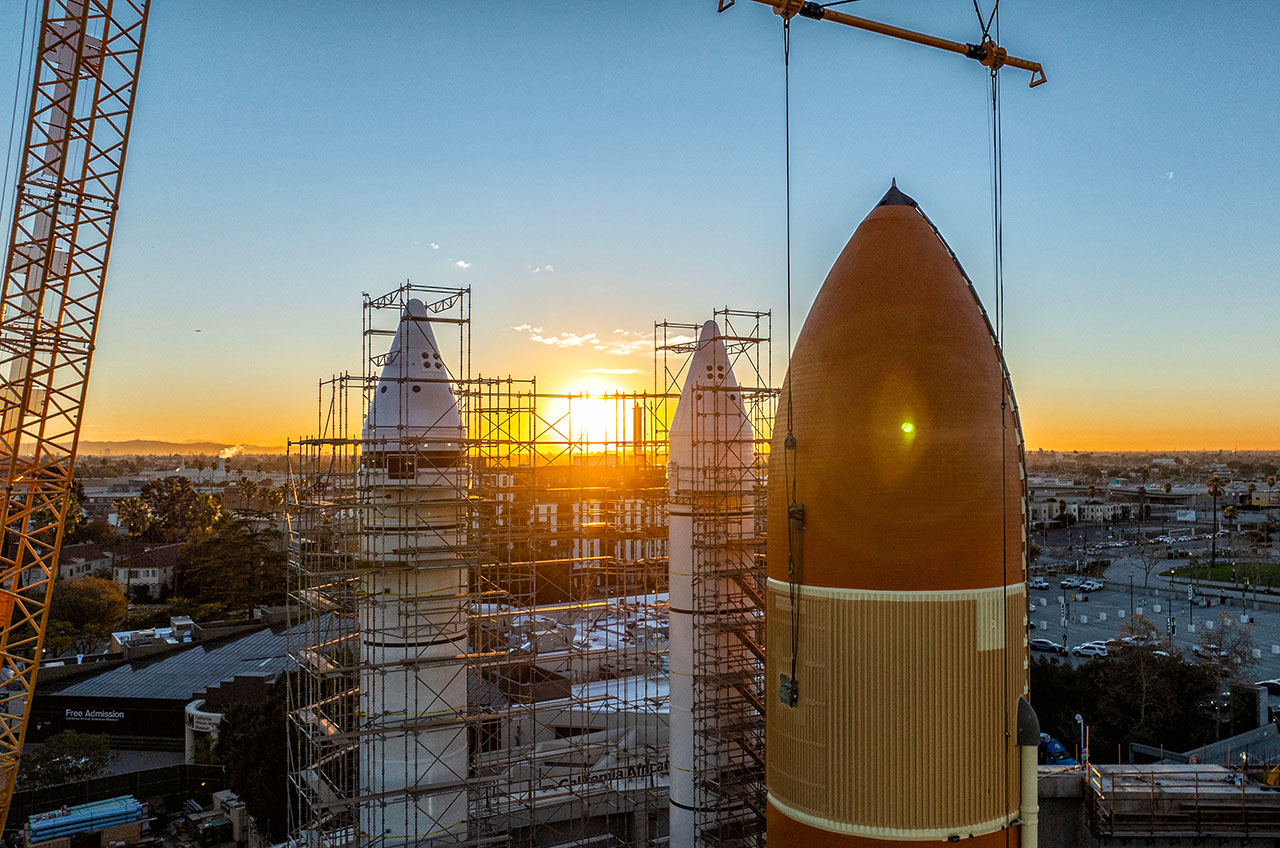

As dawn breaks on Friday, Jan. 12, 2024, External Tank-94 (ET-94) is seen suspended from a crane in front of the two solid rocket boosters it will next be mated to as part of the California Science Center's new space shuttle Endeavour exhibit. (California Science Center)

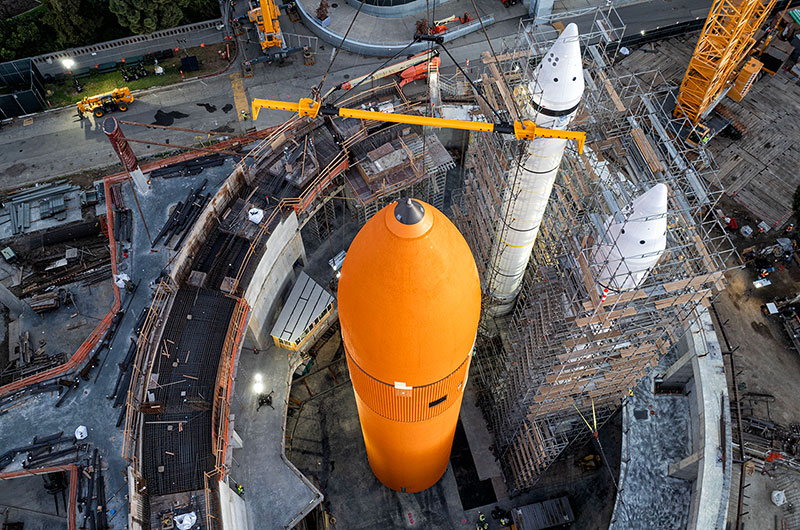

Aerial view of External Tank-94 (ET-94) as it is suspended from a crane in front of the two solid rocket boosters it will be mated to as part of the space shuttle Endeavour exhibit in the California Science Center's Samuel Oschin Air and Space Center, Friday, Jan. 12, 2024. (California Science Center)



Views of External Tank-94 (ET-94) being raised above and then lowered between two solid rocket boosters as part of the California Science Center's new space shuttle Endeavour exhibit in the future Samuel Oschin Air and Space Center, Saturday, Jan. 13, 2024. (Matt Hartman/Shorealone Films)



Just as was done inside NASA's Vehicle Assembly Building in Florida, ET-94, the last-existing built-for-flight space shuttle external tank, is lowered by crane between two solid rocket boosters to become the propulsion stack for display with the retired orbiter Endeavour. (California Science Center)



Aerial view of External Tank-94 (ET-94) mated with the twin solid rocket boosters that together with the orbiter Endeavour will form the world's only fully-authentic, vertical exhibit of a space shuttle stack. (California Science Center)
