NASA Signs Agreement for a European-Provided Orion Service Module

Orion is going international.

NASA signed an agreement in mid-December for the European Space Agency (ESA) to provide a service module for the Orion spacecraft's Exploration Mission-1 in 2017.

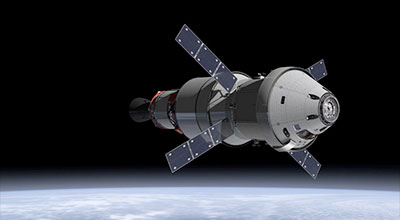

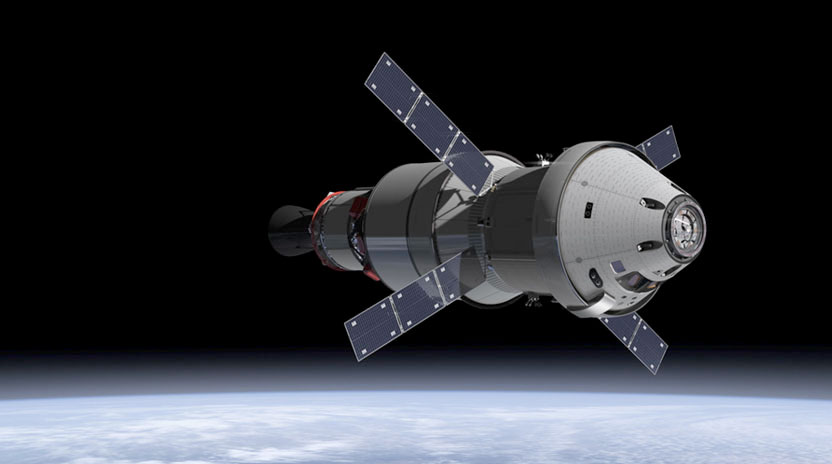

When the Orion spacecraft blasts off atop NASA's Space Launch System rocket in 2017, attached will be the ESA-provided service module - the powerhouse that fuels and propels the Orion spacecraft.

"Space has long been a frontier for international cooperation as we explore," said Dan Dumbacher, deputy associate administrator for Exploration System Development at NASA Headquarters in Washington. "This latest chapter builds on NASA's excellent relationship with ESA as a partner in the International Space Station, and helps us move forward in our plans to send humans farther into space than we've ever been before."

The agreement primarily maps out a plan for ESA to fulfill its share of operational costs and additional supporting services for the International Space Station by providing the Orion service module and necessary elements of its design for NASA's Exploration Mission-1 in 2017.

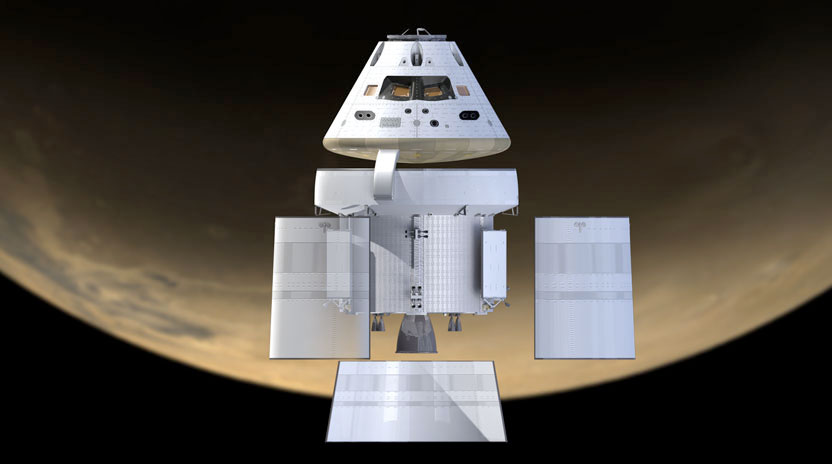

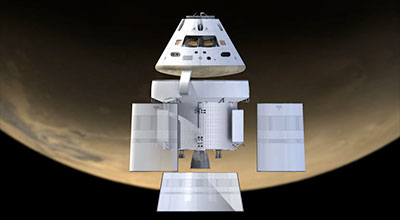

There are three major components to the Orion vehicle: the crew capsule, which will carry four astronauts into space on crewed flights and bring them home for a safe landing; the launch abort system, which would pull the crew module to safety in the unlikely event of a life-threatening problem during launch; and the service module, which will house Orion's power, thermal and propulsion systems. The service module is located directly below the crew capsule and will contain the in-space propulsion capability for orbital transfer, attitude control and high-altitude ascent aborts. It also will generate and store power and provide thermal control, water and air for the astronauts. It will remain connected to the crew module until just before the capsule returns to Earth.

"This is not a simple system" said Mark Geyer, Orion Program manager. "ESA's contribution is going to be critical to the success of Orion's 2017 mission."

Exploration Mission-1 in 2017 will be the first integrated flight test with both the Orion spacecraft and NASA's new Space Launch System. It will follow the upcoming Exploration Flight Test-1 in 2014, in which an uncrewed Orion will launch atop a Delta IV Heavy rocket and fly to an altitude of 3,600 miles above Earth's surface, farther than a human spacecraft has gone in 40 years. For the flight test, a test service module is being built by Lockheed Martin.

Exploration Mission-1 in 2017 will launch an uncrewed Orion spacecraft to demonstrate the performance of the integrated Space Launch System rocket and the spacecraft prior to a crewed flight. It will be followed by Exploration Mission-2, which will launch Orion and a crew of four astronauts into space.

"We have a lot to look forward to in the coming years with human exploration," Dumbacher said. "NASA is thrilled to have ESA as a partner as we set out to explore our solar system."

posted 11-18-2014 05:55 PM

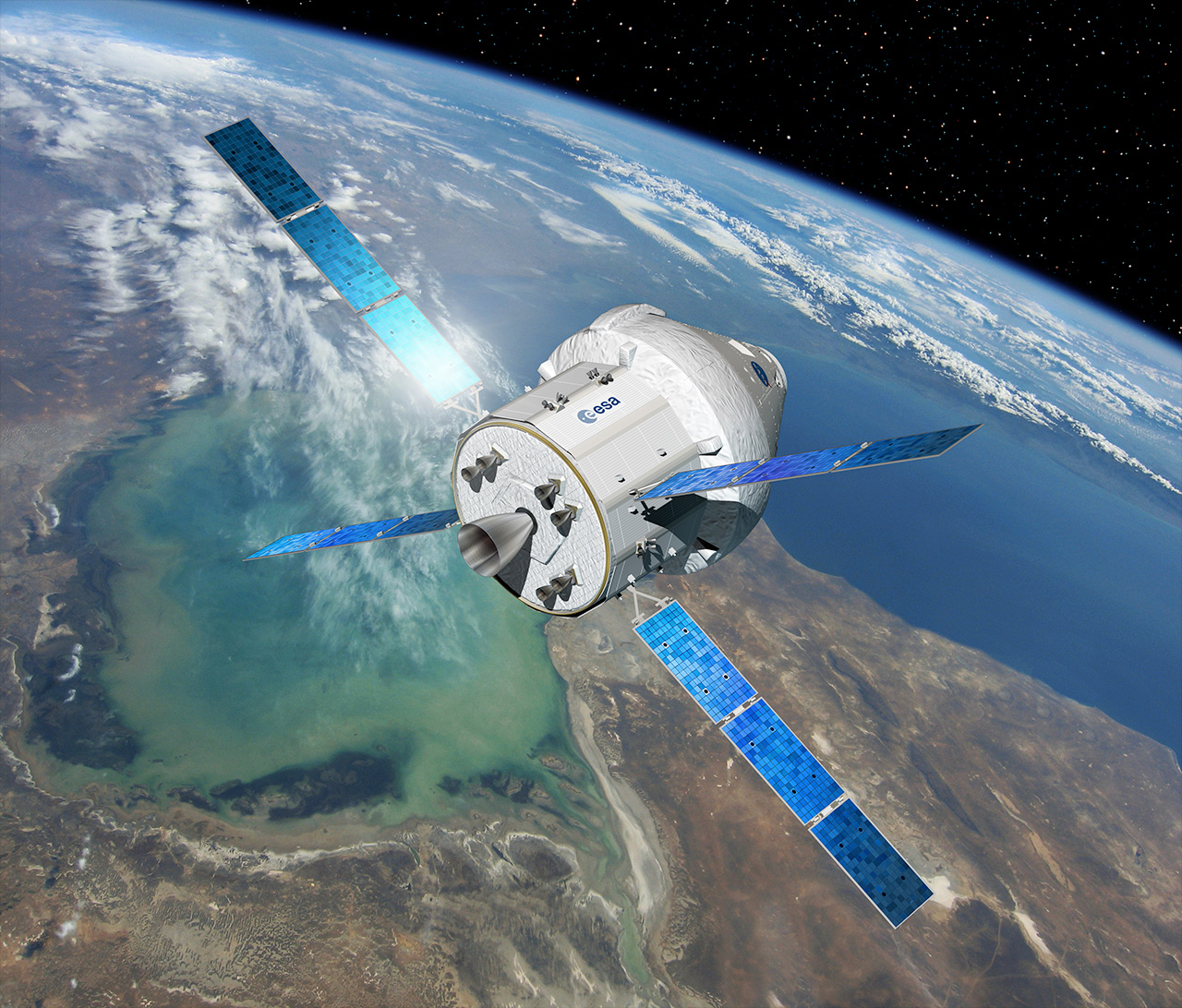

ESA commissions Airbus Defence and Space as prime contractor for US space capsule Orion service module

Airbus Defence and Space, the world's second space company, has signed a contract with the European Space Agency (ESA) for the development and construction of the service module for Orion, the future American human space capsule. The contract is worth around 390 million euros. The service module will provide propulsion, power supply, thermal control and the central elements of the life support system of the American capsule.

The contract was signed Nov. 17 in Berlin (Germany), in the presence of Brigitte Zypries, Parliamentary State Secretary at the Federal Ministry for Economic Affairs and Energy and Federal Government Coordinator of German Aerospace Policy.

It is the first time that Europe has been involved in providing system-critical elements for an American space project. In December 2012, US space agency NASA and ESA had agreed to certify the new US Orion spacecraft in conjunction with the European service module. This module is based on the design of and the experience gained from the Automated Transfer Vehicle (ATV) developed and constructed by Airbus Defence and Space on behalf of ESA as a supply craft for the International Space Station.

"This follow-on contract is a mark of confidence in our expertise as well as in our ability to deliver reliable state-of-the-art space systems on time and within budget. Thanks to this programme and the continuous investments we make, we are able to maintain our technological lead," said François Auque, Head of Space Systems. "In the wake of the ATV's outstanding five flawless missions to the ISS, this programme is yet another example of the important role that Europe plays globally in the field of human space flight."

Once the system designs for the service module had been approved by the ESA in May 2014, the detailed definition phase began, parallel to the construction of the first hardware. This is set to be completed in November 2015, when ESA approves the detailed design. The qualification and production phases will then begin.

The intention is to use the Orion space capsule for human missions to the Moon, to asteroids and into the depths of space. Lockheed Martin Space Systems is developing and constructing the space capsule for four or more astronauts on behalf of NASA.

Planned for 2017/2018, the first Orion mission in which Europe is involved, "Exploration Mission 1", consists of an unmanned flight to the Lagrangian points of the Moon and a return to Earth. The aim of this mission is not only to demonstrate the spacecraft's performance capabilities before its human deployment, but also to achieve qualification for NASA's new Space Launch System rocket. As part of "Exploration Mission 2", Orion is then scheduled to be launched into space not earlier than 2020 with astronauts on board.

posted 11-10-2015 12:58 PM

Orion's European module ready for testing

A test version of ESA's service module for NASA's Orion spacecraft arrived in the US yesterday after leaving its assembly site in Italy last weekend.

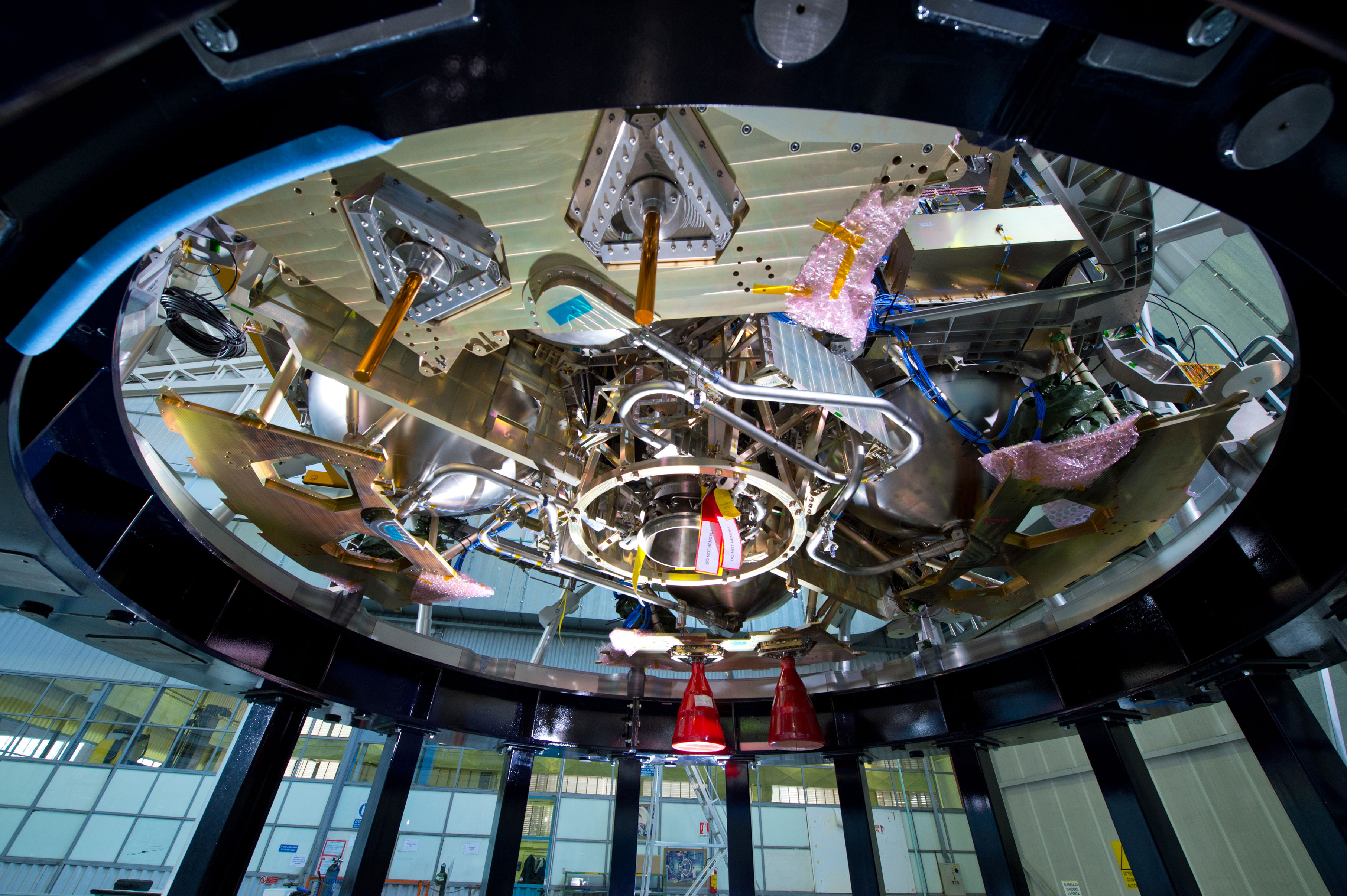

Above: A look at the propulsion side of the Orion European Service Module (ESM) structural test model. Airbus Defence and Space is preparing to deliver the ESM structural test model to NASA. The model is an exact copy of the flight model, only without the functionality.

The European Service Module is adapted from Europe's largest spacecraft, the Automated Transfer Vehicle, which completed its last mission to the International Space Station in February. Just nine months later, prime contractor Airbus Defence & Space in Bremen, Germany, has delivered the first test module.

The module sits directly below Orion's crew capsule and provides propulsion, power, thermal control, and water and air for four astronauts. The solar array spans 19 m and provides enough to power two households.

A little over 5 m in diameter and 4 m high, it weighs 13.5 tonnes. The 8.6 tonnes of propellant will power one main engine and 32 smaller thrusters.

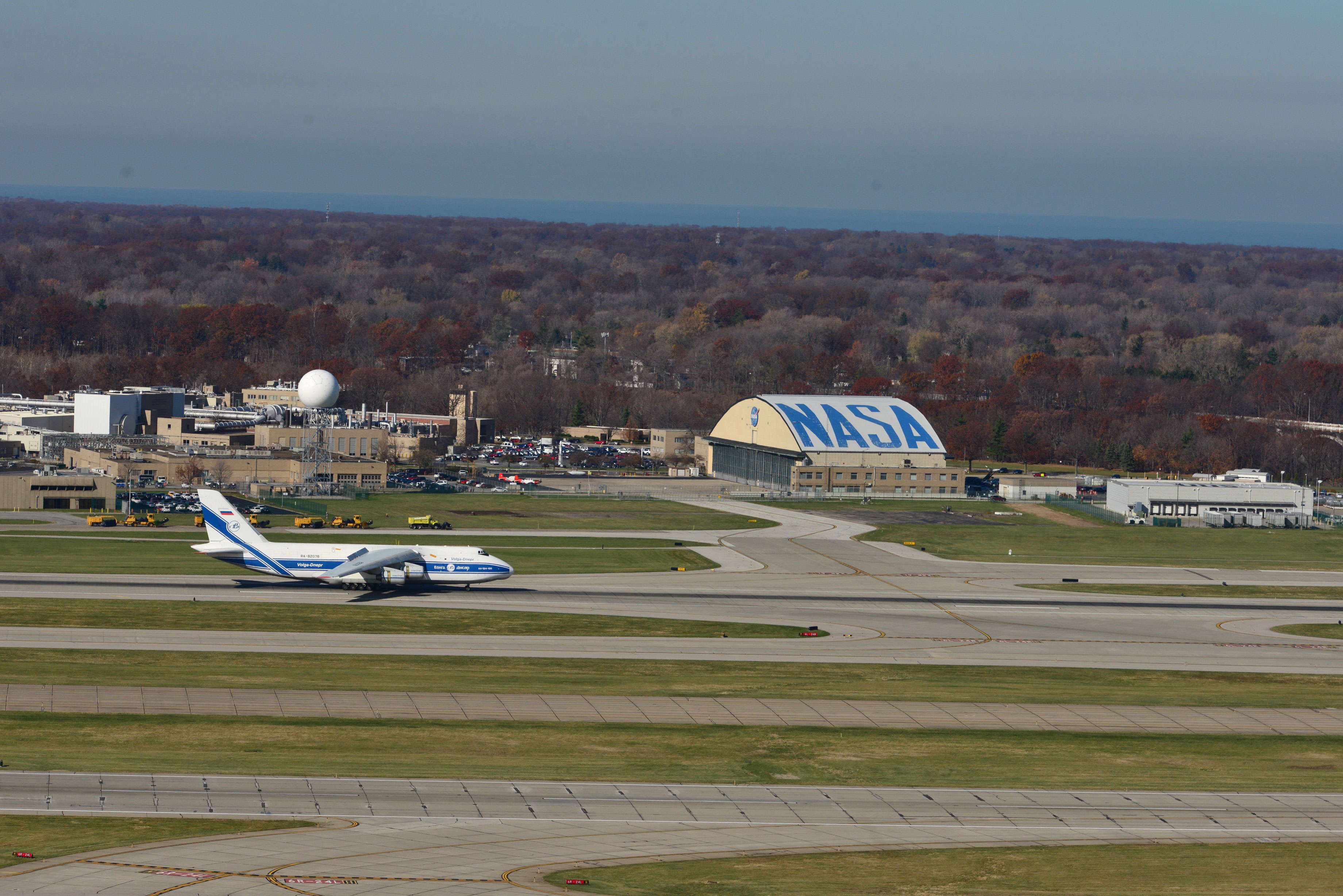

Above: A test version of ESA's service module for NASA's Orion spacecraft arriving at the Cleveland Hopkins airport in Ohio, USA before continuing by road to NASA's Plum Brook Station.

The structural test article delivered today was built by Thales Alenia Space in Turin, Italy. Following initial tests in Europe, it will now undergo rigorous vibration tests in NASA's Plum Brook Station in Ohio to ensure the structure and components can withstand the extreme stresses during launch.

"This is the first major element of the European Service Module to be delivered to the US," notes Philippe Deloo, ESA's programme manager, "demonstrating the commitment of ESA to this human exploration endeavour."

More than 20 companies around Europe are working on the project, most building on their expertise earned from the five Automated Transfer Vehicles that delivered cargo to the Space Station and reboosted its orbit from 2009 to 2015.

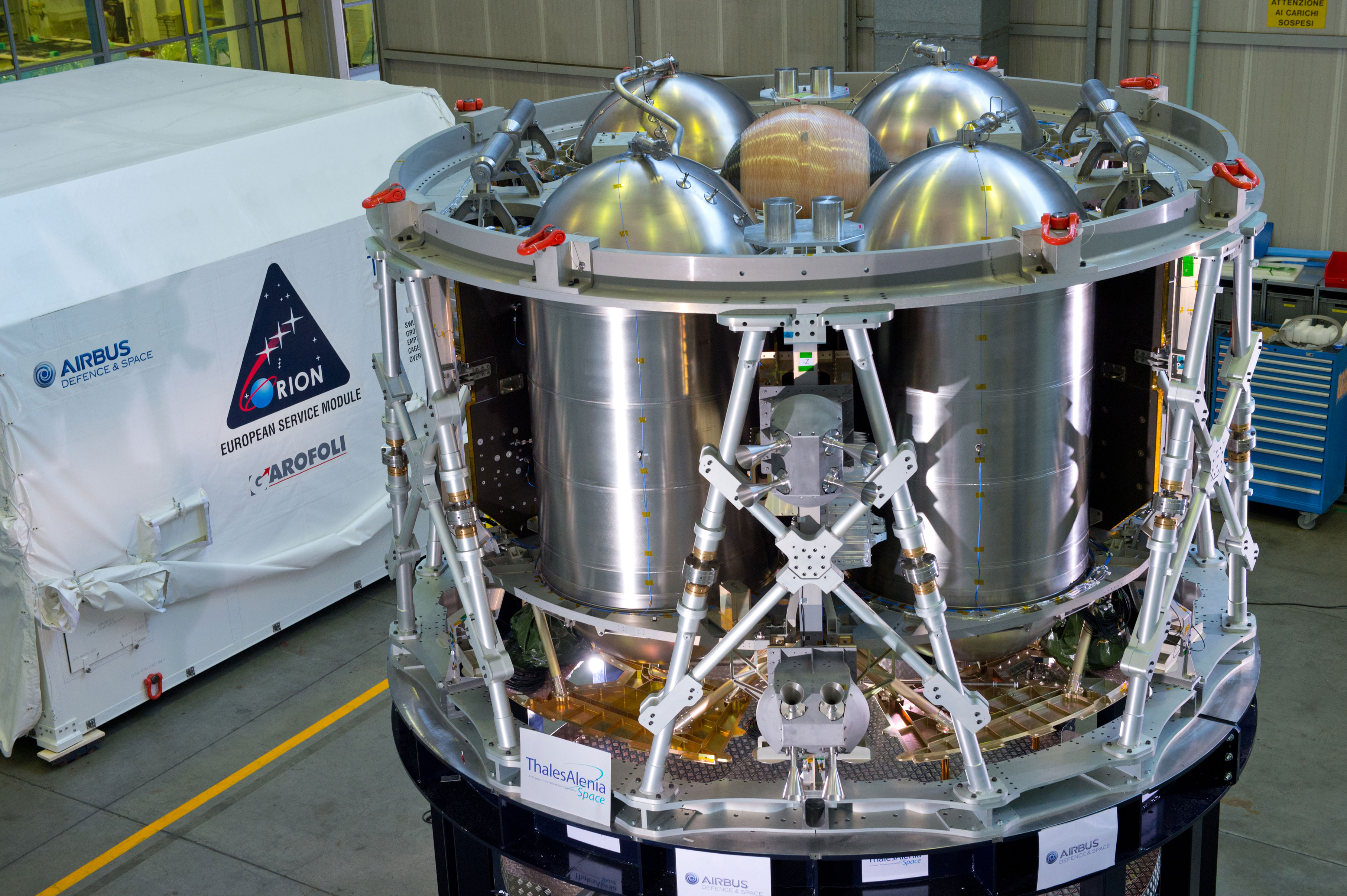

Above: A test version of ESA's service module for NASA's Orion spacecraft at Thales Alenia Space in Turin, Italy, before shipping to USA.

The first, uncrewed, launch of the full Orion vehicle is planned for 2018 with the first European Service Module. It will fly beyond the Moon and back, returning to Earth at higher speeds than any other previous spacecraft.

During the mission, the module will detach shortly before entry into Earth's atmosphere.

posted 06-28-2016 05:30 AM

Orion's Service Module Completes Critical Design Review

NASA and ESA (European Space Agency) conducted a critical design review (CDR) culminating in a final review board June 16 for Orion's European-built service module. The service module is an essential part of the spacecraft that will power, propel, and cool Orion in deep space as well as provide air and water for crew members. The CDR rounds out the latest in a series of reviews for the three human exploration systems development programs that will enable the journey to Mars.

During the review process, technical experts examined the module designs and numerous items were processed and closed out, giving engineers confidence the module design is mature enough to continue with fabrication, assembly, integration and testing.

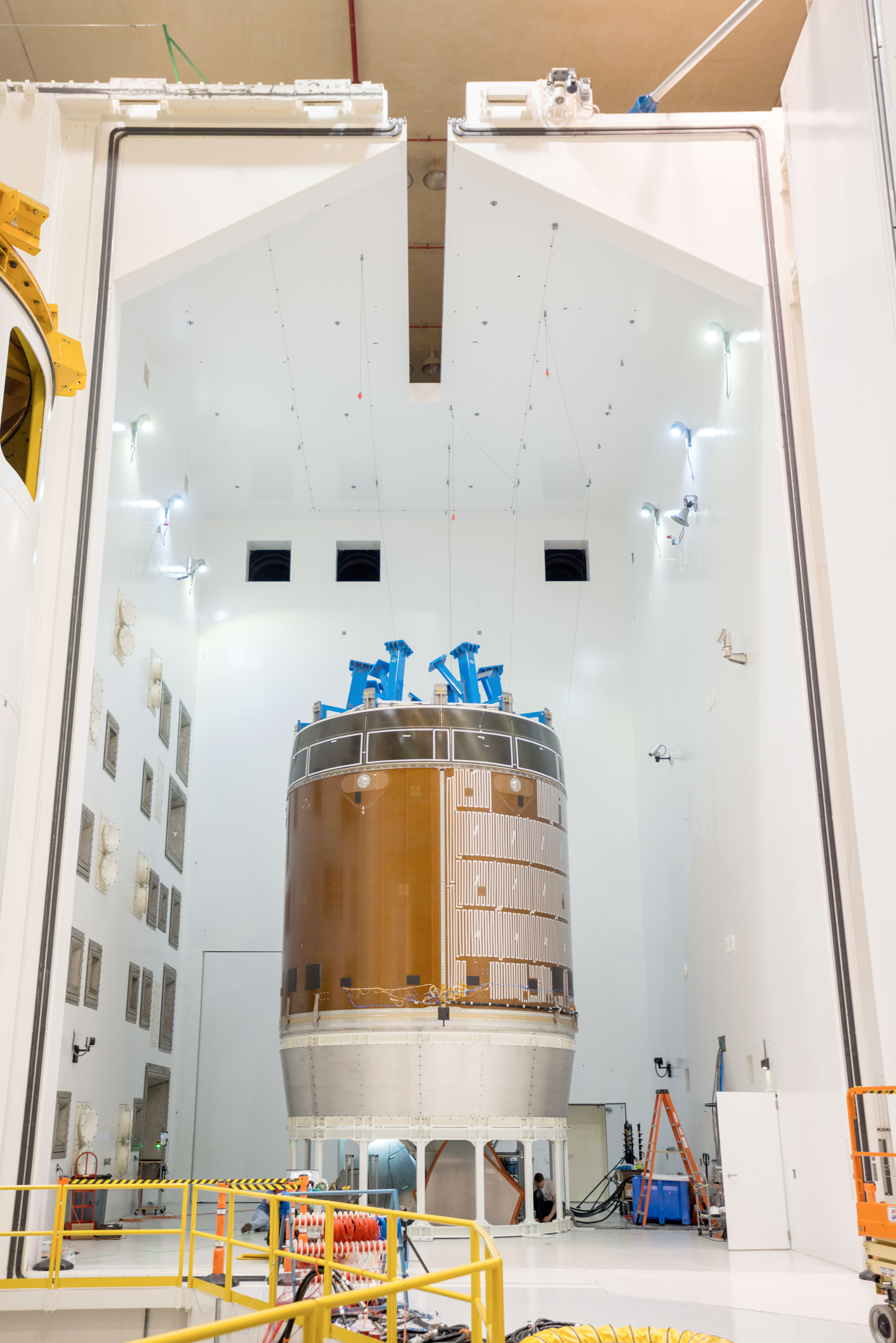

Above: A test version of the Orion service module as been undergoing acoustic and vibration testing at NASA Glenn’s Plum Brook Station in Sandusky, Ohio.

The recently completed review focused on the overall service module design while discussing differences between Orion's first deep space mission atop the Space Launch System (SLS) rocket and the mission to follow that will carry crew. No new major issues were identified during the review, and the teams worked together to develop a plan for work going forward in areas such as power, solar array management and propellant usage.

"The teams at NASA and ESA worked together successfully over the past few weeks to bring design decisions and required products to the CDR board," said William Gerstenmaier, associate administrator for NASA's Human Exploration and Operations Mission Directorate. "International collaboration is an important part of the effort NASA is leading to pioneer deep space."

The review was conducted at ESA's European Space Research and Technology Centre in Noordwijk, Netherlands with teams from NASA, ESA, Lockheed Martin and Airbus Defence & Space in Bremen, Germany. Lockheed Martin is NASA's main contractor building Orion, and Airbus is ESA's contractor for the service module.

"This was a tremendous effort on the part of the team from both sides of the Atlantic," said James Free, deputy associate administrator for NASA's Human Exploration and Operations Mission Directorate, who participated in much of the CDR. "Anytime you do something for the first time you can run into challenges, but we have been working side-by-side with ESA and Airbus to make Orion integration go as smoothly and efficiently as possible."

The CDR identified April 2017 as the target for the service module delivery to Kennedy Space Center in Florida. Teams will begin integrating hardware into the rocket before the service module is delivered, and NASA plans to continue to optimize processing when it arrives at Kennedy. Initial results maintain EM-1 launch date no later than November 2018.

"There is some design maturation work that will occur while the module is being manufactured," added Free. "We will also continue to evaluate updates to the shipping plans for the service module to prioritize work and refine schedules, and we will identify the best options to integrate our overall schedule."

Results of the service module's review will be briefed to senior NASA and ESA officials in the coming weeks.

posted 12-07-2016 10:46 AM

ESA to supply Service Module for first crewed Orion mission

ESA and NASA are extending their collaboration in human space exploration following confirmation that Europe will supply a second Service Module to support the first crewed mission of the Orion spacecraft.

The Service Module provides propulsion, electrical power, water and thermal control as well as maintaining the oxygen and nitrogen atmosphere for the crew.

The mission is set for launch from NASA's Kennedy Space Center in Florida, USA, as early as 2021 and will include up to four astronauts – the first time humans have left low orbit since 1972. Crew size and composition will be determined closer to launch.

The mission will see Orion follow three progressively elongated orbits to reach past the Moon and return to Earth, faster than any manned spacecraft has reentered our atmosphere before.

ESA's Director of Human Spaceflight, Dave Parker, says, "We are excited to be a part of this historic mission and appreciate NASA's trust in us to help extend humanity's exploration farther afield into our Solar System."

The first Orion with the service module will be launched in late 2018 on NASA's new Space Launch System. The month-long mission will be unmanned and will orbit the Moon before returning to Earth, testing the spacecraft and rocket before carrying astronauts.

The European Service Module is designed, built and assembled by a team of companies from 11 countries led by Airbus Space & Defence, based on proven technology from ESA's Automated Transfer Vehicle that flew to the International Space Station five times with supplies.

The mission and collaboration with NASA is part of ESA's vision to prepare for future voyages of exploration further into the Solar System, and continues the spirit of international cooperation that forms the foundation of the International Space Station.

posted 12-14-2016 02:21 PM

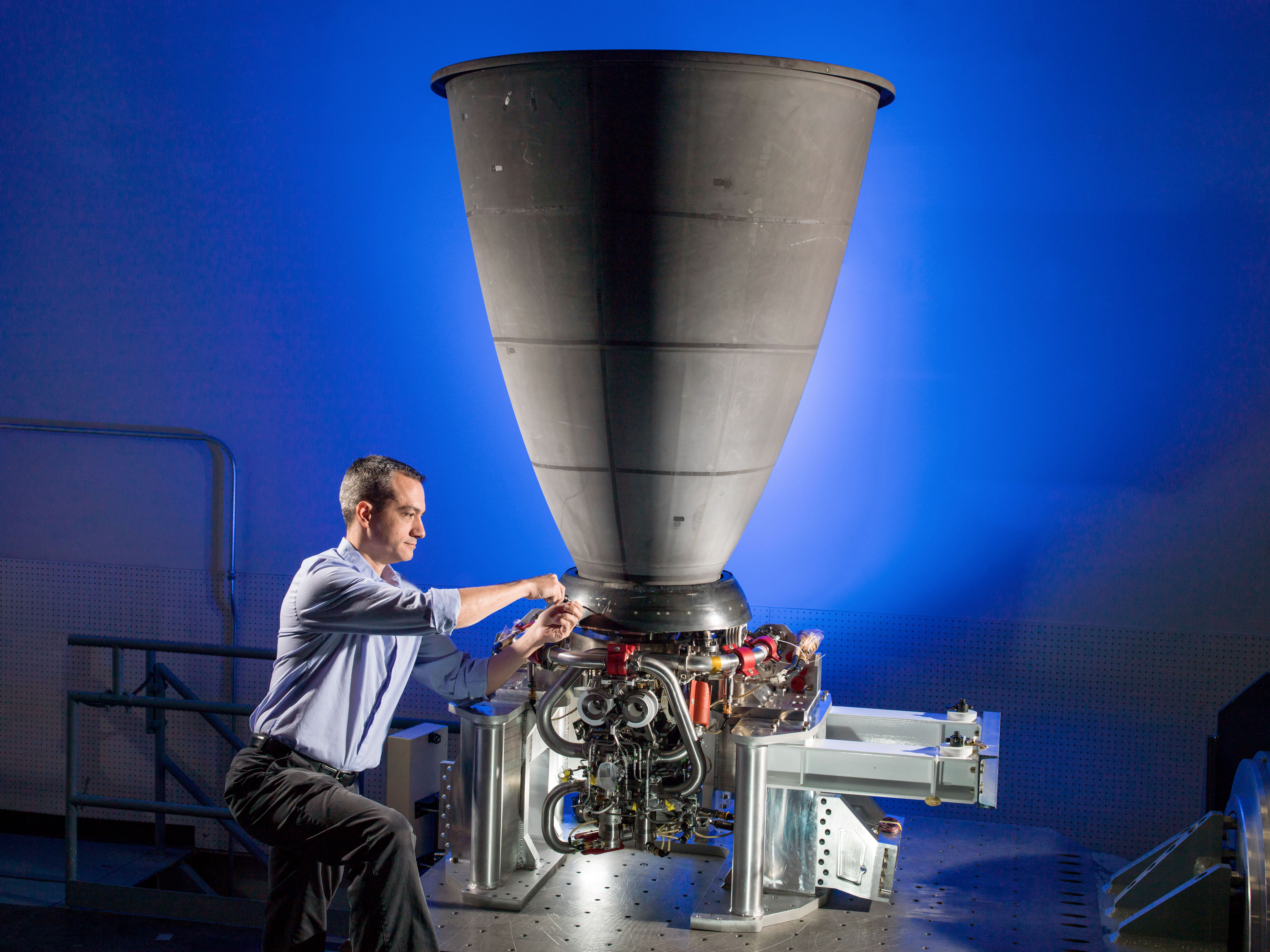

Orion main engine arrives in Europe

The main engine for the European Service Module that will power NASA’s Orion spacecraft was shipped from NASA’s White Sands facility and has arrived in Bremen, Germany.

The first Orion exploration mission will fly in 2018 beyond the Moon with a European-built service module to provide electricity, water, oxygen and nitrogen as well as keeping the spacecraft at the right temperature and on course.

The service module has 33 engines to provide thrust and manoeuvre the spacecraft on all axes. The main engine on the first mission is a repurposed Space Shuttle Orbital Maneuvering System engine that has flown 16 times in space before on Space Shuttle Challenger, Discovery and Atlantis. The engine provides 25.7 kN, enough to lift a van, and can swivel in pitch and yaw.

Road to Bremen

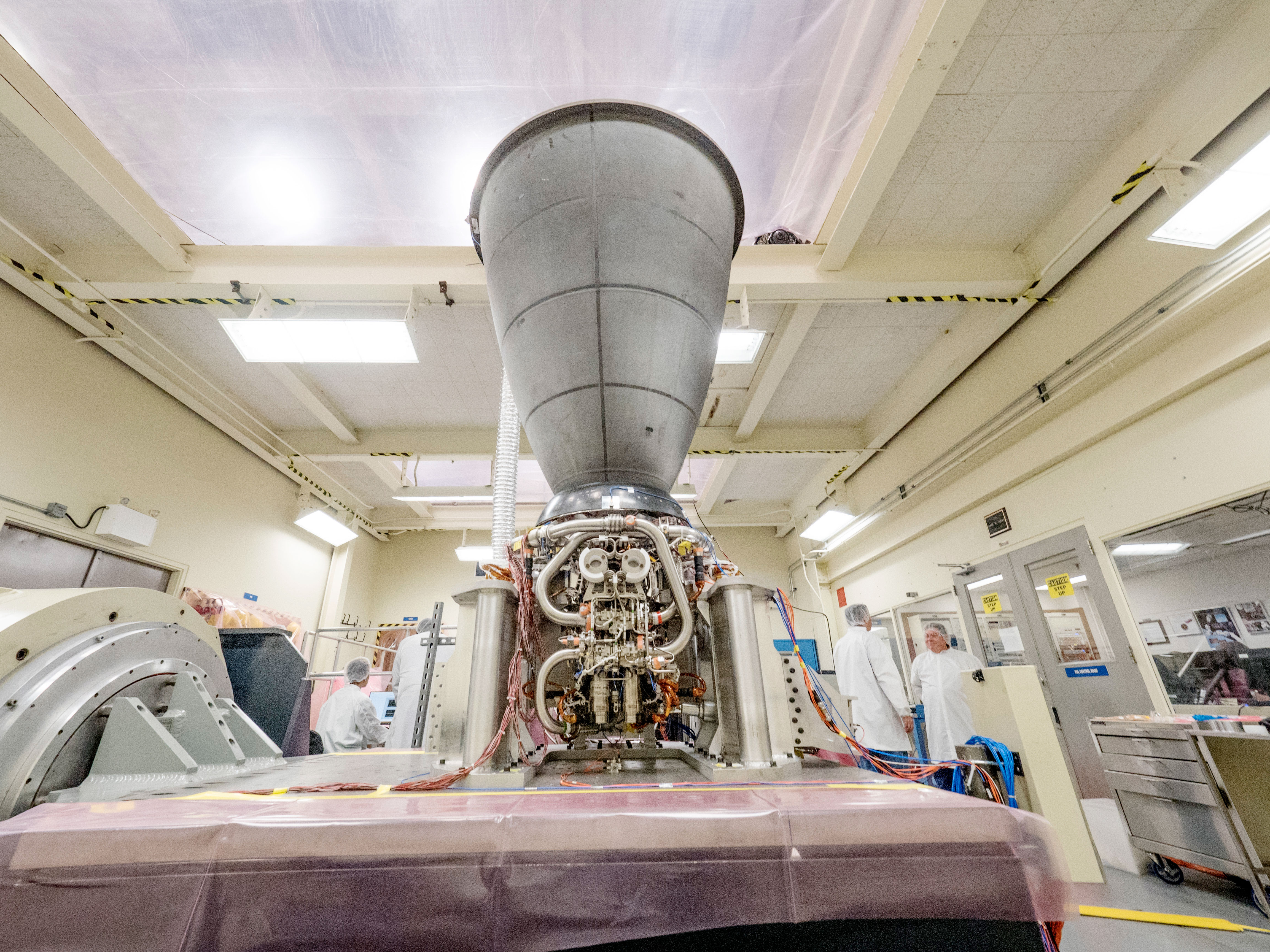

At White Sands the engine was refurbished and reassembled before shipping to NASA’s Johnson Space Center for shake testing. It was returned to White Sands for leak testing and is now in Europe. The engine flew from Dallas/Fort Worth airport to Frankfurt and continued its trip by truck to the European Service Module integration halls in Bremen, Germany.

posted 02-27-2017 10:14 PM

Orion progress continues with installation of module to test propulsion systems

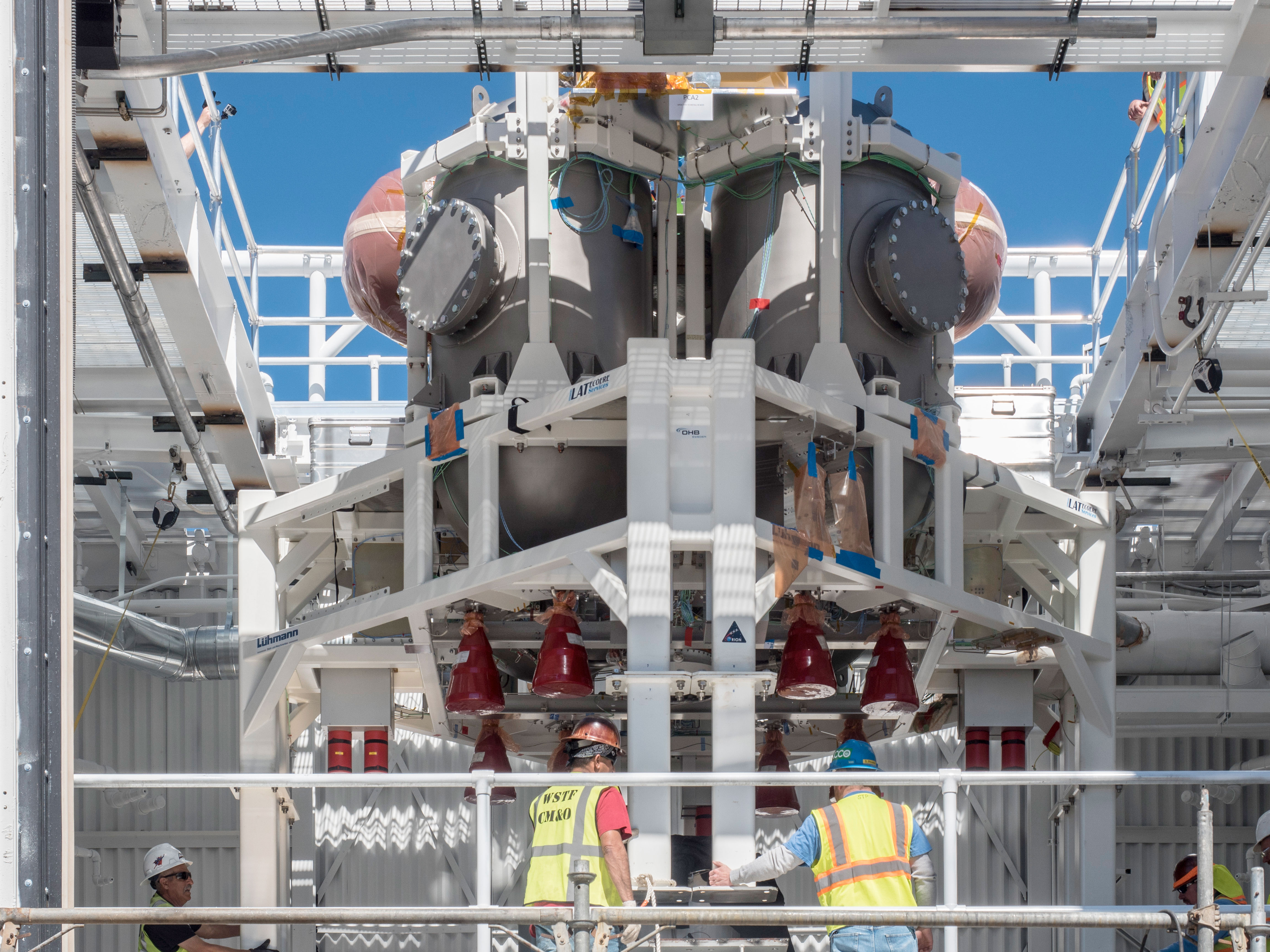

On Feb. 22, engineers successfully installed ESA's European Service Module Propulsion Qualification Module (PQM) at NASA's White Sands Test Facility in New Mexico that was delivered by Airbus – ESA's prime contractor for the Service Module.

The module will be equipped with a total of 21 engines to support NASA's Orion spacecraft: one U.S. Space Shuttle Orbital Maneuvering System (OMS) engine, eight auxiliary thrusters and 12 smaller thrusters produced by Airbus Safran Launchers in Germany.

The all-steel PQM structure is used to test the propulsion systems on Orion, including "hot firing" of the OMS engine and thrusters.

posted 08-07-2019 04:18 PM

Hot Fire! Orion's Service Module Completes Critical Propulsion Test

NASA is building a system to send astronauts to the Moon for Artemis missions, and that includes tests to make sure the Orion spacecraft is prepared to safely carry crew on an alternate mission profile in the face of unexpected problems. That capability was most recently demonstrated with a successful, continuous 12-minute firing of Orion's propulsion system that simulated a possible alternate mission scenario.

"Inserting Orion into lunar orbit and returning the crew on a trajectory back home to Earth requires extreme precision in both plotting the course and firing the engines to execute that plan," said Mark Kirasich, program manager for Orion at NASA's Johnson Space Center in Houston. "With each testing campaign we conduct like this one, we're getting closer to accomplishing our missions to the Moon and beyond."

The Aug. 5 test was conducted using a qualification version of the propulsion system at NASA's White Sands Test Facility near Las Cruces, New Mexico. While the system never left the ground, it simulated one of the most taxing situations the spacecraft's engines could encounter after launch.

This test simulated what is referred to as an abort-to-orbit scenario. In the event the interim cryogenic propulsion stage (ICPS) was unable to set the spacecraft on its path to the Moon, Orion would deliberately separate early from the ICPS and the ESA (European Space Agency)-provided service module's engines would fire to boost the spacecraft into a safe, temporary orbit. That would allow time to evaluate the crew and spacecraft before a decision is made to either continue with an alternate mission profile, or return to Earth. Under an alternate mission profile, Orion and its crew may still be able to accomplish some of the mission objectives even if the trajectory and the primary mission objective has changed.

During the successful test, engineers simulated the abort-to-orbit scenario by firing the Orion main engine on the service module, in addition to all eight of its auxiliary engines simultaneously. Each of the reaction control thrusters were also periodically fired throughout the test to simulate attitude control and overall propulsion system capacity.

"This was our most demanding test for the pressurization system, including our propellant tanks, valves and other components," said Josh Freeh, deputy manager, Orion's Service Module, at NASA's Glenn Research Center. "The combined international team has been working towards this test for many months."

The qualification version of the service module's propulsion system serves as a testbed to verify the performance of the multiple types of engines, propellant systems and other propulsion-related subsystems.

"The tests at White Sands have been very helpful to better understand and operate our service module propulsion system," said Jim Withrow, project manager for the test article. "This firing was one of a series of tests performed to date and in the coming months to simulate contingency modes and other stressful flight conditions."

As the powerhouse of the Orion spacecraft, the service module provides in-space maneuvering, power and other astronaut life support systems, including consumables like water, oxygen and nitrogen. Engineers at NASA's Kennedy Space Center are joining the completed Artemis 1 crew module and service module together, before sending the spacecraft to NASA's Plum Brook Station in Sandusky, Ohio, later this fall for simulated in-space environmental testing. Once testing is complete in Ohio, the spacecraft will return to Kennedy for final processing and integration with the Space Launch System (SLS) rocket.

Artemis 1 will be the first, full test flight of the SLS and Orion as it is sent around the Moon. The uncrewed test will precede Artemis 2, the first flight with astronauts aboard, and both will pave the way for the first woman and the next man to land on the Moon by 2024, while preparing for future missions to Mars.

posted 09-22-2021 09:52 AM

Aerojet Rocketdyne Awarded NASA Contract for Orion Spacecraft Main Engine

NASA has selected Aerojet Rocketdyne to build the Orion Main Engine (OME), the primary propulsion element for NASA's Orion spacecraft that will be used to explore deep space. Under the contract, which runs through 2032, Aerojet Rocketdyne will deliver up to 20 new OME engines for use on future Artemis missions beginning with Artemis VII, or to support other NASA-sponsored, deep space exploration missions.

The OME is a 6,000 pound-thrust bipropellant engine that is mounted on Orion's European Service module and will be built at Aerojet Rocketdyne's Los Angeles, California, and Redmond, Washington, facilities. The engine is used for major maneuvers in space, such as entering and departing lunar orbit, and in some mission abort scenarios. The first six Orion missions will use refurbished Orbital Maneuvering System engines (OMS-E) that were provided by Aerojet Rocketdyne for the space shuttle program.

"Having originally designed and developed the OMS-E for the shuttle program, Aerojet Rocketdyne understands the engine's materials, manufacturing processes and thrust levels," said Aerojet Rocketdyne CEO and President Eileen P. Drake. "Now we are able to incorporate modern manufacturing techniques to provide NASA with a reliable, flight-proven and affordable engine to propel the Orion spacecraft and return astronauts to the Moon. We understand this engine inside and out and are excited to develop its next generation in support of future Artemis missions."

In addition to the main engine, Aerojet Rocketdyne also provides, under contract to Lockheed Martin, the auxiliary engines on Orion's service module, reaction control thrusters on the crew module, OMS-E refurbishment services and the jettison motor on the spacecraft's launch abort system. Orion's auxiliary engines and reaction control thrusters are produced at Aerojet Rocketdyne's facility in Redmond, Washington. The jettison motor is a combined effort of the company's facilities in Orange, Virginia, and Huntsville, Alabama.
