posted 05-26-2015 01:18 PM

NASA's Europa Mission Begins with Selection of Science Instruments

NASA has selected nine science instruments for a mission to Jupiter's moon Europa, to investigate whether the mysterious icy moon could harbor conditions suitable for life.

NASA's Galileo mission yielded strong evidence that Europa, about the size of Earth's moon, has an ocean beneath a frozen crust of unknown thickness. If proven to exist, this global ocean could have more than twice as much water as Earth. With abundant salt water, a rocky sea floor, and the energy and chemistry provided by tidal heating, Europa could be the best place in the solar system to look for present day life beyond our home planet.

Above: This artist's rendering shows a concept for a future NASA mission to Europa in which a spacecraft would make multiple close flybys of the icy Jovian moon, thought to contain a global subsurface ocean. CREDIT: NASA

"Europa has tantalized us with its enigmatic icy surface and evidence of a vast ocean, following the amazing data from 11 flybys of the Galileo spacecraft over a decade ago and recent Hubble observations suggesting plumes of water shooting out from the moon," said John Grunsfeld, associate administrator for NASA's Science Mission Directorate in Washington. "We're excited about the potential of this new mission and these instruments to unravel the mysteries of Europa in our quest to find evidence of life beyond Earth."

NASA's fiscal year 2016 budget request includes $30 million to formulate a mission to Europa. The mission would send a solar-powered spacecraft into a long, looping orbit around the gas giant Jupiter to perform repeated close flybys of Europa over a three-year period. In total, the mission would perform 45 flybys at altitudes ranging from 16 miles to 1,700 miles (25 kilometers to 2,700 kilometers).

The payload of selected science instruments includes cameras and spectrometers to produce high-resolution images of Europa's surface and determine its composition. An ice penetrating radar will determine the thickness of the moon's icy shell and search for subsurface lakes similar to those beneath Antarctica. The mission also will carry a magnetometer to measure strength and direction of the moon's magnetic field, which will allow scientists to determine the depth and salinity of its ocean.

A thermal instrument will scour Europa's frozen surface in search of recent eruptions of warmer water, while additional instruments will search for evidence of water and tiny particles in the moon's thin atmosphere. NASA's Hubble Space Telescope observed water vapor above the south polar region of Europa in 2012, providing the first strong evidence of water plumes. If the plumes' existence is confirmed – and they're linked to a subsurface ocean – it will help scientists investigate the chemical makeup of Europa's potentially habitable environment while minimizing the need to drill through layers of ice.

Last year, NASA invited researchers to submit proposals for instruments to study Europa. Thirty-three were reviewed and, of those, nine were selected for a mission that will launch in the 2020s.

"This is a giant step in our search for oases that could support life in our own celestial backyard," said Curt Niebur, Europa program scientist at NASA Headquarters in Washington. "We're confident that this versatile set of science instruments will produce exciting discoveries on a much-anticipated mission."

The NASA selectees are:

• Plasma Instrument for Magnetic Sounding (PIMS) — principal investigator Dr. Joseph Westlake of Johns Hopkins Applied Physics Laboratory (APL), Laurel, Maryland. This instrument works in conjunction with a magnetometer and is key to determining Europa's ice shell thickness, ocean depth, and salinity by correcting the magnetic induction signal for plasma currents around Europa.

• Interior Characterization of Europa using Magnetometry (ICEMAG) — principal investigator Dr. Carol Raymond of NASA's Jet Propulsion Laboratory (JPL), Pasadena, California. This magnetometer will measure the magnetic field near Europa and – in conjunction with the PIMS instrument – infer the location, thickness and salinity of Europa's subsurface ocean using multi-frequency electromagnetic sounding.

• Mapping Imaging Spectrometer for Europa (MISE) — principal investigator Dr. Diana Blaney of JPL. This instrument will probe the composition of Europa, identifying and mapping the distributions of organics, salts, acid hydrates, water ice phases, and other materials to determine the habitability of Europa's ocean.

• Europa Imaging System (EIS) — principal investigator Dr. Elizabeth Turtle of APL. The wide and narrow angle cameras on this instrument will map most of Europa at 50 meter (164 foot) resolution, and will provide images of areas of Europa's surface at up to 100 times higher resolution.

• Radar for Europa Assessment and Sounding: Ocean to Near-surface (REASON) — principal investigator Dr. Donald Blankenship of the University of Texas, Austin. This dual-frequency ice penetrating radar instrument is designed to characterize and sound Europa's icy crust from the near-surface to the ocean, revealing the hidden structure of Europa's ice shell and potential water within.

• Europa Thermal Emission Imaging System (E-THEMIS) — principal investigator Dr. Philip Christensen of Arizona State University, Tempe. This "heat detector" will provide high spatial resolution, multi-spectral thermal imaging of Europa to help detect active sites, such as potential vents erupting plumes of water into space.

• MAss SPectrometer for Planetary EXploration/Europa (MASPEX) — principal investigator Dr. Jack (Hunter) Waite of the Southwest Research Institute (SwRI), San Antonio. This instrument will determine the composition of the surface and subsurface ocean by measuring Europa's extremely tenuous atmosphere and any surface material ejected into space.

• Ultraviolet Spectrograph/Europa (UVS) — principal investigator Dr. Kurt Retherford of SwRI. This instrument will adopt the same technique used by the Hubble Space Telescope to detect the likely presence of water plumes erupting from Europa's surface. UVS will be able to detect small plumes and will provide valuable data about the composition and dynamics of the moon's rarefied atmosphere.

• SUrface Dust Mass Analyzer (SUDA) — principal investigator Dr. Sascha Kempf of the University of Colorado, Boulder. This instrument will measure the composition of small, solid particles ejected from Europa, providing the opportunity to directly sample the surface and potential plumes on low-altitude flybys.

Separate from the selectees listed above, the SPace Environmental and Composition Investigation near the Europan Surface (SPECIES) instrument has been chosen for further technology development. Led by principal investigator Dr. Mehdi Benna at NASA's Goddard Space Flight Center in Greenbelt, Maryland, this combined neutral mass spectrometer and gas chromatograph will be developed for other mission opportunities.

posted 06-17-2015 04:30 PM

All Systems Go for NASA's Mission to Jupiter Moon Europa

Beyond Earth, Jupiter's moon Europa is considered one of the most promising places in the solar system to search for signs of present-day life, and a new NASA mission to explore this potential is moving forward from concept review to development.

NASA's mission concept — to conduct a detailed survey of Europa and investigate its habitability — has successfully completed its first major review by the agency and now is entering the development phase known as formulation.

"Today we're taking an exciting step from concept to mission, in our quest to find signs of life beyond Earth," said John Grunsfeld, associate administrator for NASA's Science Mission Directorate in Washington. "Observations of Europa have provided us with tantalizing clues over the last two decades, and the time has come to seek answers to one of humanity's most profound questions."

NASA's Galileo mission to Jupiter in the late 1990s produced strong evidence that Europa, about the size of Earth's moon, has an ocean beneath its frozen crust. If proven to exist, this global ocean could hold more than twice as much water as Earth. With abundant salt water, a rocky sea floor, and the energy and chemistry provided by tidal heating, Europa may have the ingredients needed to support simple organisms.

The mission plan calls for a spacecraft to be launched to Jupiter in the 2020s, arriving in the distant planet's orbit after a journey of several years. The spacecraft would orbit the giant planet about every two weeks, providing many opportunities for close flybys of Europa. The mission plan includes 45 flybys, during which the spacecraft would image the moon's icy surface at high resolution and investigate its composition and the structure of its interior and icy shell.

NASA's Jet Propulsion Laboratory (JPL) in Pasadena, California, has been assigned the responsibility of managing the project. JPL has been studying the multiple-flyby mission concept, in collaboration with the Johns Hopkins University Applied Physics Laboratory (APL) in Laurel, Maryland, since 2011.

Instruments selected for the Europa mission's scientific payload were announced by NASA on May 26. Institutions supplying instruments include APL; JPL; Arizona State University, Tempe; the University of Texas at Austin; Southwest Research Institute, San Antonio and the University of Colorado, Boulder.

"It's a great day for science," said Joan Salute, Europa program executive at NASA Headquarters in Washington. "We are thrilled to pass the first major milestone in the lifecycle of a mission that will ultimately inform us on the habitability of Europa."

posted 02-02-2016 09:25 PM

Akon is a 40-centimeter-long, bullet-shaped probe. After separating from NASA's orbiter, Akon would be carried closer to Europa by a little spacecraft with thrusters. This will help aim the probe, which needs to strike Europa's surface at a 90-degree angle. This ferrying system could include an imager and a mass spectrometer to analyze Europa's thin exosphere.

The probe itself, ejected from the space ferry at a height of 35 kilometers (or about 22 miles), could include a variety of instruments, including an imager, equipment to test for conditions that might be conducive to life, and a seismometer to look for moonquakes and to probe the depth of Europa's icy crust.

posted 02-21-2017 05:17 PM

NASA's Europa Flyby Mission Moves into Design Phase

A mission to examine the habitability of Jupiter's ocean-bearing moon Europa is taking one step closer to the launchpad, with the recent completion of a major NASA review.

On Feb. 15, NASA's Europa multiple-flyby mission successfully completed its Key Decision Point-B review. This NASA decision permits the mission to move forward into its preliminary design phase, known as "Phase B," beginning on Feb. 27.

A highlight of Phase A was the selection and accommodation of 10 instruments being developed to study the scientific mysteries of Europa. The new mission phase is planned to continue through September 2018, and will result in the completion of a preliminary design for the mission's systems and subsystems. Some testing of spacecraft components, including solar cells and science instrument detectors, has already been underway during Phase A, and this work is planned to continue into Phase B.

In addition, during Phase B subsystem vendors will be selected, as well as prototype hardware elements for the science instruments. Spacecraft subassemblies will be built and tested as well.

The Europa mission spacecraft is being planned for launch in the 2020s, arriving in the Jupiter system after a journey of several years. The spacecraft would orbit Jupiter as frequently as every two weeks, providing many opportunities for close flybys of Europa. The mission plan includes 40 to 45 flybys in the prime mission, during which the spacecraft would image the moon's icy surface at high resolution and investigate its composition and the structure of its interior and icy shell.

The life cycle of a NASA science mission includes several key phases. At each step, missions must successfully demonstrate that they have met the agency's requirements in order to indicate readiness to move forward into the next phase. Phase B includes preliminary design work, while phases C and D include final design, spacecraft fabrication, assembly and testing, and launch.

posted 03-10-2017 05:34 AM

NASA Mission Named 'Europa Clipper'

NASA's upcoming mission to investigate the habitability of Jupiter's icy moon Europa now has a formal name: Europa Clipper.

The moniker harkens back to the clipper ships that sailed across the oceans of Earth in the 19th century. Clipper ships were streamlined, three-masted sailing vessels renowned for their grace and swiftness. These ships rapidly shuttled tea and other goods back and forth across the Atlantic Ocean and around the globe.

In the grand tradition of these classic ships, the Europa Clipper spacecraft would sail past Europa at a rapid cadence, as frequently as every two weeks, providing many opportunities to investigate the moon up close. The prime mission plan includes 40 to 45 flybys, during which the spacecraft would image the moon's icy surface at high resolution and investigate its composition and the structure of its interior and icy shell.

Europa has long been a high priority for exploration because it holds a salty liquid water ocean beneath its icy crust. The ultimate aim of Europa Clipper is to determine if Europa is habitable, possessing all three of the ingredients necessary for life: liquid water, chemical ingredients, and energy sources sufficient to enable biology.

"During each orbit, the spacecraft spends only a short time within the challenging radiation environment near Europa. It speeds past, gathers a huge amount of science data, then sails on out of there," said Robert Pappalardo, Europa Clipper project scientist at NASA's Jet Propulsion Laboratory in Pasadena, California.

Previously, when the mission was still in the conceptual phase, it was sometimes informally called Europa Clipper, but NASA has now adopted that name as the formal title for the mission.

The mission is being planned for launch in the 2020s, arriving in the Jupiter system after a journey of several years.

posted 08-19-2019 04:55 PM

Europa Clipper's Mission to Jupiter's Icy Moon Confirmed

An icy ocean world in our solar system that could tell us more about the potential for life on other worlds is coming into focus with confirmation of the Europa Clipper mission's next phase. The decision allows the mission to progress to completion of final design, followed by the construction and testing of the entire spacecraft and science payload.

"We are all excited about the decision that moves the Europa Clipper mission one key step closer to unlocking the mysteries of this ocean world," said Thomas Zurbuchen, associate administrator for the Science Mission Directorate at NASA Headquarters in Washington. "We are building upon the scientific insights received from the flagship Galileo and Cassini spacecraft and working to advance our understanding of our cosmic origin, and even life elsewhere."

The mission will conduct an in-depth exploration of Jupiter's moon, Europa, and investigate whether the icy moon could harbor conditions suitable for life, honing our insights into astrobiology. To develop this mission in the most cost-effective fashion, NASA is targeting to have the Europa Clipper spacecraft complete and ready for launch as early as 2023. The agency baseline commitment, however, supports a launch readiness date by 2025.

NASA's Jet Propulsion Laboratory in Pasadena, California leads the development of the Europa Clipper mission in partnership with the Johns Hopkins University Applied Physics Laboratory for the Science Mission Directorate. Europa Clipper is managed by the Planetary Missions Program Office at NASA's Marshall Space Flight Center in Huntsville, Alabama.

posted 07-23-2021 03:33 PM

NASA Awards Launch Services Contract for the Europa Clipper Mission

NASA has selected Space Exploration Technologies Corp. (SpaceX) of Hawthorne, California, to provide launch services for Earth's first mission to conduct detailed investigations of Jupiter's moon Europa.

The Europa Clipper mission will launch in October 2024 on a Falcon Heavy rocket from Launch Complex 39A at NASA's Kennedy Space Center in Florida. The total contract award amount for launch services is approximately $178 million.

Europa Clipper will conduct a detailed survey of Europa and use a sophisticated suite of science instruments to investigate whether the icy moon has conditions suitable for life. Key mission objectives are to produce high-resolution images of Europa's surface, determine its composition, look for signs of recent or ongoing geological activity, measure the thickness of the moon's icy shell, search for subsurface lakes, and determine the depth and salinity of Europa's ocean.

NASA's Launch Services Program at Kennedy will manage the Europa Clipper launch service. NASA's Jet Propulsion Laboratory in Southern California leads the development of the Europa Clipper mission in partnership with the Johns Hopkins Applied Physics Laboratory in Laurel, Maryland, for NASA's Science Mission Directorate in Washington. The Planetary Missions Program Office at NASA's Marshall Space Flight Center in Huntsville, Alabama, executes program management of the Europa Clipper mission.

posted 08-05-2021 04:04 PM

A Few Steps Closer to Europa: Spacecraft Hardware Makes Headway

The hardware that makes up NASA's Europa Clipper spacecraft is rapidly taking shape, as engineering components and instruments are prepared for delivery to the main clean room at the agency's Jet Propulsion Laboratory in Southern California. In workshops and labs across the country and in Europe, teams are crafting the complex pieces that make up the whole as mission leaders direct the elaborate choreography of building a flagship mission.

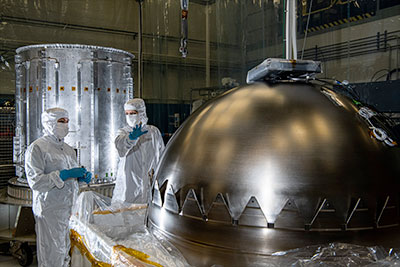

Above: Engineers at NASA's Goddard Space Flight Center in Greenbelt, Maryland, prepare for a propellant tank to be inserted into the cylinder in the background at left. The cylinder is one of two that make up Europa Clipper's propulsion module. (NASA/GSFC Denny Henry)

The massive 10-foot-tall (3-meter-tall) propulsion module recently moved from NASA's Goddard Space Flight Center in Greenbelt, Maryland, to the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, where engineers will install electronics, radios, antennas, and cabling. The spacecraft's thick aluminum vault, which will protect Europa Clipper's electronics from Jupiter's intense radiation, is nearing completion at JPL. The building and testing of the science instruments at universities and partner institutions across the country continue as well.

The mission is also gearing up for its System Integration Review in late 2021, when NASA will review plans for assembling and testing Europa Clipper, and its instruments are inspected in detail.

Above: Engineers and technicians in a clean room at NASA's Jet Propulsion Laboratory display the thick-walled aluminum vault they helped build for the Europa Clipper spacecraft. The vault will protect the spacecraft's electronics from Jupiter's intense radiation. In the background is a duplicate vault. (NASA/JPL-Caltech)

"It's really exciting to see the progression of flight hardware moving forward this year as the various elements are put together bit by bit and tested," said Europa Clipper Project Manager Jan Chodas of JPL. "The project team is energized and more focused than ever on delivering a spacecraft with an exquisite instrument suite that promises to revolutionize our knowledge of Europa."

Jupiter's icy moon Europa, which harbors an internal ocean with twice the amount of water in Earth's oceans combined, may currently have conditions suitable for supporting life. Europa Clipper will carry a broad suite of science instruments into orbit around Jupiter and conduct multiple close flybys of Europa to gather data on its atmosphere, surface, and interior.

Hardware in the Works

Above: Engineers in a clean room at NASA's Jet Propulsion Laboratory build the nadir deck for NASA's Europa Clipper spacecraft. The deck will stabilize the spacecraft's sensors and help the mission team ensure its instruments are oriented correctly. (NASA/JPL-Caltech)

Delivery of the towering propulsion module from Goddard to APL marked a milestone for that major piece of hardware. APL built the twin cylinders that make up the module and shipped them to JPL, where technicians added thermal tubing that will carry coolant to keep the spacecraft from getting too hot or too cold in deep space. From there, the cylinders went to Goddard, where propellant tanks were installed inside of them and 16 rocket engines were attached to the outside.

Another large piece of hardware nearing completion is the spacecraft's radiator, which connects to the thermal tubing. The width and length of a twin-size bed, the radiator's 3-inch-thick (7.5-centimeter-thick) panel has the crucial job of radiating heat out into space to keep the spacecraft within its operating temperature range. It is covered with louvers that open and close automatically as the spacecraft disperses more or less heat to regulate its temperature.

Meanwhile, work at APL begins to integrate the propulsion module and the telecommunications hardware (electronics, radios, antennas, and cabling). And construction of a high-gain antenna – a dish nearly 10 feet (3 meters) wide – is underway at vendor Applied Aerospace Structures Corporation in Stockton, California. It will be delivered to APL this year, where it will be integrated before the entire module comes back to JPL a final time. By the spring of 2022, the huge element will join other Europa Clipper hardware streaming into JPL's main high bay for assembly, test, and launch operations (ATLO).

One of the first elements in place for ATLO will be the spacecraft's vault, now entering its final stage of fabrication at JPL. Eventually, the vault will be bolted to the top of the propulsion module and affixed with miles of cabling so that the power box and computer inside can communicate with the other subsystems.

Attached to the vault will be a deck, also completing assembly at JPL, that will support many of the instrument sensors. Called the nadir deck, it stabilizes the spacecraft's sensors and helps ensure they are oriented correctly.

Science Instruments Nearing Completion

At the same time that the spacecraft body, electronics, and engineering subsystems come together, nine science instruments are being assembled and tested across a network of clean rooms at NASA centers, partner institutions, and private industry vendors. The suite of instruments will investigate everything from the depth of the internal ocean and its salinity to the thickness of the ice crust and potential plumes that may be venting subsurface water into space.

Above: Europa Clipper's spectrometer, Mapping Imaging Spectrometer for Europa (MISE), is seen in the midst of assembly in a clean room at NASA's Jet Propulsion Laboratory. MISE will analyze infrared light reflected from Europa and map its surface composition in detail. (NASA/JPL-Caltech)

Slated to be delivered to ATLO from late 2021 through mid-2022, the instruments, which include cameras to capture surface geology in detail, are undergoing extensive testing. Engineers want to be sure the instruments can communicate correctly with the flight computer, spacecraft software, and the power subsystem, to be able to respond to commands and transmit data back to Earth.

Mission leaders acknowledge that COVID-19 challenges have stretched the project and instrument teams as they find ways to meet deadlines when parts are delayed or staffing is short. Engineers, technicians, and scientists continue to power through.

"What we've seen, even in the midst of the pandemic, is that the engineering and instrument teams are responding very well. The pandemic has affected mission schedule, but the teams are tackling the challenges, communicating openly, and displaying tremendous flexibility to keep the hardware on track for our October 2024 launch," said Europa Clipper Deputy Project Manager Jordan Evans. "We see it day in and day out, across the team, and it's fantastic."

posted 03-06-2022 09:05 PM

NASA Begins Assembly of Europa Clipper Spacecraft

When it's fully assembled, NASA's Europa Clipper will be as large as an SUV with solar arrays long enough to span a basketball court – all the better to help power the spacecraft during its journey to Jupiter's icy moon Europa. And just about every detail of the spacecraft will have been hand-crafted.

Above: Clockwise from left: the propulsion module for NASA's Europa Clipper, the ultraviolet spectrograph (called Europa-UVS), the high-gain antenna, and an illustration of the spacecraft. (NASA/JPL-Caltech / Johns Hopkins APL)

The assembly effort is already underway in clean rooms at the agency's Jet Propulsion Laboratory in Southern California. Now, engineering components and science instruments are beginning to stream in from across the country and Europe. Before year's end, most of the flight hardware – including a suite of nine science instruments – is expected to be complete.

The main body of the spacecraft is a giant 10-foot-tall (3-meter-tall) propulsion module, designed and constructed by Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, with help from NASA's Goddard Space Flight Center in Greenbelt, Maryland, and JPL. The module, fitted with electronics, radios, cabling, and the propulsion subsystem, will ship to JPL this spring. Europa Clipper's 10-foot-wide (3-meter-wide) high-gain antenna also will be arriving at the Lab soon.

"We're moving into the phase where we see the pieces all come together as a flight system," said Europa Clipper Project Manager Jan Chodas of JPL. "It will be very exciting to see the hardware, the flight software, and the instruments get integrated and tested. To me, it's the next level of discovery. We'll learn how the system we designed will actually perform."

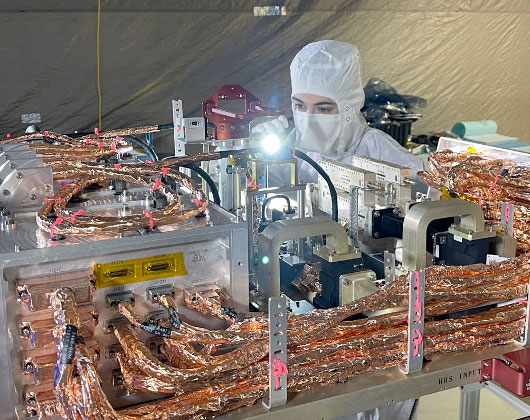

Above: An engineer inspects the radio frequency (RF) panel of NASA's Europa Clipper in a cleanroom at the Johns Hopkins Applied Physics Laboratory in Laurel, Maryland. (Johns Hopkins APL)

Europa, which scientists are confident harbors an internal ocean with twice the amount of water in Earth's oceans combined, may currently have conditions suitable for supporting life. Europa Clipper will orbit Jupiter and conduct multiple close flybys of Europa to gather data on the moon's atmosphere, surface, and interior. Its sophisticated payload will investigate everything from the depth and salinity of the ocean to the thickness of the ice crust to the characteristics of potential plumes that may be venting subsurface water into space.

The first science instrument to be completed was delivered to JPL last week by a team at Southwest Research Institute in San Antonio, Texas. The ultraviolet spectrograph, called Europa-UVS, will search above the surface of Europa for signs of plumes. The instrument collects ultraviolet light, then separates the wavelengths of that light to help determine the composition of the moon's surface and gases in the atmosphere.

As each instrument arrives at JPL, it will be integrated with the spacecraft and re-tested. Engineers need to be sure the instruments can communicate with the flight computer, spacecraft software, and the power subsystem.

Once all the components have been integrated to form the large flight system, Europa Clipper will move to JPL's enormous thermal vacuum chamber for testing that simulates the harsh environment of deep space. There also will be intense vibration testing to ensure Europa Clipper can withstand the jostling of launch. Then it's off to Cape Canaveral, Florida, for an October 2024 launch.

For the leaders of this mission, seeing the engineering components come together with the fleet of instruments will be especially moving, knowing how hard their teams have pushed to work through the coronavirus pandemic.

"I don't know how I'll feel, seeing this come together. I suspect it will be somewhat overwhelming," said JPL's Robert Pappalardo, the Europa Clipper project scientist. "It's happening – it's becoming real. It's becoming tangible."

At the same time, the level of difficulty kicks up several notches as the layers of the project merge.

"All of the parallel paths of hardware and software development will start to join together in a way that's very visible to the team," said JPL's Jordan Evans, the deputy project manager. "Everybody's eyes turn toward the integrated system that's coming together, which is exciting."

posted 06-08-2022 12:00 PM

NASA's Europa Clipper Mission Completes Main Body of the Spacecraft

The agency's mission to explore Jupiter's icy moon takes a big step forward as engineers deliver a major component of the spacecraft.

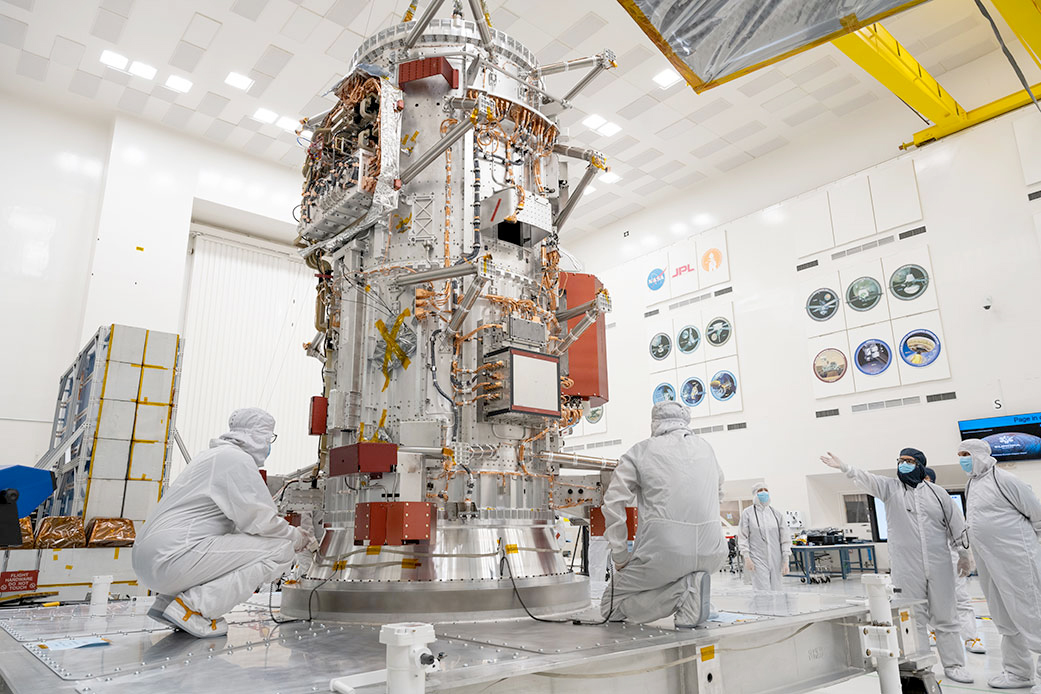

Above: Engineers and technicians inspect the main body of NASA’s Europa Clipper spacecraft after it was built and delivered by the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, to the agency’s Jet Propulsion Laboratory in Southern California in early June. (NASA/JPL-Caltech/Johns Hopkins APL/Ed Whitman)

The main body of NASA's Europa Clipper spacecraft has been delivered to the agency's Jet Propulsion Laboratory in Southern California. Over the next two years there, engineers and technicians will finish assembling the craft by hand before testing it to make sure it can withstand the journey to Jupiter's icy moon Europa.

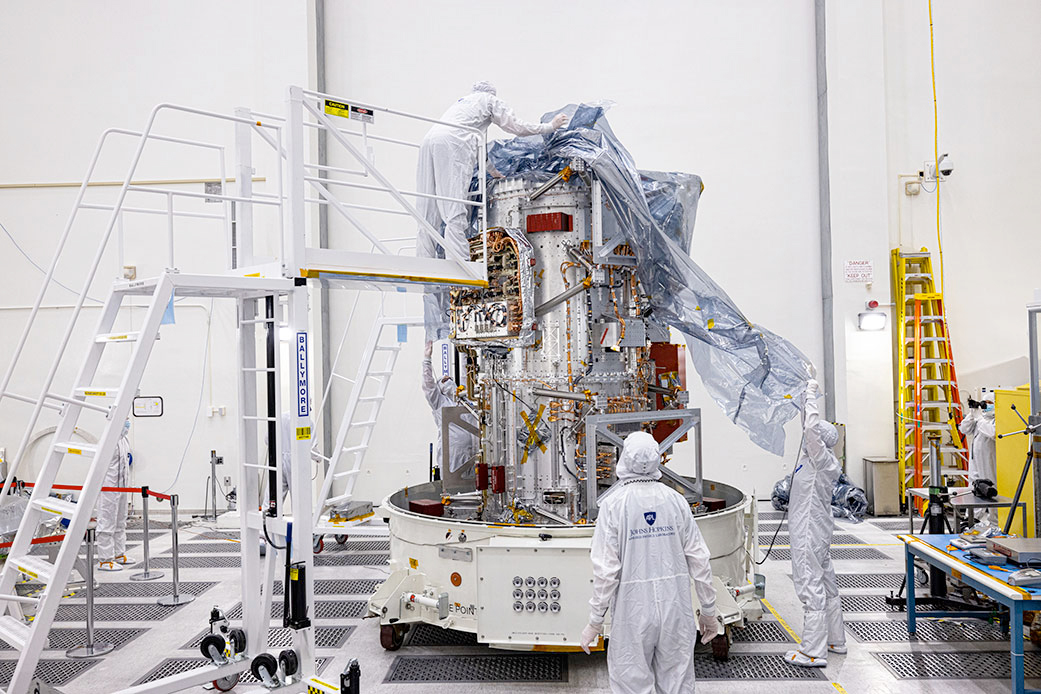

Above: Engineers and technicians unwrap and inspect the main body of NASA’s Europa Clipper spacecraft after it was built and delivered by the Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, to the agency’s Jet Propulsion Laboratory in Southern California in early June. (NASA/JPL-Caltech/Johns Hopkins APL/Ed Whitman)

The spacecraft body is the mission's workhorse. Standing 10 feet (3 meters) tall and 5 feet (1.5 meters) wide, it's an aluminum cylinder integrated with electronics, radios, thermal loop tubing, cabling, and the propulsion system. With its solar arrays and other deployable equipment stowed for launch, Europa Clipper will be as large as an SUV; when extended, the solar arrays make the craft the size of a basketball court. It is the largest NASA spacecraft ever developed for a planetary mission.

"It's an exciting time for the whole project team and a huge milestone," said Jordan Evans, the mission's project manager at JPL. "This delivery brings us one step closer to launch and the Europa Clipper science investigation."

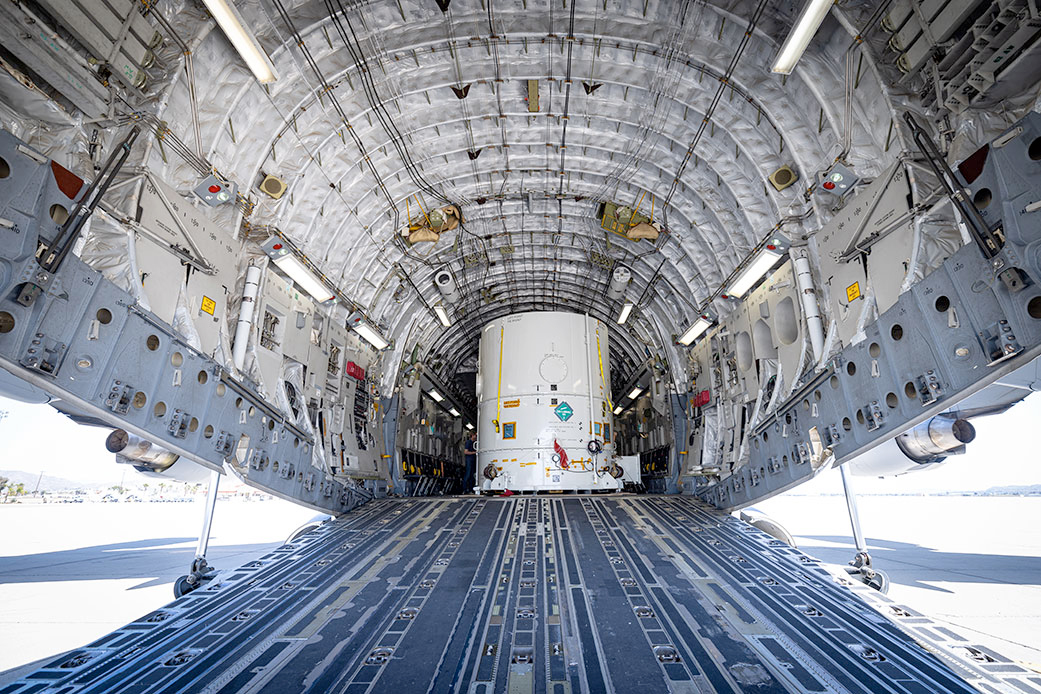

Above: The main body of NASA’s Europa Clipper spacecraft is seen in its shipping container, just after arriving aboard a C-17 cargo plane at March Air Reserve Base in Riverside County, California. (NASA/JPL-Caltech/Johns Hopkins APL/Ed Whitman)

Set to launch in October 2024, Europa Clipper will conduct nearly 50 flybys of Europa, which scientists are confident harbors an internal ocean containing twice as much water as Earth's oceans combined. And the ocean may currently have conditions suitable for supporting life. The spacecraft's nine science instruments will gather data on Europa's atmosphere, surface, and interior – information that scientists will use to gauge the depth and salinity of the ocean, the thickness of the ice crust, and potential plumes that may be venting subsurface water into space.

Those instruments already have begun arriving at JPL, where the phase known as assembly, test, and launch operations has been underway since March. The ultraviolet spectrograph, called Europa-UVS, arrived in March. Next came the spacecraft's thermal emission imaging instrument, E-THEMIS, delivered by the scientists and engineers leading its development at Arizona State University. E-THEMIS is a sophisticated infrared camera designed to map Europa's temperatures and help scientists find clues about the moon's geological activity – including regions where liquid water may be near the surface.

By the end of 2022, most of the flight hardware and the remainder of the science instruments are expected to be complete.

The Whole Package

The Johns Hopkins Applied Physics Laboratory (APL) in Laurel, Maryland, designed Europa Clipper's body in collaboration with JPL and NASA's Goddard Space Flight Center in Greenbelt, Maryland. "The flight system designed, built, and tested by APL – using a team of hundreds of engineers and technicians – was the physically largest system ever built by APL," said APL's Tom Magner, the mission's assistant project manager.

The work on the main module continues now at JPL.

"What arrived at JPL represents essentially an assembly phase unto itself. Under APL's leadership, this delivery includes work by that institution and two NASA centers. Now the team will take the system to an even higher level of integration," said Evans.

The main structure is actually two stacked aluminum cylinders dotted with threaded holes for bolting on the spacecraft's cargo: the radio frequency module, radiation monitors, propulsion electronics, power converters, and wiring. The radio frequency subsystem will power eight antennas, including an enormous high-gain antenna that measures 10 feet (3 meters) wide. The structure's web of electrical wires and connectors, called the harness, weighs 150 pounds (68 kilograms) by itself; if stretched out, it would run almost 2,100 feet (640 meters) – twice the perimeter of a football field.

See more images of Europa Clipper coming together.

The heavy-duty electronics vault, built to withstand the intense radiation of the Jupiter system, will be integrated with the main spacecraft structure along with the science instruments.

Inside the main body of the spacecraft are two tanks – one to hold fuel, one for oxidizer – and the tubing that will carry their contents to an array of 24 engines, where they will combine to create a controlled chemical reaction that produces thrust.

"Our engines are dual purpose," said JPL's Tim Larson, the deputy project manager. "We use them for big maneuvers, including when we approach Jupiter and need a large burn to be captured in Jupiter's orbit. But they're also designed for smaller maneuvers to manage the attitude of the spacecraft and to fine tune the precision flybys of Europa and other solar system bodies along the way."

Those big and small maneuvers will come into play a lot during the six-year, 1.8-billion-mile (2.9-billion-kilometer) journey to this ocean world, which Europa Clipper will begin investigating in earnest in 2031.

posted 08-16-2022 10:00 AM

NASA's Europa Clipper Spacecraft Kicks Assembly Into High Gear

The core of NASA's Europa Clipper spacecraft has taken center stage in the Spacecraft Assembly Facility at the agency's Jet Propulsion Laboratory in Southern California. Standing 10 feet (3 meters) high and 5 feet (1.5 meters) wide, the craft's main body will for the next two years be the focus of attention in the facility's ultra-hygienic High Bay 1 as engineers and technicians assemble the spacecraft for its launch to Jupiter's moon Europa in October 2024.

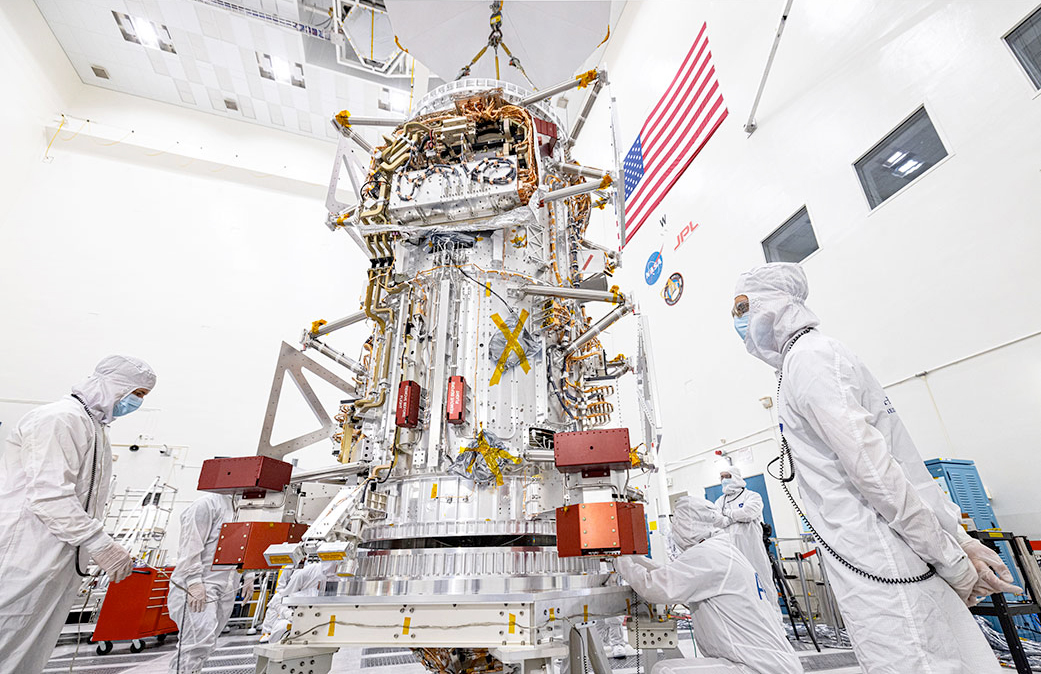

Above: Standing 10 feet (3 meters) high, the core of NASA's Europa Clipper will be the focus of attention in High Bay 1 of JPL's storied Spacecraft Assembly Facility, as engineers and technicians assemble the spacecraft for a 2024 launch. (NASA/JPL-Caltech)

Scientists believe the ice-enveloped moon harbors a vast internal ocean that may have conditions suitable for supporting life. During nearly 50 flybys of Europa, the spacecraft's suite of science instruments will gather data on the moon's atmosphere, surface, and interior – information that scientists will use to gauge the depth and salinity of the ocean, the thickness of the ice crust, and potential plumes that may be venting subsurface water into space.

Several of Europa Clipper's science instruments already have been completed and will be installed on the spacecraft at JPL. Most recently, the plasma-detection instrument, called the Plasma Instrument for Magnetic Sounding, and the Europa Imaging System wide-angle camera arrived from the Johns Hopkins Applied Physics Laboratory (APL), in Laurel, Maryland. The thermal-emission imaging instrument, called E-THEMIS, and the ultraviolet spectrograph, Europa-UVS, have already been installed on the spacecraft's nadir deck, which will support many of the instrument sensors by stabilizing them to ensure they are oriented correctly.

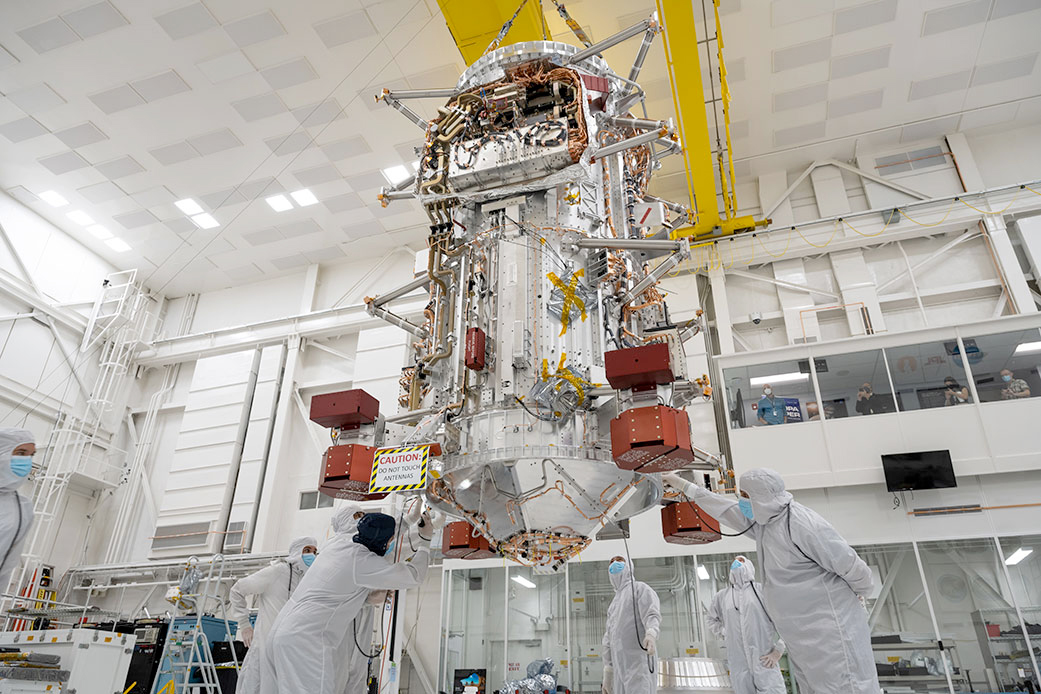

Above: Engineers and technicians use a crane to lift the core of NASA's Europa Clipper spacecraft in the High Bay 1 clean room of JPL's Spacecraft Assembly Facility. (NASA/JPL-Caltech)

Fabricated at JPL, this key piece of hardware will soon move into the Spacecraft Assembly Facility's High Bay 1, the same clean room where historic missions such as Galileo, Cassini, and all of NASA's Mars rovers were built.

Also moving soon to High Bay 1 will be the aluminum electronics vault, which will be bolted to the main body of the spacecraft, protecting the electronics inside from Jupiter's intense radiation. The electronics enable Europa Clipper's computer to communicate with the spacecraft's antennae, science instruments, and the subsystems that will keep them alive.

Bright copper cabling snaking around the orbiter's aluminum core contains thousands of wires and connectors handcrafted at APL. If placed end to end, the cabling would stretch almost 2,100 feet (640 meters) – enough to wrap around a U.S. football field twice.

Above: Europa Clipper's vault, with the nadir deck attached, is prepared for a move to the High Bay 1 clean room of the Spacecraft Assembly Facility at JPL. The vault will protect the spacecraft's electronics, while the nadir deck will provide a stable platform for science instruments. (NASA/JPL-Caltech)

Inside the core are Europa Clipper's two propulsion tanks. The fuel and oxidizer they'll hold will flow to an array of 24 engines, where they will create a controlled chemical reaction to produce thrust in deep space.

By the end of 2022, most of the flight hardware and the remainder of the science instruments are expected to be complete. Then, the next steps will be a wide variety of tests as the spacecraft moves toward its 2024 launch period. After traveling for nearly six years and over 1.8 billion miles (2.9 billion kilometers), it will achieve orbit around Jupiter in 2030.

posted 06-01-2023 07:20 PM

A poem for Europa Clipper: US Poet Laureate Ada Limón reveals ode to fly on NASA Jupiter moon mission

"It is not darkness that unites us, not the cold distance of space, but the offering of water..."

Those words, written by U.S. Poet Laureate Ada Limón, are part of an ode that will fly on a robotic probe to a distant icy moon. Now, with the poem's reveal, the Library of Congress is inviting the public to add their names to Limón's tribute, like a message in a bottle from Earth.

posted 03-08-2024 02:00 PM

Water-themed plaque to fly on Europa Clipper to Jupiter's icy moon

A NASA spacecraft dedicated to studying a small ocean world will carry with it a metal plaque etched with the ripples created by the many ways humans say "water."

The Europa Clipper Vault Plate was revealed by NASA on Friday (March 8) at the opening session of the South by Southwest (SXSW) conference in Austin, Texas. Lori Glaze, NASA's director of planetary science, joined U.S. Poet Laureate Ada Limón on stage to discuss the intersection of space and art, as well as again hear Limón recite her ode, "In Praise of Mystery: A Poem for Europa," which is etched in her handwriting on one side of the plate bound for Jupiter's second moon.

posted 10-14-2024 12:26 PM

NASA's Europa Clipper probe launches on SpaceX Falcon Heavy to Jupiter icy moon

NASA's largest-ever interplanetary spacecraft is now on its way to our solar system's largest planet where it will study one of the oldest-known moons to begin answering one of humanity's most fundamental questions: Does life exist beyond Earth?

Europa Clipper lifted off atop an expendable SpaceX Falcon Heavy rocket on Monday (Oct. 14), setting off on a six-year journey to Jupiter. Once in orbit around the giant gas planet, the probe will make 49 flybys of the ice-covered Galilean satellite Europa to search for the ingredients of life — water, chemistry and energy — which scientists believe may exist beneath the moon's thick icy crust today.

posted 10-14-2024 03:03 PM

Solar Arrays Fully Deployed

Mission controllers at NASA's Jet Propulsion Laboratory in Southern California have confirmed that the two solar arrays flanking the main body of the Europa Clipper spacecraft have fully unfolded. This means that the spacecraft now has a reliable source of power for the rest of its journey to Jupiter and tour of the Jovian system.

The process began with the cutting of hold-downs keeping the solar arrays folded against the sides of the spacecraft and then the unfolding of one "wing" at a time. With each wing measuring 46.5 feet (14 meters) long, Europa Clipper's solar arrays are the biggest NASA has ever developed for a planetary mission.
