James Webb Space Telescope (JWST)

The James Webb Space Telescope (sometimes called JWST) is a large, infrared-optimized space telescope.

Webb will find the first galaxies that formed in the early Universe, connecting the Big Bang to our own Milky Way Galaxy. Webb will peer through dusty clouds to see stars forming planetary systems, connecting the Milky Way to our own Solar System.

Webb's instruments will be designed to work primarily in the infrared range of the electromagnetic spectrum, with some capability in the visible range.

Webb will have a large mirror, 6.5 meters (21.3 feet) in diameter and a sunshield the size of a tennis court. Both the mirror and sunshade won't fit onto the rocket fully open, so both will fold up and open once Webb is in outer space. Webb will reside in an orbit about 1.5 million km (1 million miles) from the Earth.

The James Webb Space Telescope was named after a former NASA Administrator.

posted 11-10-2010 05:41 PM

John
Casani, chair of the Independent Comprehensive Review Panel, summarized his group's findings in a Nov. 5 letter (PDF) to NASA Administrator Charles Bolden.

In summary, the Panel concluded that the JWST Project is in very good technical shape. There is no reason to question the technical integrity of the design or of the team's ability to deliver a quality product to orbit. The problems causing cost growth and schedule delays have been associated with budgeting and program management, not technical performance.

NASA Administrator Bolden Statement On The Webb Telescope

NASA Administrator Charles Bolden made the following statement today on the release of an independent panel's review of the James Webb Space Telescope project:

"I appreciate the work done by the James Webb Space Telescope's (JWST) Independent Comprehensive Review Panel (ICRP), and want to thank Sen. Barbara Mikulski for initiating this review. The ICRP report makes clear that, while JWST technical performance has been consistent with the project plan, the cost performance and coordination have been lacking, and I agree with these findings.

"No one is more concerned about the situation we find ourselves in than I am, and that is why I am reorganizing the JWST Project at Headquarters and the Goddard Space Flight Center, and assigning a new senior manager at Headquarters to lead this important effort. The new JWST program director will have a staff of technical and cost personnel provided by the Science Mission Directorate and report to the NASA associate administrator. This will ensure more direct reporting to me and increase the project's visibility within the agency's management structure. Additionally, the Goddard Space Flight Center's project office has been reorganized to report directly to the center director. That office is undergoing personnel changes to specifically address the issues identified in the report.

"I am encouraged the ICRP verified our assessment that JWST is technically sound, and that the project continues to make progress and meet its milestones. However, I am disappointed we have not maintained the level of cost control we strive to achieve -- something the American taxpayer deserves in all of our projects.

"NASA is committed to finding a sustainable path forward for the program based on realistic cost and schedule assessments. I would like to express my appreciation to the ICRP's chair, John Casani, and the rest of the team for producing an objective, unbiased and comprehensive assessment."

posted 12-13-2010 08:04 PM

Got Your Back:

Webb has a primary mirror six times larger than the one found on the Hubble Space Telescope. In order for a primary mirror 21 feet in diameter to travel into space, it has to be broken up into multiple segments — in this case, 18 of them.

But for the 18 to act as one primary mirror, they have to be adjusted while in orbit. How this task is achieved is the focus of this episode of Behind the Webb: Got Your Back.

posted 04-16-2011 08:22 PM

NASA's Next Generation Space Telescope Marks Key Milestone

The first six of 18 segments that will form NASA's James Webb Space Telescope's primary mirror for space observations will begin final round-the-clock cryogenic testing this week. These tests will confirm the mirrors will respond as expected to the extreme temperatures of space prior to integration into the telescope's permanent housing structure.

The X-ray and Cryogenic Facility at NASA's Marshall Space Flight Center in Huntsville, Ala. will provide the space-like environment to help engineers measure how well the telescope will image infrared sources once in orbit.

Credit: NASA/MSFC/David Higginbotham

Above: NASA engineer Ernie Wright looks on as the first six flight ready James Webb Space Telescope's primary mirror segments are prepped to begin final cryogenic testing at NASA's Marshall Space Flight Center in Huntsville, Ala.

Each mirror segment measures approximately 4.3 feet (1.3 meters) in diameter to form the 21.3 foot (6.5 meters), hexagonal telescope mirror assembly critical for infrared observations. Each of the 18 hexagonal-shaped mirror assemblies weighs approximately 88 pounds (40 kilograms). The mirrors are made of a light and strong metal called beryllium, and coated with a microscopically thin coat of gold to enabling the mirror to efficiently collect light.

"The six flight mirrors sitting ready for cryogenic acceptance tests have been carefully polished to their exact prescriptions," said Helen Cole, project manager for Webb activities at Marshall. "It's taken the entire mirror development team, including all the partners, over eight years of fabrication, polishing and cryogenic testing to get to this point."

During cryogenic testing, the mirrors are subjected to extreme temperatures dipping to minus 415 degrees Fahrenheit (-248C) in a 7,600 cubic-foot (approximately 215 cubic meter) helium-cooled vacuum chamber. This permits engineers to measure in extreme detail how the shape of the mirror changes as it cools. This simulates the actual processes each mirror will undergo as it changes shape over a range of operational temperatures in space.

"This final cryotest is expected to confirm the exacting processes that have resulted in flight mirrors manufactured to tolerances as tight as 20 nanometers, or less than one millionth of an inch," said Scott Texter, Webb Optical Telescope element manager at Northrop Grumman in Redondo Beach, Calif.

A second set of six mirror assemblies will arrive at Marshall in July to begin testing, and the final set of six will arrive during the fall.

The Webb Telescope is NASA's next-generation space observatory and successor to the Hubble Space Telescope. The most powerful space telescope designed, Webb will observe the most distant objects in the universe, provide images of the very first galaxies ever formed and help identify unexplored planets around distant stars. The telescope will orbit approximately one million miles from Earth.

"The Webb telescope continues to make good technological progress," said Rick Howard, JWST Program Director in Washington. "We’re currently developing a new baseline cost and schedule to ensure the success of the program."

The telescope is a combined project of NASA, the European Space Agency and the Canadian Space Agency. Northrop Grumman is the prime contractor under NASA's Goddard Space Flight Center in Greenbelt, Md. Ball Aerospace & Technologies Corp. in Boulder, Colo., is responsible for mirror development. L-3- Tinsley Laboratories Inc. in Richmond, Calif. is responsible for mirror grinding and polishing.

posted 06-17-2011 04:47 PM

James Webb Space Telescope ISIM on 'Spin Cycle'

Prior to taking a new telescope into space, engineers must put the spacecraft and its instruments through a "spin cycle" test for durability to ensure they'll still work after experiencing the forces of a rocket launch. Finding out they don't work once they're in orbit is too late. The structure that houses the science instruments of the James Webb Space Telescope is undergoing that cycle of tests during the weeks of May 23 and 30 at NASA's Goddard Space Flight Center in Greenbelt, Md. This structure is called the Integrated Science Instrument Module, or ISIM.

The Webb telescope will experience significant shaking and gravitational forces when it is launched on the large Ariane V rocket. The ISIM structure will house the four main scientific instruments of the telescope.

During the testing process, as the ISIM structure is being spun and shaken, engineers take measurements to compare with their computer models. If there are discrepancies, the engineers hunt for the reasons so they can address them. The huge centrifuge will spin at speeds close to 11 rpm, exposing the ISIM structure to about 10 times the force of gravity.

Webb is the successor to the Hubble Space Telescope and will serve thousands of astronomers worldwide. Webb will study the history of our Universe, ranging from the first luminous glows after the Big Bang, to the formation of planetary systems capable of supporting life on planets like Earth, to the evolution of our own Solar System. The Webb telescope is a joint mission of NASA, the European Space Agency and Canadian Space Agency.

posted 07-07-2011 08:01 PM

Editor's note: The U.S. House of Representatives has proposed canceling the James Webb Space Telescope as part of cuts to NASA's 2012 Fiscal Year budget.

To keep this topic focused on JWST development efforts (so long as the telescope remains funded), please direct discussion of the budget to this thread.

posted 09-13-2011 09:15 AM

NASA's Webb Telescope Completes Mirror Coating Milestone

NASA's James Webb Space Telescope has reached a major milestone in its development. The mirrors that will fly aboard the telescope have completed the coating process at Quantum Coating Inc. in Moorestown, N.J.

The telescope's mirrors have been coated with a microscopically thin layer of gold, selected for its ability to properly reflect infrared light from the mirrors into the observatory's science instruments. The coating allows the Webb telescope's "infrared eyes" to observe extremely faint objects in infrared light. Webb's mission is to observe the most distant objects in the universe.

"Finishing all mirror coatings on schedule is another major success story for the Webb telescope mirrors," said Lee Feinberg, NASA Optical Telescope Element manager for the Webb telescope at the agency's Goddard Space Flight Center in Greenbelt, Md. "These coatings easily meet their specifications, ensuring even more scientific discovery potential for the Webb telescope."

Credit: NASA/Chris Gunn

Above: The first six flight ready James Webb Space Telescope's primary mirror segments are prepped to begin final cryogenic testing at NASA's Marshall Space Flight Center in Huntsville, Ala.

The Webb telescope has 21 mirrors, with 18 mirror segments working together as one large 21.3-foot (6.5-meter) primary mirror. The mirror segments are made of beryllium, which was selected for its stiffness, light weight and stability at cryogenic temperatures. Bare beryllium is not very reflective of near-infrared light, so each mirror is coated with about 0.12 ounce of gold.

The last full size (4.9-foot /1.5-meter) hexagonal beryllium primary mirror segment that will fly aboard the observatory recently was coated, completing this stage of mirror production.

The Webb telescope is the world's next-generation space observatory and successor to the Hubble Space Telescope. The most powerful space telescope ever built, the Webb telescope will provide images of the first galaxies ever formed, and explore planets around distant stars. It is a joint project of NASA, the European Space Agency and the Canadian Space Agency.

Mirror manufacturing began eight years ago with blanks made out of beryllium, an extremely hard metal that holds its shape in the extreme cold of space where the telescope will orbit. Mirror coating began in June 2010. Several of the smaller mirrors in the telescope, the tertiary mirror and the fine steering mirror, were coated in 2010. The secondary mirror was finished earlier this year.

Quantum Coating Inc. (QCI) is under contract to Ball Aerospace and Northrop Grumman. QCI constructed a new coating facility and clean room to coat the large mirror segments. QCI developed the gold coating for performance in certain areas, such as uniformity, cryogenic cycling, durability, stress and reflectance, in a two-year effort prior to coating the first flight mirror.

In the process, gold is heated to its liquid point, more than 2,500 Fahrenheit (1,371 degrees Celsius), and evaporates onto the mirror's optical surface. The coatings are 120 nanometers, a thickness of about a millionth of an inch or 200 times thinner than a human hair.

"We faced many technical challenges on the Webb mirror coating program," said Ian Stevenson, director of coating at Quantum Coating. "One of the most daunting was that all flight hardware runs had to be executed without a single failure."

The mirror segments recently were shipped to Ball Aerospace in Boulder, Colo., where actuators are attached that help move the mirror. From there, the segments travel to the X-ray and Calibration Facility at NASA's Marshall Space Flight Center in Huntsville, Ala., to undergo a final test when they will be chilled to -400 Fahrenheit (-240 degrees Celsius). The last batch of six flight mirrors should complete the test by the end of this year.

posted 09-19-2011 02:44 PM

Tests Under Way On The Sunshield For NASA's Webb Telescope

NASA is testing an element of the sunshield that will protect the James Webb Space Telescope's mirrors and instruments during its mission to observe the most distant objects in the universe.

The sunshield will consist of five tennis court-sized layers to allow the Webb telescope to cool to its cryogenic operating temperature of minus 387.7 degrees Fahrenheit (40 Kelvin).

Credit: NASA/Northrop Grumman

Above: The five-layer James Webb Space Telescope sunshield consists of thin membranes made from a polymer-based film and supporting equipment such as spreader bars, booms, cabling, and containment shells.

Testing began early this month at ManTech International Corp.'s Nexolve facility in Huntsville, Ala., using flight-like material for the sunshield, a full-scale test frame and hardware attachments. The test sunshield layer is made of Kapton, a very thin, high-performance plastic with a reflective metallic coating, similar to a Mylar balloon. Each sunshield layer is less than half the thickness of a sheet of paper. It is stitched together like a quilt from more than 52 individual pieces because manufacturers do not make Kapton sheets as big as a tennis court.

The tests are expected to be completed in two weeks.

"The conclusion of testing on this full size layer will be the final step of the sunshield's development program and provides the confidence and experience to manufacture the five flight layers," said Keith Parrish, Webb Sunshield manager at NASA's Goddard Space Flight Center in Greenbelt, Md.

During testing, engineers use a high-precision laser radar to measure the layer every few inches at room temperature and pressure, creating a 3D map of the material surface, which is curved in multiple directions. The map will be compared to computer models to see if the material behaved as predicted, and whether critical clearances with adjacent hardware are achieved.

The test will be done on all five layers to give engineers a precise idea of how the entire sunshield will behave once in orbit. Last year, a one-third-scale model of the sunshield was tested in a chamber that simulated the extreme temperatures it will experience in space. The test confirmed the sunshield will allow the telescope to cool to its operating temperature.

After the full-size sunshield layers complete testing and model analysis, they will be sent to Northrop Grumman in Redondo Beach Calif., where engineers verify the process of how the layers will unfurl in space. There the sunshield layers will be folded, much like a parachute, so they can be safely stowed for launch.

posted 04-24-2012 07:45 PM

NASA's Webb Telescope Flight Backplane Section Completed

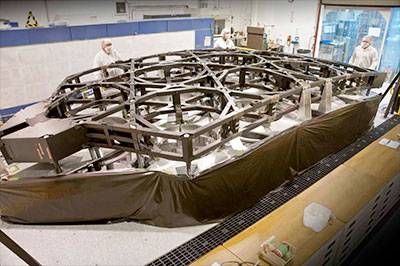

The center section of the backplane structure that will fly on NASA's James Webb Space Telescope has been completed, marking an important milestone in the telescope's hardware development. The backplane will support the telescope's beryllium mirrors, instruments, thermal control systems and other hardware throughout its mission.

Credit: NASA/ATK

Above: The center section of the James Webb Space Telescope flight backplane, or Primary Mirror Backplane Support Structure, at ATK's manufacturing facility in Magna, Utah.

"Completing the center section of the backplane is an important step in completing the sophisticated telescope structure," said Lee Feinberg, optical telescope element manager for the Webb telescope at NASA's Goddard Space Flight Center in Greenbelt, Md. "This fabrication success is the result of innovative engineering dating back to the technology demonstration phase of the program."

The center section, or primary mirror backplane support structure, will hold Webb's 18-segment, 21-foot-diameter primary mirror nearly motionless while the telescope peers into deep space. The center section is the first of the three sections of the backplane to be completed.

Measuring approximately 24 by 12 feet yet weighing only 500 pounds, the center section of the backplane meets unprecedented thermal stability requirements. The backplane holds the alignment of the telescope's optics through the rigors of launch and over a wide range of operating temperatures, which reach as cold as - 406 degrees Fahrenheit. During science operations, the backplane precisely keeps the 18 primary mirror segments in place, permitting the mirrors to form a single, pristine shape needed to take sharp images.

posted 06-18-2012 09:52 AM

First flight instrument delivered for James Webb Space Telescope

The first of four instruments to fly aboard NASA's James Webb Space Telescope (Webb) has been delivered to NASA. The Mid-Infrared Instrument (MIRI) will allow scientists to study cold and distant objects in greater detail than ever before.

MIRI arrived at NASA's Goddard Space Flight Center in Greenbelt, Md., on May 29. It has been undergoing inspection before being integrated into Webb’s science instrument payload known as the Integrated Science Instrument Module (ISIM).

Assembled at and shipped from the Science and Technology Facilities Council's Rutherford Appleton Laboratory in the United Kingdom, MIRI was developed by a consortium of 10 European institutions and NASA's Jet Propulsion Laboratory (JPL) in Pasadena, Calif., after having been handed over to the European Space Agency.

MIRI will observe light with wavelengths in the mid-infrared range of 5 microns to 28 microns, which is a longer wavelength than human eyes can detect. It is the only instrument of the four with this particular ability to observe the physical processes occurring in the cosmos.

"MIRI will enable Webb to distinguish the oldest galaxies from more evolved objects that have undergone several cycles of star birth and death," said Matt Greenhouse, ISIM project scientist at Goddard. "MIRI also will provide a unique window into the birth places of stars which are typically enshrouded by dust that shorter wavelength light cannot penetrate."

MIRI's sensitive detectors will allow it to observe light, cool stars in very distant galaxies; unveil newly forming stars within our Milky Way; find signatures of the formation of planets around stars other than our own; and take imagery and spectroscopy of planets, comets and the outermost bits of debris in our solar system. MIRI's images will enable scientists to study an object’s shape and structure.

posted 02-03-2014 09:14 AM

James Webb Space Telescope Passes a Mission Milestone

NASA's James Webb Space Telescope has passed its first significant mission milestone for 2014 — a Spacecraft Critical Design Review (SCDR) that examined the telescope's power, communications and pointing control systems.

"This is the last major element-level critical design review of the program," said Richard Lynch, NASA Spacecraft Bus Manager for the James Webb Space Telescope at NASA's Goddard Space Flight Center in Greenbelt, Md. "What that means is all of the designs are complete for the Webb and there are no major designs left to do."

During the SCDR, the details, designs, construction and testing plans, and the spacecraft's operating procedures were subjected to rigorous review by an independent panel of experts. The week-long review involved extensive discussions on all aspects of the spacecraft to ensure the plans to finish construction would result in a vehicle that enables the powerful telescope and science instruments to deliver their unique and invaluable views of the universe.

"While the spacecraft that carries the science payload for Webb may not be as glamorous as the telescope, it's the heart that enables the whole mission," said Eric Smith, acting program director and program scientist for the Webb Telescope at NASA Headquarters in Washington. "By providing many services including telescope pointing and communication with Earth, the spacecraft is our high tech infrastructure empowering scientific discovery."

Goddard Space Flight Center manages the mission. Northrop Grumman in Redondo Beach, Calif., leads the design and development effort.

"Our Northrop Grumman team has worked exceptionally hard to meet this critical milestone on an accelerated schedule, following the replan," said Scott Willoughby, Northrop Grumman vice president and James Webb Space Telescope program manager in Redondo Beach, Calif. "This is a huge step forward in our progress toward completion of the Webb Telescope."

posted 02-03-2014 09:15 AM

NASA Administrator Bolden, Senator Mikulski View Progress on James Webb Space Telescope

NASA Administrator Charles Bolden and Senator Barbara Mikulski of Maryland congratulated the James Webb Space Telescope team Monday (Feb. 3) for the delivery of all flight instruments and primary mirrors to NASA's Goddard Space Flight Center in Greenbelt, Md.

Their comments came in a morning news conference at Goddard, where NASA's flagship science project will be assembled in preparation for launch in 2018.

"The Hubble Space Telescope has already rewritten the science books. Going from Hubble to the James Webb Space Telescope is like going from a biplane to the jet engine," said Mikulski, Chairwoman of the Senate Appropriations Committee that funds NASA. "As Chairwoman, I've continued to fight for funds in the federal checkbook to keep the James Webb Space Telescope mission on track, supporting jobs today and jobs tomorrow at Goddard. NASA Goddard is home to leaders in Maryland's space and innovation economies, making discoveries that not only win Nobel Prizes, but create new products and jobs. The James Webb Space Telescope will keep us in the lead for astronomy for decades to come, spurring the innovation and technology that keep America's economy rolling."

NASA's James Webb Space Telescope will be the most powerful space telescope ever built, capable of observing the most distant objects in the universe, providing images of the first galaxies formed, and observing unexplored planets around distant stars. A joint project of NASA, the European Space Agency (ESA) and the Canadian Space Agency (CSA), Webb is the successor to the agency's Hubble Space Telescope.

All 18 of Webb's primary mirror segments are now housed in the Goddard clean room. Its 1.3 million cubic feet of dust-free space make the clean room one of the world's largest. All four of Webb's science instruments are within feet of the mirrors. The telescope's mirror and instruments will capture images of the universe and break down the spectra of incoming light to analyze the properties of galaxies, stars, and the atmospheres of planets beyond our solar system.

"The recent completion of the critical design review for Webb, and the delivery of all its instruments to Goddard, mark significant progress for this mission," said Bolden. "The design, build, delivery and testing of these components took meticulous planning and action here at Goddard and with teams across the country, as well as with our international partners. It's very exciting to see it all coming together on schedule. And I want to thank our good friend Senator Barbara Mikulski for her support. We wouldn't be here today without her championing of this critical capability for NASA. I know she understands just how important it is to continue to push the boundaries of what we can do in space."

"This past year has been one of significant progress for the Webb telescope," said Goddard Director Chris Scolese during the news conference. "The NASA Goddard team is working tirelessly with our partners to keep the program on track as we develop this newest scientific tool to explore the universe."

The news conference featured a video presentation hosted by Webb's deputy project manager and technical engineer, Paul Geithner, from inside the clean room. He explained how the 18 mirror segments will be coupled to form the massive space telescope's 21-foot-wide main mirror. This work, and the assembly of the rest of the telescope, will begin once the telescope structure arrives at Goddard.

"Each of these instruments has a unique function to collect data about the universe," Geithner said, pointing to four science instruments that will be located inside the heart of the telescope.

One of these instruments, the University of Arizona's Near-Infrared Camera, will be Webb's primary camera and will take images of the first stars and galaxies to form in the universe, along with many other astronomical targets.

A second instrument, ESA's Near-Infrared Spectrograph (NIRSpec), will analyze the spectra and composition of as many as 100 objects at once. Airbus Defence and Space, formerly known as EADS/Astrium, built NIRSpec with components provided by Goddard.

A third instrument, ESA's Mid-Infrared Instrument, has both a camera and a spectrograph, which sees light in the mid-infrared region of the electromagnetic spectrum -- wavelengths longer than the human eye can see. This instrument was developed in collaboration with NASA's Jet Propulsion Laboratory in Pasadena, Calif.

A fourth instrument, CSA's Fine Guidance Sensor and Near-infrared Imager and Slitless Spectrograph, will allow Webb to point precisely at its target in order to obtain high-quality images, and also will provide other valuable science modes for investigating both the distant universe and nearby exoplanets.

Northrop Grumman Aerospace Systems is building Webb's sunshield. Once in space, the sunshield will act as an umbrella to keep heat radiating from the sun and Earth from reaching scientific instruments that must stay cold to function properly. The Webb telescope will be fully assembled by 2016 and then moved to a clean room at NASA's Johnson Space Center for additional testing.

posted 07-09-2014 06:34 AM

Testing Completed on NASA's James Webb Space Telescope Backplane

NASA's James Webb Space Telescope has reached another development milestone with the completion of static load testing of its primary mirror backplane support structure (PMBSS) moving the telescope one step closer to its 2018 launch.

The PMBSS is the stable platform that holds the telescope's science instruments and the 18 beryllium mirror-segments that form the 21-foot-diameter primary mirror nearly motionless while the telescope peers into deep space. The primary mirror is the largest mirror in the telescope -- the one starlight will hit first.

Above: The backplane of NASA’s James Webb Space Telescope was mounted to a structure for static load testing to verify it can withstand the rigors of launch and hold the weight needed to support the telescope in space. Credit: Northrop Grumman

"Static testing demonstrates the backplane has the structural integrity to withstand the forces and vibrations of launch and is the final test prior to starting the integration of the backplane with the rest of the telescope," said Lee Feinberg, NASA’s Optical Telescope Element manager at the agency’s Goddard Space Flight Center in Greenbelt, Maryland.

The Northrop Grumman Corporation and ATK of Magna, Utah, completed the testing before delivering the structure to Northrop Grumman's facilities in Redondo Beach, California.

"This is the largest, most complex cryogenically stable structure humans have ever built," said Scott Texter, Optical Telescope Element manager for Northrop Grumman. "Completion of the static testing verifies it can hold the weight it is designed to hold. Now the structural backbone of the observatory is officially verified and ready for integration."

Despite its size and complexity, the PMBSS is one of the most lightweight precision-alignment truss structures ever designed and built. When fully deployed, it measures approximately 24 feet tall by 19.5 feet wide by more than 11.5 feet deep, and weighs only 2,180 pounds. Once fully assembled and populated, the PMBSS will support a mission payload and instruments that weigh more than 7,300 pounds. With a full launch load, it will support the equivalent of 12 times its own weight.

The PMBSS is designed to minimize changes in the shape of the telescope caused when one side is hotter than the other. While the telescope is operating at a range of extremely cold temperatures, between -406 and -343 degrees Fahrenheit, the backplane must not move more than 38 nanometers, approximately 1/1,000 the diameter of a human hair.

Under contract from NASA, Northrop Grumman is the lead contractor for the design and development of the Webb telescope's optics, sunshield and spacecraft. ATK designed, engineered and constructed more than 10,000 parts for the PMBSS at its facilities in Magna. They used composite parts, lightweight graphite materials, state-of-the-art material sciences and advanced fabrication techniques to build the structure.

The next step for the space telescope is to integrate the composite structures with the deployment mechanisms to create the overall Optical Telescope Element (OTE) structure. The OTE structure will then be shipped to Goddard for integration with the mirrors. NASA and Northrop Grumman will perform cryogenic testing of the PMBSS structure after mirror integration is complete.

posted 07-25-2014 02:50 PM

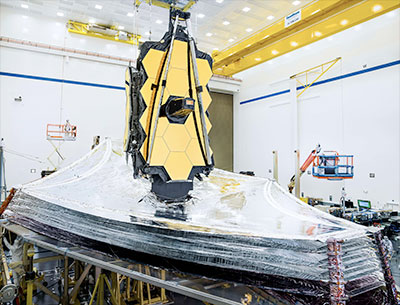

NASA's Webb Sunshield Stacks Up to Test

The Sunshield on NASA's James Webb Space Telescope is the largest part of the observatory—five layers of thin membrane that must unfurl reliably in space to precise tolerances. Last week, for the first time, engineers stacked and unfurled a full-sized test unit of the Sunshield and it worked perfectly.

The Sunshield is about the length of a tennis court, and will be folded up like an umbrella around the Webb telescope’s mirrors and instruments during launch. Once it reaches its orbit, the Webb telescope will receive a command from Earth to unfold, and separate the Sunshield's five layers into their precisely stacked arrangement with its kite-like shape.

The Sunshield test unit was stacked and expanded at a cleanroom in the Northrop Grumman facility in Redondo Beach, California.

The Sunshield separates the observatory into a warm sun-facing side and a cold side where the sunshine is blocked from interfering with the sensitive infrared instruments. The infrared instruments need to be kept very cold (under 50 K or -370 degrees F) to operate. The Sunshield protects these sensitive instruments with an effective sun protection factor or SPF of 1,000,000 (suntan lotion generally has an SPF of 8-50).

In addition to providing a cold environment, the Sunshield provides a thermally stable environment. This stability is essential to maintaining proper alignment of the primary mirror segments as the telescope changes its orientation to the sun.

posted 04-20-2015 09:40 AM

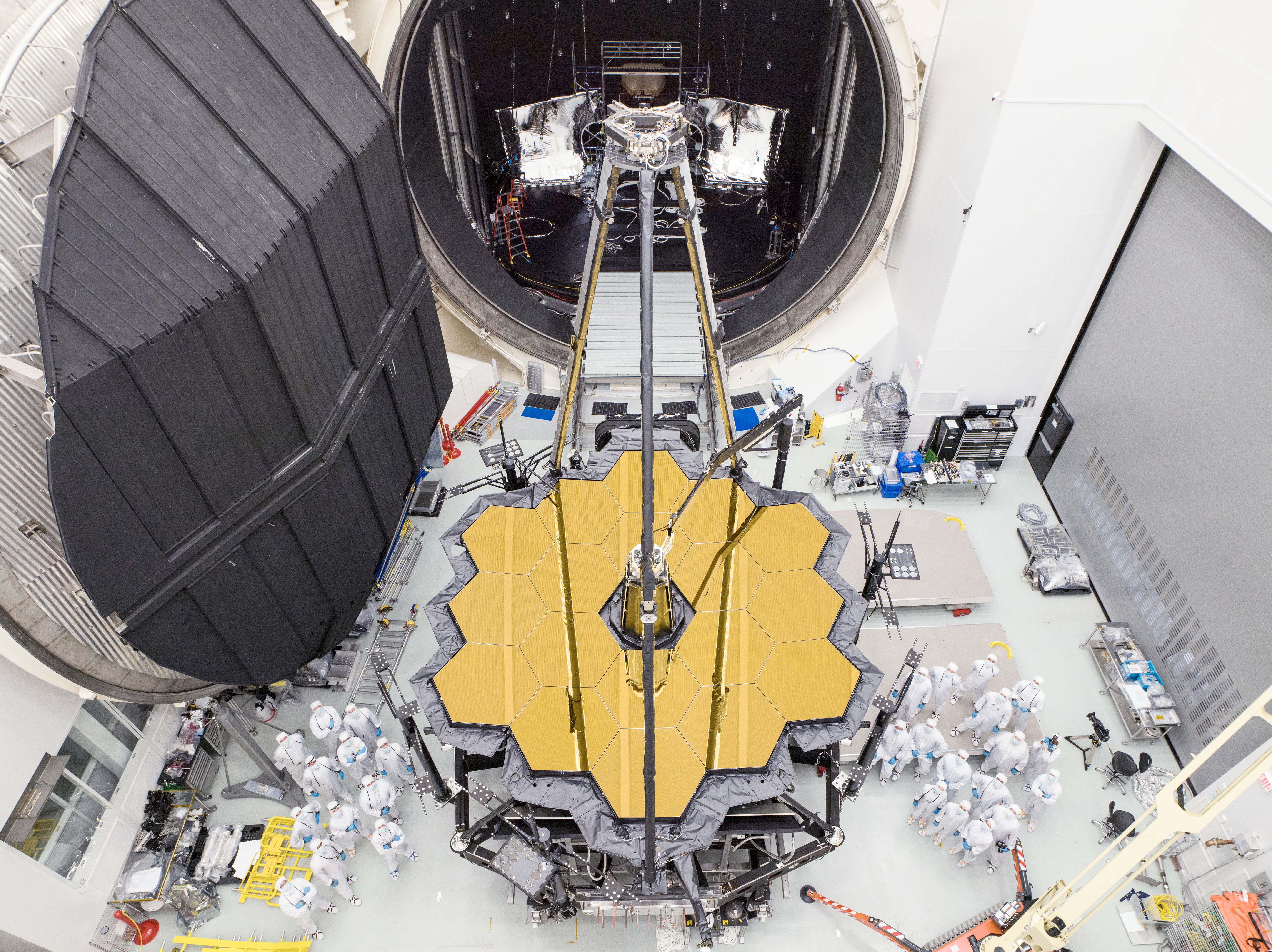

Building Hubble's Successor: Crucial Pathfinder Test Set Up Inside Chamber A

Inside NASA's giant thermal vacuum chamber, called Chamber A, at NASA's Johnson Space Center in Houston, the James Webb Space Telescope's Pathfinder backplane test model, is being prepared for its cryogenic test. Previously used for manned spaceflight missions, this historic chamber is now filled with engineers and technicians preparing for a crucial test.

Exelis developed and installed the optical test equipment in the chamber.

"The optical test equipment was developed and installed in the chamber by Exelis," said Thomas Scorse, Exelis JWST Program Manager. "The Pathfinder telescope gives us our first opportunity for an end-to-end checkout of our equipment."

"This will be the first time on the program that we will be aligning two primary mirror segments together," said Lee Feinberg, NASA Optical Telescope Element Manager. "In the past, we have always tested one mirror at a time but this time we will use a single test system and align both mirrors to it as though they are a single monolithic mirror."

posted 11-25-2015 09:37 AM

NASA's Webb Space Telescope Receives First Mirror Installation

NASA has successfully installed the first of 18 flight mirrors onto the James Webb Space Telescope, beginning a critical piece of the observatory's construction.

Above: An engineer at NASA's Goddard Space Flight Center worked to install the first flight mirror onto the telescope structure at NASA's Goddard Space Flight Center in Greenbelt, Maryland. (NASA/Chris Gunn)

In the clean room at NASA's Goddard Space Flight Center in Greenbelt, Maryland this week, the engineering team used a robot arm to lift and lower the hexagonal-shaped segment that measures just over 4.2 feet (1.3 meters) across and weighs approximately 88 pounds (40 kilograms). After being pieced together, the 18 primary mirror segments will work together as one large 21.3-foot (6.5-meter) mirror. The full installation is expected to be complete early next year.

"The James Webb Space Telescope will be the premier astronomical observatory of the next decade," said John Grunsfeld, astronaut and associate administrator of the Science Mission Directorate at NASA Headquarters in Washington. "This first-mirror installation milestone symbolizes all the new and specialized technology that was developed to enable the observatory to study the first stars and galaxies, examine the formation stellar systems and planetary formation, provide answers to the evolution of our own solar system, and make the next big steps in the search for life beyond Earth on exoplanets."

Several innovative technologies have been developed for the Webb Telescope, which is targeted for launch in 2018, and is the successor to NASA's Hubble Space Telescope. Webb will study every phase in the history of our universe, including the cosmos' first luminous glows, the formation of solar systems capable of supporting life on planets like Earth, and the evolution of our own solar system.

The 18 separate segments unfold and adjust to shape after launch. The mirrors are made of ultra-lightweight beryllium chosen for its thermal and mechanical properties at cryogenic temperatures. Each segment also has a thin gold coating chosen for its ability to reflect infrared light. The telescope's biggest feature is a tennis court sized five-layer sunshield that attenuates heat from the sun more than a million times.

Above: Inside a massive clean room at NASA's Goddard Space Flight Center in Greenbelt, Maryland the James Webb Space Telescope Team prepared for the first flight mirror's installation onto the telescope structure. (NASA/Chris Gunn)

"After a tremendous amount of work by an incredibly dedicated team across the country, it is very exciting to start the primary mirror segment installation process" said Lee Feinberg, James Webb Space Telescope optical telescope element manager at Goddard. "This starts the final assembly phase of the telescope."

The mirrors must remain precisely aligned in space in order for Webb to successfully carry out science investigations. While operating at extraordinarily cold temperatures between minus 406 and minus 343 degrees Fahrenheit, the backplane must not move more than 38 nanometers, approximately one thousandth the diameter of a human hair.

"There have many significant achievements for Webb over the past year, but the installation of the first flight mirror is special," said Bill Ochs, James Webb Space Telescope project manager. "This installation not only represents another step towards the magnificent discoveries to come from Webb, but also the culmination of many years of effort by an outstanding dedicated team of engineers and scientists."

The mirrors were built by Ball Aerospace & Technologies Corp., Boulder, Colorado. Ball is the principal subcontractor to Northrop Grumman for the optical technology and lightweight mirror system.

Above: The James Webb Space Telescope team successfully installed the first flight mirror onto the telescope structure at NASA's Goddard Space Flight Center in Greenbelt, Maryland. (NASA/Chris Gunn)

The James Webb Space Telescope is an international project led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency. NASA works with the international science community to explore our solar system and beyond. We look to unravel mysteries that intrigue us all as we explore to answer big questions, like how did our solar system originate and change over time, and how did the universe begin and evolve, and what will be its destiny?

You can follow the mirror installation on a live webcam.

posted 02-04-2016 12:02 PM

NASA's James Webb Space Telescope Primary Mirror Fully Assembled

The 18th and final primary mirror segment is installed on what will be the biggest and most powerful space telescope ever launched. The final mirror installation Wednesday at NASA's Goddard Space Flight Center in Greenbelt, Maryland marks an important milestone in the assembly of the agency's James Webb Space Telescope.

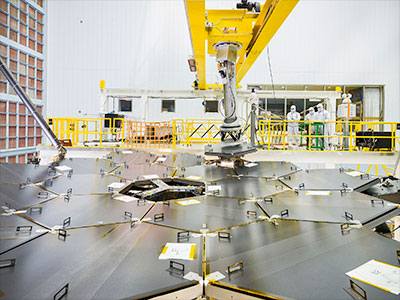

Above: Inside a massive clean room at NASA's Goddard Space Flight Center in Greenbelt, Maryland the James Webb Space Telescope team used a robotic am to install the last of the telescope's 18 mirrors onto the telescope structure. Credit: NASA/Chris Gunn

"Scientists and engineers have been working tirelessly to install these incredible, nearly perfect mirrors that will focus light from previously hidden realms of planetary atmospheres, star forming regions and the very beginnings of the Universe," said John Grunsfeld, associate administrator for NASA's Science Mission Directorate in Washington. "With the mirrors finally complete, we are one step closer to the audacious observations that will unravel the mysteries of the Universe."

Using a robotic arm reminiscent of a claw machine, the team meticulously installed all of Webb's primary mirror segments onto the telescope structure. Each of the hexagonal-shaped mirror segments measures just over 4.2 feet (1.3 meters) across -- about the size of a coffee table -- and weighs approximately 88 pounds (40 kilograms). Once in space and fully deployed, the 18 primary mirror segments will work together as one large 21.3-foot diameter (6.5-meter) mirror.

"Completing the assembly of the primary mirror is a very significant milestone and the culmination of over a decade of design, manufacturing, testing and now assembly of the primary mirror system," said Lee Feinberg, optical telescope element manager at Goddard. "There is a huge team across the country who contributed to this achievement."

While the primary mirror installation may be finished on the tennis court-sized infrared observatory, there still is much work to be done.

Above: In this rare view, the James Webb Space Telescope's 18 mirrors are seen fully installed on the James Webb Space Telescope structure at NASA's Goddard Space Flight Center in Greenbelt, Maryland. Credit: NASA/Chris Gunn

"Now that the mirror is complete, we look forward to installing the other optics and conducting tests on all the components to make sure the telescope can withstand a rocket launch," said Bill Ochs, James Webb Space Telescope project manager. "This is a great way to start 2016!"

The mirrors were built by Ball Aerospace & Technologies Corp., in Boulder, Colorado. Ball is the principal subcontractor to Northrop Grumman for the optical technology and optical system design. The installation of the mirrors onto the telescope structure is performed by Harris Corporation, a subcontractor to Northrop Grumman. Harris Corporation leads integration and testing for the telescope.

"The Harris team will be installing the aft optics assembly and the secondary mirror in order to finish the actual telescope," said Gary Matthews, director of Universe Exploration at Harris Corporation. "The heart of the telescope, the Integrated Science Instrument Module, will then be integrated into the telescope. After acoustic, vibration, and other tests at Goddard, we will ship the system down to Johnson Space Center in Houston for an intensive cryogenic optical test to ensure everything is working properly."

posted 04-29-2016 12:13 PM

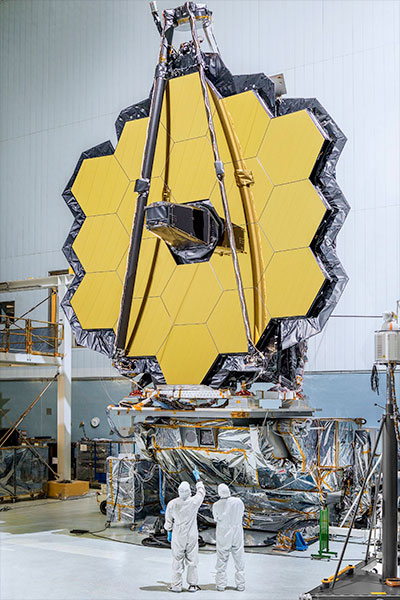

James Webb Space Telescope's Golden Mirror Unveiled

NASA engineers recently unveiled the giant golden mirror of NASA's James Webb Space Telescope as part of the integration and testing of the infrared telescope.

The 18 mirrors that make up the primary mirror were individually protected with a black covers when they were assembled on the telescope structure. Now, for the first time since the primary mirror was completed, the covers have been lifted.

Standing tall and glimmering gold inside NASA's Goddard Space Flight Center's clean room in Greenbelt, Maryland, this mirror will be the largest yet sent into space. Currently, engineers are busy assembling and testing the other pieces of the telescope.

Scientists from around the world will use this unique observatory to capture images and spectra of not only the first galaxies to appear in the early universe over 13.5 billion years ago, but also the full range of astronomical sources such as star forming nebulae, exoplanets, and even moons and planets within our own Solar System. To ensure the mirror is both strong and light, the team made the mirrors out of beryllium. Each mirror segment is about the size of a coffee table and weighs approximately 20 kilograms (46 pounds). A very fine film of vaporized gold coats each segment to improve the mirror's reflection of infrared light. The fully assembled mirror is larger than any rocket so the two sides of it fold up. Behind each mirror are several motors so that the team can focus the telescope out in space.

This widely anticipated telescope will soon go through many rigorous tests to ensure it survives its launch into space. In the next few months, engineers will install other key elements, and take additional measurements to ensure the telescope is ready for space.

posted 11-02-2016 08:10 AM

NASA Completes Webb Telescope Center of Curvature Pre-test

Engineers and technicians working on the James Webb Space Telescope successfully completed the first important optical measurement of Webb's fully assembled primary mirror, called a Center of Curvature test.

Above: Engineers conduct a "Center of Curvature" test on NASA's James Webb Space Telescope in the clean room at NASA's Goddard Space Flight Center, Greenbelt, Maryland. Credit: NASA/Chris Gunn

Taking a "before" optical measurement of the telescope's deployed mirror is crucial before the telescope goes into several stages of rigorous mechanical testing. These tests will simulate the violent sound and vibration environments the telescope will experience inside its rocket on its way out into space. This environment is one of the most stressful structurally and could alter the shape and alignment of Webb's primary mirror, which could degrade or, in the worst case, ruin its performance.

Webb has been designed and constructed to withstand its launch environment, but it must be tested to verify that it will indeed survive and not change in any unexpected way. Making the same optical measurements both before and after simulated launch environment testing and comparing the results is fundamental to Webb's development, assuring that it will work in space.

"This is the only test of the entire mirror where we can use the same equipment during a before and after test," said Ritva Keski-Kuha, the test lead and NASA's Deputy Telescope Manager for Webb at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "This test will show if there are any changes or damages to the optical system."

In order to conduct the test, optical engineers set up an interferometer, the main device used to measure the shape of Webb's mirror. Waves of visible light are less than a thousandth of a millimeter long, and optics like Webb's need to be shaped and aligned even more accurately than this to work correctly. Making measurements of the mirror shape and position by lasers prevents physical contact and damage (scratches to the mirror). So scientists use wavelengths of light to make tiny measurements. By measuring light reflected off the optics using an interferometer, they are able to measure extremely small changes in shape or position. An interferometer gets its name from the process of recording and measuring the ripple patterns that result when different beams of light mix and their waves combine or 'interfere.'

During the test conducted by a team from NASA Goddard, Ball Aerospace of Boulder, Colorado, and the Space Telescope Science Institute in Baltimore Maryland, temperature and humidity conditions in the cleanroom were kept incredibly stable to minimize drift in the sensitive optical measurements over time. Even so, tiny vibrations are ever-present in the cleanroom that cause jitter during measurements, so the interferometer is a 'high-speed' one, taking 5,000 'frames' every second, which is a faster rate than the background vibrations themselves. This allows engineers to subtract out jitter and get good, clean results.

The Center of Curvature test measures the shape of Webb's main mirror by comparing light reflected off of it with light from a computer-generated hologram that represents what Webb's mirror ideally should be. By interfering the beam of light from Webb with the beam from the hologram reference, the interferometer accurately compares the two by measuring the difference to incredible precision. "Interferometry using a computer-generated hologram is a classic modern optical test used to measure mirrors," said Keski-Kuha.

With the largest mirror of any space telescope, taking this measurement is a challenge. "We have spent the last four years preparing for this test," said David Chaney, Webb's primary mirror metrology lead at Goddard. "The challenges of this test include the large size of the primary mirror, the long radius of curvature, and the background noise. Our test is so sensitive we can measure the vibrations of the mirrors due to people talking in the room."

After the measurements come back from the interferometer the team will analyze the data to make sure the mirrors are aligned perfectly before the launch environment tests. The Center of Curvature test will be repeated after the launch environment testing and the results compared to confirm that Webb's optics will work after their launch into space.

The most powerful space telescope ever built, the Webb telescope will provide images of the first galaxies ever formed, and explore planets around distant stars. It is a joint project of NASA, the European Space Agency and the Canadian Space Agency.

posted 12-20-2016 09:44 AM

James Webb Space Telescope Vibration Test Status

The James Webb Space Telescope is undergoing testing to make sure the spacecraft withstands the harsh conditions of launch, and to find and remedy all possible concerns before it is launched from French Guiana in 2018.

During the vibration testing on December 3, 2016, at Goddard Space Flight Center in Greenbelt, Maryland, accelerometers attached to the telescope detected anomalous readings during a particular test. Further tests to identify the source of the anomaly are underway.

The engineering team investigating the vibe anomaly has made numerous detailed visual inspections of the Webb telescope and has found no visible signs of damage. They are continuing their analysis of accelerometer data to better determine the source of the anomaly. They have conducted a low-level vibration of the hardware to measure its responses, and are comparing the results with data obtained prior to the anomaly.

Engineers are currently running diagnostics to determine the cause and to assess any potential impacts. We will provide updates as they are available.

posted 01-03-2017 01:47 PM

NASA's Webb Telescope to Resume Vibration Testing in January

Vibration tests are one of the many tests that spacecraft and instruments endure to ensure they are fit for spaceflight. During routine testing of NASA's James Webb Space Telescope, an unexpected response occurred from several of the more than 100 devices designed to detect small changes in the motion of the structure. This prompted the engineers put the vibration tests on hold to determine the cause.

Since then, the team of engineers and scientists have analyzed many potential scenarios for the measured responses. They are closer to pinning down the cause, and have successfully conducted three low-level vibrations of the telescope.

All visual and ultrasonic examinations of the structure continue to show it to be sound.

"Currently, the team is continuing their analyses with the goal of having a review of their findings, conclusions and plans for resuming vibration testing in January," said Eric Smith, program director for NASA's James Webb Space Telescope, NASA Headquarters in Washington.

"This is why we test — to know how things really are, as opposed to how we think they are," said Paul Geithner, deputy project manager — technical for the Webb telescope at NASA's Goddard Space Flight Center in Greenbelt, Maryland.

During the vibration testing on Dec. 3 at NASA Goddard, accelerometers attached to the telescope detected unexpected responses and consequently the test shut itself down to protect the hardware.

The test shut itself down in a fraction of a second after a higher-than-expected response was detected at a particular frequency of vibration, about one note lower than the lowest note on a piano.

At NASA, vibration and acoustics test facilities provide vibration and shock testing of spaceflight hardware to ensure that functionality is not impaired by severe launch and landing environments. Launches create high levels of vibration in spacecraft and equipment and ground testing is done to simulate that launch induced vibration. Vibration testing is done on components as small as a few ounces to as large as complete structures or systems.

By performing the vibration testing on NASA's James Webb Space Telescope, scientists and engineers can ensure that the spacecraft and all of its instruments will endure the launch and maintain functionality when it is launched from French Guiana in 2018.

"The Webb telescope is the most dynamically complex test article ever tested at Goddard, so the responses were a bit different than expected," Geithner said.

Further testing may or may not reveal additional unexpected responses, but that is the purpose of these tests. If additional anomalies are detected, they can be corrected before launch.

posted 01-26-2017 07:03 AM

NASA Restarts Rigorous Vibration Testing on the James Webb Space Telescope

Testing on the James Webb Space Telescope successfully resumed last week at NASA's Goddard Space Flight Center, in Greenbelt, Maryland.

On December 3, 2016, vibration testing automatically shut down early due to some sensor readings that exceeded predicted levels. After a thorough investigation, the James Webb Space Telescope team at NASA Goddard determined that the cause was extremely small motions of the numerous tie-downs or "launch restraint mechanisms" that keep one of the telescope's mirror wings folded-up for launch.

"In-depth analysis of the test sensor data and detailed computer simulations confirmed that the input vibration was strong enough and the resonance of the telescope high enough at specific vibration frequencies to generate these tiny motions. Now that we understand how it happened, we have implemented changes to the test profile to prevent it from happening again," said Lee Feinberg, an engineer and James Webb Space Telescope Optical Telescope Element Manager at Goddard. "We have learned valuable lessons that will be applied to the final pre-launch tests of Webb at the observatory level once it is fully assembled in 2018. Fortunately, by learning these lessons early, we've been able to add diagnostic tests that let us show how the ground vibration test itself is more severe than the launch vibration environment in a way that can give us confidence that the launch itself will be fully successful."

Above: NASA engineers and technicians position the James Webb Space Telescope (inside a large tent) onto the shaker table used for vibration testing. (NASA/Chris Gunn)

The team resumed testing last week picking up where they left off in December. The test was successfully completed. Now that vibration testing along this one direction or "axis" is finished, the team is now moving forward with shaking the telescope in the other two directions to show that it can withstand vibrations in all three dimensions.

"This was a great team effort between the NASA Goddard team, Northrop Grumman, Orbital ATK, Ball Aerospace, the European Space Agency, and Arianespace,­­" Feinberg said. "We can now proceed with the rest of the planned tests of the telescope and instruments."

The James Webb Space Telescope is the world's most advanced space observatory. This engineering marvel is designed to unravel some of the greatest mysteries of the universe, from discovering the first stars and galaxies that formed after the Big Bang to studying the atmospheres of planets around other stars. Before the Webb is declared ready for launch, engineers and technicians rigorously test it to demonstrate all aspects of the mission and launch survivability.

"Testing on the ground is critical to proving a spacecraft is safe to launch," Feinberg said. "The Webb telescope is the most dynamically complicated article of space hardware that we've ever tested."

At Goddard, engineers test space hardware in vibration and acoustics test facilities that simulate environment to ensure that functionality is not impaired by the rigorous ride on a rocket into space. Rocket launches create high levels of vibration and noise that rattle spacecraft and telescopes. Ground testing is done to simulate the launch induced vibration and noise to ensure a solid design and assembly of the telescope before launch.

"Due to its immense size, Webb has to be folded-up for launch and then unfolded in space. Prior generations of telescopes relied on rigid, non-moving structures for their stability. Because our mirror is larger than the rocket fairing we needed structures folded for launch and moved once we're out of Earth's atmosphere. Webb is the first time we're building for both stability and mobility." Feinberg said. "This means that JWST testing is very unique, complex, and challenging."

In addition to the mirror, many other parts of JWST must deploy, and each have their own unique set of challenges for testing and launch.

NASA is working with ESA and their launch company, Arianespace, to ensure that the adjustments just made to Webb's vibration testing adequately envelopes the launch vibration environment, plus some margin. The mission continues to be on track and within budget for a 2018 launch.

posted 05-01-2017 10:51 AM

NASA's Webb Telescope Completes Goddard Testing, Heading to Texas for More

NASA's James Webb Space Telescope has successfully passed the center of curvature test, an important optical measurement of Webb's fully assembled primary mirror prior to cryogenic testing, and the last test held at NASA's Goddard Space Flight Center in Greenbelt, Maryland, before the spacecraft is shipped to NASA's Johnson Space Center in Houston for more testing.

After undergoing rigorous environmental tests simulating the stresses of its rocket launch, the Webb telescope team at Goddard analyzed the results from this critical optical test and compared it to the pre-test measurements. The team concluded that the mirrors passed the test with the optical system unscathed.

"The Webb telescope is about to embark on its next step in reaching the stars as it has successfully completed its integration and testing at Goddard. It has taken a tremendous team of talented individuals to get to this point from all across NASA, our industry and international partners, and academia," said Bill Ochs, NASA's Webb telescope project manager. "It is also a sad time as we say goodbye to the Webb Telescope at Goddard, but are excited to begin cryogenic testing at Johnson."

Rocket launches create high levels of vibration and noise that rattle spacecraft and telescopes. At Goddard, engineers tested the Webb telescope in vibration and acoustics test facilities that simulate the launch environment to ensure that functionality is not impaired by the rigorous ride on a rocket into space.

Before and after these environmental tests took place, optical engineers set up an interferometer, the main device used to measure the shape of the Webb telescope's mirror. An interferometer gets its name from the process of recording and measuring the ripple patterns that result when different beams of light mix and their waves combine or "interfere."

Waves of visible light are less than a thousandth of a millimeter long and optics on the Webb telescope need to be shaped and aligned even more accurately than that to work correctly. Making measurements of the mirror shape and position by lasers prevents physical contact and damage (scratches to the mirror). So, scientists use wavelengths of light to make tiny measurements. By measuring light reflected off the optics using an interferometer, they are able to measure extremely small changes in shape or position that may occur after exposing the mirror to a simulated launch or temperatures that simulate the subfreezing environment of space.

During a test conducted by a team from Goddard, Ball Aerospace of Boulder, Colorado, and the Space Telescope Science Institute in Baltimore, temperature and humidity conditions in the clean room were kept incredibly stable to minimize fluctuations in the sensitive optical measurements over time. Even so, tiny vibrations are ever-present in the clean room that cause jitter during measurements, so the interferometer is a "high-speed" one, taking 5,000 "frames" every second, which is a faster rate than the background vibrations themselves. This allows engineers to subtract out jitter and get good, clean results on any changes to the mirror's shape.

"Some people thought it would not be possible to measure beryllium mirrors of this size and complexity in a clean room to these levels but the team was incredibly ingenious in how they performed these measurements and the results give us great confidence we have a fantastic primary mirror," said Lee Feinberg, Webb's telescope optical element manager.

The Webb telescope will be shipped to Johnson for end-to-end optical testing in a vacuum at its extremely cold operating temperatures. Then it will continue on its journey to Northrop Grumman Aerospace Systems in Redondo Beach, California, for final assembly and testing prior to launch in 2018.

posted 05-07-2017 06:06 PM

James Webb Space Telescope Arrives at NASA's Johnson Space Center

NASA's James Webb Space Telescope has arrived at NASA's Johnson Space Center in Houston, Texas, where it will undergo its last cryogenic test before it is launched into space in 2018.

Above: The James Webb Space Telescope is pushed into the clean room of Building 32. Building 32 houses Chamber A, the thermal vacuum chamber where the telescope will have its final thermal vacuum testing. (NASA/Chris Gunn)

The telescope was loaded onto a trailer truck from NASA's Goddard Space Flight Center in Greenbelt, Maryland, and moved slowly down a highway by the Webb team to U.S. Air Force's Joint Base Andrews in Maryland. At Andrews, the telescope was then loaded onto a C-5 aircraft and flown to Ellington Field in Houston, Texas.

When the C-5 landed at Ellington, the telescope was carefully unloaded and delivered to NASA Johnson. In the coming weeks, the telescope will be prepared for a final cryogenic test that will run approximately 100 days. Then, it will continue its journey to Northrop Grumman Aerospace Systems in Redondo Beach, California, for final integration and testing with the remainder of the Webb Observatory — the sunshield and spacecraft bus — prior to launch.

To ensure the telescope's optics will operate at its frigid destination 1 million miles out in space, it must complete several cryogenic tests. The last cryogenic test will occur in Johnson's Chamber A, the same vacuum chamber where the Apollo spacecraft were tested. This critical end-to-end optical test will test the telescope at its extremely cold operating temperatures — at 40 Kelvin — the temperature that it will operate in space.

posted 06-01-2017 12:45 AM

James Webb Space Telescope to undergo testing in Apollo vacuum chamber

The scientific successor to the acclaimed Hubble Space Telescope has arrived in Houston for a pre-launch test using the historic, unparalleled facility that was built for the Apollo moon-bound spacecraft.

NASA's James Webb Space Telescope (JWST), which will study distant galaxies and look for habitable exoplanets, is now being prepared for a three-month trial inside Chamber A at Johnson Space Center in Texas. The facility, now the largest cryo-vacuum chamber in the world, was modified to support the optical instrument section of the overall tennis-court-sized observatory.

posted 06-23-2017 08:21 AM

NASA's Webb Telescope Gets Freezing Summertime Lodging in Houston

NASA's James Webb Space Telescope was placed in Johnson Space Center's historic Chamber A on June 20, to prepare for its final three months of testing in a cryogenic vacuum that mimics temperatures in space.

Above: NASA's James Webb Space Telescope sits inside Chamber A at NASA's Johnson Space Center, Houston. (NASA/Chris Gunn)

Engineers will perform the test to prove that the telescope can operate in space at these temperatures. Chamber A will simulate an environment where the telescope will experience extreme cold — around 37 Kelvin (minus 236 degrees Celsius or minus 393 degrees Fahrenheit).

In space, the telescope must be kept extremely cold, in order to be able to detect the infrared light from very faint, distant objects. To protect the telescope from external sources of light and heat (like the sun, Earth, and moon), as well as from heat emitted by the observatory, a five-layer, tennis court-sized sunshield acts like a parasol that provides shade. The sunshield separates the observatory into a warm, sun-facing side (reaching temperatures close to 185 degrees Fahrenheit) and a cold side (400 degrees below zero). The sunshield blocks sunlight from interfering with the sensitive telescope instruments.

The James Webb Space Telescope is the scientific successor to NASA's Hubble Space Telescope. It will be the most powerful space telescope ever built. Webb is an international project led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.

Above: NASA's James Webb Space Telescope crossing the threshold into Chamber A at NASA's Johnson Space Center, Houston on June 21, 2017. (NASA/Chris Gunn)

posted 07-11-2017 04:58 PM

NASA Closes Chamber A Door to Commence Webb Telescope Testing

The vault-like, 40-foot diameter, 40-ton door of NASA's Johnson Space Center's historic Chamber A sealed shut on July 10, 2017, signaling the beginning of about 100 days of cryogenic testing for NASA's James Webb Space Telescope in Houston.

Above: Chamber A's sealed, vault-like door towers over engineers at NASA's Johnson Space Center in Houston. (NASA/Chris Gunn)

Don't be fooled by Chamber A's now monolithic look. Behind the hulking door, the process to transform the chamber's interior to match the airless, frigid environment of space will soon begin. It will take about 10 days to pull the air from the chamber, and then about one month to lower the temperatures of the Webb telescope and its scientific instruments to the levels required for testing.

Though the Webb telescope will be enveloped in darkness, the engineers testing the telescope will be far from blind. "There are many thermal sensors that monitor temperatures of the telescope and the support equipment," said Gary Matthews, an integration and testing engineer at NASA's Goddard Space Flight Center in Greenbelt, Maryland, who is testing the Webb telescope while it is at Johnson. "Specialized camera systems track the physical position of the hardware inside the chamber, monitoring how Webb moves as it gets colder."

Above: NASA's James Webb Space Telescope hangs from the ceiling of Chamber A at NASA's Johnson Space Center in Houston. (NASA/Chris Gunn)

In space, the telescope must be kept extremely cold, in order to be able to detect the infrared light from very faint, distant objects. To protect the telescope from external sources of light and heat (like the sun, Earth and moon), as well as from heat emitted by the observatory, a five-layer, tennis court-sized sunshield acts like a parasol that provides shade. The sunshield separates the observatory into a warm, sun-facing side (reaching temperatures close to 185 degrees Fahrenheit) and a cold side (400 degrees below zero). The sunshield blocks sunlight from interfering with the sensitive telescope instruments.

posted 08-09-2017 11:37 AM

Sunshield Layers Fully Integrated on NASA's James Webb Space Telescope

The five sunshield layers responsible for protecting the optics and instruments of NASA's James Webb Space Telescope are now fully installed.

Above: The first layer of the Webb telescope sunshield installed at Northrop Grumman's clean room in Redondo Beach, California. (Northrop Grumman)

Northrop Grumman Corporation in Redondo Beach, California who designed the Webb telescope's optics and spacecraft bus for NASA's Goddard Space Flight Center in Greenbelt, Maryland, integrated the final flight layers into the sunshield subsystem. The team is now folding and stowing the layers, in preparation for deployment tests in August.

The sunshield layers work together to reduce the temperatures between the hot and cold sides of the observatory by approximately 570 degrees Fahrenheit. Each successive layer of the sunshield, made of kapton, is cooler than the one below. All layers were installed and tested in June and July 2017 at Northrop Grumman Corporation's Space Park facility in Redondo Beach.

"This is a huge milestone for the Webb telescope as we prepare for launch," said Jim Flynn, Webb sunshield manager, Northrop Grumman Aerospace Systems. "The groundbreaking tennis court sized sunshield will shield the optics from heat and assist in providing the imaging of the formation of stars and galaxies more than 13.5 billion years ago."

Above: All five layers of the Webb telescope sunshield installed at Northrop Grumman's clean room in Redondo Beach, California. The five sunshield membrane layers are each as thin as a human hair. (Northrop Grumman)

"All five sunshield membranes have been installed and will be folded over the next few weeks," said Paul Geithner, deputy project manager — technical for the Webb telescope at NASA's Goddard Space Flight Center in Greenbelt, Maryland.

The Webb telescope's sunshield will prevent the background heat from the sun from interfering with the telescope's infrared sensors. The five sunshield membrane layers, designed and manufactured by the NeXolve Corporation in Huntsville, Alabama, are each as thin as a human hair. Because the sunshield is the size of a tennis court, it helps solidify the Webb telescope as the largest ever built for space. The sunshield, along with the rest of the spacecraft, will fold origami-style into an Ariane 5 rocket.

Above: The sunshield layers work together to reduce the temperatures between the hot and cold sides of the observatory by approximately 570 degrees Fahrenheit. Each successive layer of the sunshield, which is made of Kapton, is cooler than the one below. The sunshield is in the clean room at Northrop Grumman Aerospace Systems in Redondo Beach, California. (Northrop Grumman)

posted 09-27-2017 12:05 PM

Engineers Warm NASA's Webb Telescope as End of Cryogenic Testing Nears

The temperature of Chamber A at NASA's Johnson Space Center in Houston has begun to rise, signaling the beginning of the end of James Webb Space Telescope's cryogenic testing.

On Sept. 27, engineers began to warm Chamber A to bring the Webb telescope back to room temperature — the last step before the chamber's massive, monolithic door unseals and Webb emerges in October. Everyone can watch the temperature of Chamber A rise during the next few weeks by checking out the temperature overlay on the online Webbcam. The overlay shows the temperature of the gaseous helium shroud, the innermost of two shrouds that were used to cool the telescope to cryogenic (extremely cold) temperatures. The two shrouds are thin, cylindrical, metal shells that envelope the telescope.

"Engineers will perform the warming gradually... to ensure the safety of the telescope, its science instruments, and the supporting equipment," said Randy Kimble, an integration and test project scientist for the Webb Telescope at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "Once the chamber and its contents are warmed to near room temperature, engineers will begin to pump gaseous nitrogen into [the chamber] until it is once again at one atmosphere of pressure (at sea level) and no longer a vacuum."

The engineers are using heaters to incrementally warm the inside of the chamber. In addition to this, they will warm the two enveloping shrouds, which previously had frigid cryogens (substances used to produce extremely cold temperatures) flowing through them.

In addition to the heaters, the engineers will gradually raise the temperature of the helium gas flowing through the innermostshroud. Carl Reis, the test director for Webb's cryogenic testing at Johnson, said the temperature of that shroud, which is the temperature displayed on the Webbcam overlay, will reach about 68 degrees Fahrenheit (about 20 degrees Celsius / 293 kelvins) before the Chamber A door opens. He added that the engineers will stop the flow of liquid nitrogen into the outermost shroud,allowing the liquid nitrogen already inside the shroud to "boil off" as it warms. Liquid nitrogen begins to evaporate at about minus 321 degrees Fahrenheit (about minus 196 degrees Celsius / 77 kelvins).

The team tested Webb in the airless cold of Chamber A because, in the vacuum of space, the telescope must be kept extremely cold in order to be able to detect the infrared light from very faint, distant objects. Warm objects emit infrared radiation, and any excess warmth could givefalse signals to the telescope. The cryogenic testing ensured all of Webb's components, including its science instruments and mirrors, worked as expected in a space-like environment.

Webb next journeys to Northrop Grumman in Redondo Beach, California, where it will be integrated with the spacecraft and sunshield, thus forming the completedobservatory. Once there, it will undergo more tests duringwhat is called "observatory-level testing." This testing is the last exposure to a simulated launch environment before flight and deployment testing on the whole observatory.

posted 09-28-2017 01:45 PM

NASA's James Webb Space Telescope to be Launched Spring 2019

NASA's James Webb Space Telescope now is planning to launch between March and June 2019 from French Guiana, following a schedule assessment of the remaining integration and test activities. Previously Webb was targeted to launch in October 2018.

"The change in launch timing is not indicative of hardware or technical performance concerns," said Thomas Zurbuchen, associate administrator for NASA's Science Mission Directorate at Headquarters in Washington. "Rather, the integration of the various spacecraft elements is taking longer than expected."

As part of an international agreement with the ESA (European Space Agency) to provide a desired launch window one year prior to launch, NASA recently performed a routine schedule assessment to ensure launch preparedness and determined a launch schedule change was necessary. The careful analysis took into account the remaining tasks that needed to be completed, the lessons learned from unique environmental testing of the telescope and science instruments at NASA's Goddard Space Flight Center in Greenbelt, Maryland, and the current performance rates of integrating the spacecraft element.

Testing of the telescope and science instruments continues to go well and on schedule at NASA's Johnson Space Center in Houston, Texas. The spacecraft itself, comprised of the spacecraft bus and sunshield, has experienced delays during its integration and testing at Northrop Grumman in Redondo Beach, California.

The additional environmental testing time of the fully assembled observatory — the telescope and the spacecraft — will ensure that Webb will be fully tested before launching into space. All the rigorous tests of the telescope and the spacecraft to date show the mission is meeting its required performance levels.

Existing program budget accommodates the change in launch date, and the change will not affect planned science observations.

"Webb's spacecraft and sunshield are larger and more complex than most spacecraft. The combination of some integration activities taking longer than initially planned, such as the installation of more than 100 sunshield membrane release devices, factoring in lessons learned from earlier testing, like longer time spans for vibration testing, has meant the integration and testing process is just taking longer," said Eric Smith, program director for the James Webb Space Telescope at NASA Headquarters in Washington. "Considering the investment NASA has made, and the good performance to date, we want to proceed very systemmatically through these tests to be ready for a Spring 2019 launch."

The launch window request has been coordinated with ESA, which is providing the Ariane 5 launch of Webb as part of its scientific collaboration with NASA.

posted 10-26-2017 04:55 PM

Sunshield Deployment and Layers Fully Tensioned on NASA's James Webb Space Telescope

Northrop Grumman Corporation (NYSE: NOC), which designed NASA's James Webb Space Telescope's (JWST) optics, spacecraft bus, and sunshield for NASA Goddard Space Flight Center, has deployed the sunshield subsystem and fully tensioned the five sunshield layers for the first time.

Above: At Northrop Grumman highbay facilities in Redondo Beach, California, NASA's James Webb Space Telescope's five sunshield layers are fully tensioned for the first time.

"The first tensioning of the sunshield is a monumental and exciting moment, not only for the program but for the collaborative JWST team," said Scott Willoughby, vice president and program manager, James Webb Space Telescope, Northrop Grumman Aerospace Systems "The innovative sunshield is an industry first, and will protect Webb's optics from heat, making it possible to gather images of the formation of the first stars and galaxies more than 13.5 billion years ago."

In space, the sunshield subsystem divides the JWST observatory into a warm sun-facing side and a cold space-facing side comprised of the optics and scientific instruments. The sunshield subsystem, which includes the structure and mechanisms required for deploying the five-layer subsystem, was designed, manufactured and assembled by Northrop Grumman, with the five membrane layers manufactured by the NeXolve Corporation in Huntsville, Alabama.

The flight membranes will be folded, stowed and tensioned again two additional times for testing. The folding and stowing method is how the membranes will be folded and stowed for launch. The sunshield layers, known for being the size of a tennis court, will protect and prevent the background heat from the Sun, Earth and Moon from interfering with JWST's infrared sensors.

The sunshield layers, each as thin as a human hair, work together to reduce the temperatures between the hot and cold sides of the observatory by approximately 570 degrees Fahrenheit. Moving from the sun-facing layer to the one closest to the telescope, each successive layer of the sunshield, which is made of Kapton, is cooler than the one below. The sunshield, along with the rest of the spacecraft, will fold origami-style into an Ariane 5 rocket.

posted 11-20-2017 11:58 AM

NASA's James Webb Space Telescope Completes Final Cryogenic Testing

The vault-like, 40-foot diameter, 40-ton door of Chamber A at NASA's Johnson Space Center in Houston was unsealed on November 18, signaling the end of cryogenic testing for NASA's James Webb Space Telescope.

The historic chamber's massive door opening brings to a close about 100 days of testing for Webb, a significant milestone in the telescope's journey to the launch pad. The cryogenic vacuum test began when the chamber was sealed shut on July 10, 2017. Scientists and engineers at Johnson put Webb's optical telescope and integrated science instrument module (OTIS) through a series of tests designed to ensure the telescope functioned as expected in an extremely cold, airless environment akin to that of space.

Above: NASA's James Webb Space Telescope sits inside Chamber A at NASA's Johnson Space Center in Houston after having completed its cryogenic testing on Nov. 18, 2017. This marked the telescope's final cryogenic testing, and it ensured the observatory is ready for the frigid, airless environment of space. (Credits: NASA/Chris Gunn)

"After 15 years of planning, chamber refurbishment, hundreds of hours of risk-reduction testing, the dedication of more than 100 individuals through more than 90 days of testing, and surviving Hurricane Harvey, the OTIS cryogenic test has been an outstanding success," said Bill Ochs, project manager for the James Webb Space Telescope at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "The completion of the test is one of the most significant steps in the march to launching Webb."

These tests included an important alignment check of Webb's 18 primary mirror segments, to make sure all of the gold-plated, hexagonal segments acted like a single, monolithic mirror. This was the first time the telescope's optics and its instruments were tested together, though the instruments had previously undergone cryogenic testing in a smaller chamber at Goddard. Engineers from Harris Space and Intelligence Systems, headquartered in Melbourne, Florida, worked alongside NASA personnel for the test at Johnson.

"The Harris team integrated Webb's 18 mirror segments at Goddard and designed, built, and helped operate the advanced ground support and optical test equipment at Johnson," said Rob Mitrevski, vice president and general manager of intelligence, surveillance, and reconnaissance at Harris. "They were a key, enabling part of the successful Webb telescope testing team."

The Webb telescope team persisted with the testing even when Hurricane Harvey slammed into the coast of Texas on Aug. 25 as a category 4 hurricane before stalling over eastern Texas and weakening to a tropical storm, where it dropped as much as 50 inches of rain in and around Houston. Many Webb telescope team members at Johnson endured the historic storm, working tirelessly through overnight shifts to make sure Webb's cryogenic testing was not interrupted. In the wake of the storm, some Webb team members, including team members from Harris, volunteered their time to help clean up and repair homes around the city, and distribute food and water to those in need.

"The individuals and organizations that have led us to this most significant milestone represent the very best of the best. Their knowledge, dedication, and execution to successfully complete the testing as planned, even while enduring Hurricane Harvey, cannot be overstated," said Mark Voyton, James Webb Space Telescope optical telescope element and integrated science instrument manager at Goddard. "Every team member delivered critical knowledge and insight into the strategic and tactical planning and execution required to complete all of the test objectives, and I am honored to have experienced this phase of our testing with every one of them."

Before cooling the chamber, engineers removed the air from it, which took about a week. On July 20, engineers began to bring the chamber, the telescope, and the telescope's science instruments down to cryogenic temperatures — a process that took about 30 days. During cool down, Webb and its instruments transferred their heat to surrounding liquid nitrogen and cold gaseous helium shrouds in Chamber A. Webb remained at "cryo-stable" temperatures for about another 30 days, and on Sept. 27, the engineers began to warm the chamber back to ambient conditions (near room temperature), before pumping the air back into it and unsealing the door.

"With an integrated team from all corners of the country, we were able to create deep space in our chamber and confirm that Webb can perform flawlessly as it observes the coldest corners of the universe," said Jonathan Homan, project manager for Webb's cryogenic testing at Johnson. "I expect [Webb] to be successful, as it journeys to Lagrange point 2 [after launch] and explores the origins of solar systems, galaxies, and has the chance to change our understanding of our universe."

While Webb was inside the chamber, insulated from both outside visible and infrared light, engineers monitored it using thermal sensors and specialized camera systems. The thermal sensors kept tabs on the temperature of the telescope, while the camera systems tracked the physical position of Webb to see how its components very minutely moved during the cooldown process. Monitoring the telescope throughout the testing required the coordinated effort of every Webb team member at Johnson.

"This test team spanned nearly every engineering discipline we have on Webb," said Lee Feinberg, optical telescope element manager for the Webb telescope at Goddard. "In every area there was incredible attention to detail and great teamwork, to make sure we understand everything that happened during the test and to make sure we can confidently say Webb will work as planned in space."

In space, the telescope must be kept extremely cold, in order to be able to detect the infrared light from very faint, distant objects. Webb and its instruments have an operating temperature of about 40 Kelvin (or about minus 387 Fahrenheit / minus 233 Celsius). Because the Webb telescope's mid-infrared instrument (MIRI) must be kept colder than the other research instruments, it relies on a cryocooler to lower its temperature to less than 7 Kelvin (minus 447 degrees Fahrenheit / minus 266 degrees Celsius).

To protect the telescope from external sources of light and heat (like the Sun, Earth and Moon), as well as from heat emitted by the observatory, a five-layer, tennis court-sized sunshield acts like a parasol that provides shade. The sunshield separates the observatory into a warm, sun-facing side (reaching temperatures close to 185 degrees Fahrenheit / 85 degrees Celsius) and a cold side (minus 400 degrees Fahrenheit / minus 240 degrees Celsius). The sunshield blocks sunlight from interfering with the sensitive telescope instruments.

Webb's combined science instruments and optics next journey to Northrop Grumman Aerospace Systems in Redondo Beach, California, where they will be integrated with the spacecraft element, which is the combined sunshield and spacecraft bus. Together, the pieces form the complete James Webb Space Telescope observatory. Once fully integrated, the entire observatory will undergo more tests during what is called "observatory-level testing." This testing is the last exposure to a simulated launch environment before flight and deployment testing on the whole observatory.

Webb is expected to launch from Kourou, French Guiana, in the spring of 2019.

posted 01-10-2018 03:45 PM

Webb Telescope's Houston Highlights

With NASA's James Webb Space Telescope's approximately nine-month stay in Texas coming to an end, now is a good time to reflect on the memories it made in the Lone Star State. NASA has created a timelapse video that chronicles Webb's time at NASA's Johnson Space Center in Houston.

James Webb Space Telescope, or Webb, is the agency's upcoming infrared space observatory, which will launch in 2019. It spent much of 2017 at Johnson, where it underwent critical cryogenic testing inside Chamber A, a massive thermal vacuum chamber at the center.

Webb arrived at Johnson in May 2017, inside a massive, specially designed shipping container called the Space Telescope Transporter for Air, Road and Sea (STTARS). Upon its arrival, engineers moved STTARS into the Chamber A cleanroom and carefully unpacked the telescope's combined optical element and science instruments from it.

In June 2017, engineers deployed Webb's primary mirror wings and secondary mirror tripod, which is the same configuration the optical element will have when it deploys in space. The engineers then loaded Webb on a platform designed to hold the telescope inside Chamber A, and slowly and deliberately moved Webb inside the chamber along a set of rails. Even with the chamber's 40-foot (12.2-meter) diameter entrance, the fully extended secondary mirror tripod made it a tight fit for Webb.

On July 10, Chamber A's colossal door closed, signaling the beginning of cryogenic testing. During approximately 100 days in the chamber, scientists and engineers at Johnson put Webb through a series of tests designed to ensure the telescope functioned as expected in an extremely cold, airless environment akin to that of space.

Before cooling the chamber, engineers removed the air from it, which took about a week. On July 20, engineers began to bring the chamber, the telescope, and the telescope's science instruments down to cryogenic temperatures — a process that took about 30 days. Webb remained at "cryo-stable" temperatures for about another 30 days, and on Sept. 27, the engineers began to warm the chamber back to ambient conditions (near room temperature), before pumping the air back into it and unsealing the door.

Webb emerged from Chamber A on Dec. 1, riding out on the same rail system that carried it in.

Above: Engineers posed by NASA's James Webb Space Telescope shortly after it emerged from Chamber A at NASA's Johnson Space Center in Houston on Dec. 1, 2017. (NASA/Chris Gunn)

The gamut of tests Webb has endured so far ensure it will safely reach its orbit at Earth's second Lagrange point (L2) and be able to successfully perform its science mission. In early 2017, Webb underwent vibration and acoustic testing at NASA's Goddard Space Flight Center in Greenbelt, Maryland, which showed the telescope will survive the rigors of launch. Among the tests performed on Webb inside Chamber A was an important alignment check of the telescope's 18 primary mirror segments, to make sure all of the gold-plated, hexagonal segments acted like a single, monolithic mirror in a space-like environment. This test also showed Webb's science instruments were properly aligned with its mirrors and could detect simulated "starlight" within the chamber.

Webb's combined science instruments and optics next journey to Northrop Grumman Aerospace Systems in Redondo Beach, California, where they will be integrated with the spacecraft element, which is the combined sunshield and spacecraft bus. Together, the pieces form the complete James Webb Space Telescope observatory.

posted 02-08-2018 10:26 AM

Combined Optics, Science Instruments of NASA's James Webb Space Telescope Arrive in California

The two halves of NASA's James Webb Space Telescope now reside at Northrop Grumman Aerospace Systems in Redondo Beach, California, where they will come together to form the complete observatory.

Webb's optical telescope and integrated science instrument module (OTIS) arrived at Northrop Grumman Feb. 2, from NASA's Johnson Space Center in Houston, where it successfully completed cryogenic testing.

"This is a major milestone," said Eric Smith, director of the James Webb Space Telescope Program at NASA. "The Webb observatory, which is the work of thousands of scientists and engineers across the globe, will be carefully tested to ensure it is ready to launch and enable scientists to seek the first luminous objects in the universe and search for signs of habitable planets."

In preparation for leaving Johnson, OTIS was placed inside a specially designed shipping container called the Space Telescope Transporter for Air, Road and Sea (STTARS). The container then was loaded onto a U.S. military C-5 Charlie aircraft at Ellington Field Joint Reserve Base, just outside of Johnson. From there, OTIS took a flight to Los Angeles International Airport. After arrival, OTIS was driven from the airport to Northrop Grumman's Space Park facility.

"It's exciting to have both halves of the Webb observatory – OTIS and the integrated spacecraft element – here at our campus," said Scott Willoughby, vice president and program manager for Webb at Northrop Grumman. "The team will begin the final stages of integration of the world's largest space telescope."

During this summer, OTIS will combined with the spacecraft element to form the complete Webb observatory. Once the telescope is fully integrated, the entire observatory will undergo more tests during what is called observatory-level testing. Webb is scheduled to launch from Kourou, French Guiana, in 2019.

The James Webb Space Telescope will be the world's premier infrared space observatory of the next decade. Webb will help humanity solve the mysteries of our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international program led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.

posted 03-27-2018 10:24 AM

NASA's Webb Observatory Requires More Time for Testing and Evaluation; New Launch Window Under Review

NASA's James Webb Space Telescope currently is undergoing final integration and test phases that will require more time to ensure a successful mission. After an independent assessment of remaining tasks for the highly complex space observatory, Webb's previously revised 2019 launch window now is targeted for approximately May 2020.

"Webb is the highest priority project for the agency's Science Mission Directorate, and the largest international space science project in U.S. history. All the observatory's flight hardware is now complete, however, the issues brought to light with the spacecraft element are prompting us to take the necessary steps to refocus our efforts on the completion of this ambitious and complex observatory," said acting NASA Administrator Robert Lightfoot.

Testing the hardware on the observatory's telescope element and spacecraft element demonstrate that these systems individually meet their requirements. However, recent findings from the project's Standing Review Board (SRB) indicate more time is needed to test and integrate these components together and then perform environmental testing at Northrop Grumman Aerospace Systems in Redondo Beach, California, the project's observatory contractor.

NASA is establishing an external Independent Review Board (IRB), chaired by Thomas Young, a highly respected NASA and industry veteran who is often called on to chair advisory committees and analyze organizational and technical issues. The IRB findings, which will complement the SRB data, are expected to bolster confidence in NASA's approach to completing the final integration and test phase of the mission, the launch campaign, commissioning, as well as the entire deployment sequence. Both boards' findings and recommendations, as well as the project's input, will be considered by NASA as it defines a more specific launch time frame. NASA will then provide its assessment in a report to Congress this summer.

NASA will work with its partner, ESA (European Space Agency), on a new launch readiness date for the Ariane 5 vehicle that will launch Webb into space. Once a new launch readiness date is determined, NASA will provide a cost estimate that may exceed the projected $8 billion development cost to complete the final phase of testing and prepare for launch. Additional steps to address project challenges include increasing NASA engineering oversight, personnel changes, and new management reporting structures.

This is a pivotal year for Webb when the 6.5-meter telescope and science payload element will be joined with the spacecraft element to form the complete observatory. The spacecraft element consists of the tennis-court-sized sunshield, designed by Northrop Grumman, and the spacecraft bus, which houses the flight avionics, power system, and solar panels. Because of Webb's large size, engineers had to design components that fold origami-style into the Ariane 5 rocket's fairing configuration.

Webb has already completed an extensive range of tests to ensure it will safely reach its orbit at nearly one million miles from Earth and perform its science mission. As with all NASA projects, rigorous testing takes time, increasing the likelihood of mission success.

"Considering the investment NASA and our international partners have made, we want to proceed systematically through these last tests, with the additional time necessary, to be ready for a May 2020 launch," said Thomas Zurbuchen, associate administrator for NASA's Science Mission Directorate.

After the successful test performance of Webb's telescope and science payload in 2017 at NASA's Johnson Space Flight Center in Houston, the telescope element was delivered to Northrop Grumman earlier this year. Both halves of the 13,500-pound observatory now are together in the same facility for the first time.

The spacecraft element will next undergo environmental testing, subjecting it to the vibrational, acoustic and thermal environments it will experience during its launch and operations. These tests will take a few months to complete. Engineers then will integrate and test the fully assembled observatory and verify all components work together properly.

Webb is an international project led by NASA with its partners, ESA and the Canadian Space Agency. ESA is providing the Ariane 5 as part of its scientific collaboration with NASA.

The James Webb Space Telescope will be the world's premier infrared space observatory and the biggest astronomical space science telescope ever built, complementing the scientific discoveries of NASA's Hubble Space Telescope and other science missions. Webb will solve mysteries of our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it.

posted 06-27-2018 11:39 AM

NASA delays launch of James Webb Space Telescope to 2021

NASA will need an additional year and more than $800 million to finally deploy its next great orbiting observatory, space agency officials announced on Wednesday (June 27).

The James Webb Space Telescope (JWST), which had been tentatively slated to launch in May 2020, will now wait until at least March 30, 2021, and will exceed its congressionally-mandated cost cap of $8 billion, after a NASA review board found an array of concerns.

posted 02-09-2019 12:48 PM

NASA's Webb Is Sound After Completing Critical Milestones

NASA's James Webb Space Telescope has successfully passed another series of critical testing milestones on its march to the launch pad.

In recent acoustic and sine vibration tests, technicians and engineers exposed Webb's spacecraft element to brutal dynamic mechanical environmental conditions to ensure it will endure the rigors of a rocket launch to space.

During liftoff, rockets generate extremely powerful vibrations and energetic sound waves that bounce off the ground and nearby buildings and impact the rocket as it makes its way skyward. Technicians and engineers aim to protect Webb from these intense sound waves and vibrations.

To simulate these conditions, flight components are intentionally punished with a long litany of tests throughout different facilities to identify potential issues on the ground. Webb was bombarded by powerful sound waves from massive speakers and then placed on an electrodynamic vibration table and strongly but precisely shaken. Together, these tests mimic the range of extreme shaking that spacecraft experience while riding a rocket to space.

Above: The James Webb Space Telescope's spacecraft element just prior to being transported to nearby acoustic, and vibration test facilities at Northrop Grumman in Redondo Beach, California. (Goddard Space Flight Center/Chris Gunn)

"Webb's launch vibration environment is similar to a pretty bumpy commercial airplane flight during turbulence," said Paul Geithner, deputy project manager – technical, James Webb Space Telescope at NASA's Goddard Space Flight Center in Greenbelt, Maryland. "And, its launch acoustic environment is about 10 times more sound pressure, 100 times more intense and four times louder than a rock concert."

One half of the Webb observatory, known as the "spacecraft element," was the subject of this latest testing. The spacecraft element consists of the "bus," which is the equipment that actually flies the observatory in space, plus the tennis-court-size sunshield that will keep Webb's sensitive optics and instruments at their required super-cold operating temperature. Northrop Grumman in Redondo Beach, California, NASA's lead industrial teammate on Webb, designed and built the spacecraft element, and conducted the testing in their facilities with NASA support and guidance. Northrop Grumman and NASA engineers and technicians worked tirelessly together as a team over the last few months to complete these complex dynamic mechanical environmental tests.

The initial attempt at acoustic testing last spring uncovered a problem with a specific portion of sunshield hardware, which required some modifications taking several months. Subsequently, the acoustic test was redone, and this time everything went successfully. With acoustic testing complete, the spacecraft element was transported in a mobile clean room to a separate vibration facility, where its spacecraft hardware was exposed to the bumps and shakes that occur when riding a rocket soaring through the atmosphere at high Mach speeds. Northrop Grumman, NASA and its partner, ESA (European Space Agency), are familiar with the flight profile and performance of the Ariane 5 rocket that will carry Webb into space in early 2021, so technicians tuned the tests to mimic the conditions it's expected to face during launch.

Above: To keep Webb's spacecraft element and its sensitive instruments contaminant free, technicians and engineers enclose it in a protective clamshell that serves as a mobile clean room while in transport. (Goddard Space Flight Center/Chris Gunn)

With the successful completion of its mechanical environmental testing, the spacecraft element is being prepared for thermal vacuum testing. This other major environmental test will ensure it functions electrically in the harsh temperatures and vacuum of space. The other half of Webb, which consists of the telescope and science instruments, had completed its own vibration and acoustic testing at Goddard and cryogenic-temperature thermal vacuum testing at NASA's Johnson Space Center in Houston prior to delivery at Northrop Grumman last year. Once finished with thermal vacuum testing, the spacecraft element will return to the giant clean room where it was assembled, to be deployed from its folded-up launch configuration and into its operational configuration, which will be the final proof that it has passed all of its environmental tests. Then, the two halves of Webb — the spacecraft and the telescope elements — will be integrated into one complete observatory for a final round of testing and evaluation prior to launch.

Webb will be the world's premier space science observatory. It will solve mysteries of our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international project led by NASA with its partners, ESA and the Canadian Space Agency.

posted 08-28-2019 09:33 AM

NASA's James Webb Space Telescope Has Been Assembled for the First Time

Reaching a major milestone, engineers have successfully connected the two halves of NASA's James Webb Space Telescope for the first time at Northrop Grumman's facilities in Redondo Beach, California. Once it reaches space, NASA's most powerful and complex space telescope will explore the cosmos using infrared light, from planets and moons within our solar system to the most ancient and distant galaxies.

Above: NASA's James Webb Space Telescope, post-integration, inside Northrop Grumman's cleanroom facilities in Redondo Beach, California. (NASA/Chris Gunn)

To combine both halves of Webb, engineers carefully lifted the Webb telescope (which includes the mirrors and science instruments) above the already-combined sunshield and spacecraft using a crane. Team members slowly guided the telescope into place, ensuring that all primary points of contact were perfectly aligned and seated properly. The observatory has been mechanically connected; next steps will be to electrically connect the halves, and then test the electrical connections.

"The assembly of the telescope and its scientific instruments, sunshield and the spacecraft into one observatory represents an incredible achievement by the entire Webb team," said Bill Ochs, Webb project manager for NASA Goddard Space Flight Center in Greenbelt, Maryland. "This milestone symbolizes the efforts of thousands of dedicated individuals for over more than 20 years across NASA, the European Space Agency, the Canadian Space Agency, Northrop Grumman, and the rest of our industrial and academic partners."

Above: The fully assembled James Webb Space Telescope with its sunshield and unitized pallet structures (UPSs) that fold up around the telescope for launch, are seen partially deployed to an open configuration to enable telescope installation. (NASA/Chris Gunn)

Next up for Webb testing, engineers will fully deploy the intricate five-layer sunshield, which is designed to keep Webb's mirrors and scientific instruments cold by blocking infrared light from the Earth, Moon and Sun. The ability of the sunshield to deploy to its correct shape is critical to mission success.

"This is an exciting time to now see all Webb's parts finally joined together into a single observatory for the very first time," said Gregory Robinson, the Webb program director at NASA Headquarters in Washington, D.C. "The engineering team has accomplished a huge step forward and soon we will be able to see incredible new views of our amazing universe."

Above: Integration teams carefully guide Webb's suspended telescope section into place above its Spacecraft Element just prior to integration. (NASA/Chris Gunn)

Both of the telescope's major components have been tested individually through all of the environments they would encounter during a rocket ride and orbiting mission a million miles away from Earth. Now that Webb is a fully assembled observatory, it will go through additional environmental and deployment testing to ensure mission success. The spacecraft is scheduled to launch in 2021.

Webb will be the world's premier space science observatory. It will solve mysteries in our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international project led by NASA with its partners, ESA (European Space Agency), and the Canadian Space Agency.

Above: NASA's James Webb Space Telescope, post-integration, inside Northrop Grumman's cleanroom facilities in Redondo Beach, California. (NASA/Chris Gunn)

posted 10-21-2019 04:27 PM

NASA's James Webb Space Telescope Clears Critical Sunshield Deployment Testing

The sunshield for NASA's James Webb Space Telescope has passed a test critical to preparing the observatory for its 2021 launch. Technicians and engineers fully deployed and tensioned each of the sunshield's five layers, successfully putting the sunshield into the same position it will be in a million miles from Earth.

Above: NASA's James Webb Space Telescope is seen with its revolutionary five-layer sunshield fully deployed, standing tall in Northrop Grumman's clean room in Redondo Beach, California. (NASA/Chris Gunn)

"This was the first time that the sunshield has been deployed and tensioned by the spacecraft electronics and with the telescope present above it. The deployment is visually stunning as a result, and it was challenging to accomplish," said James Cooper, NASA's Webb Telescope Sunshield Manager at NASA's Goddard Space Flight Center, Greenbelt, Maryland.

To observe distant parts of the universe humans have never seen before, the Webb observatory is equipped with an arsenal of revolutionary technologies, making it the most sophisticated and complex space science telescope ever created. Among the most challenging of these technologies is the five-layer sunshield, designed to protect the observatory's mirrors and scientific instruments from light and heat, primarily from the Sun.

As a telescope optimized for infrared light, it is imperative that Webb's optics and sensors remain extremely cold, and its sunshield is key for regulating temperature. Webb requires a successful sunshield deployment on orbit to meet its science goals.

The sunshield separates the observatory into a warm side that always faces the Sun (thermal models show the maximum temperature of the outermost layer is 383 Kelvin or approximately 230 degrees Fahrenheit), and a cold side that always faces deep space (with the coldest layer having a modeled minimum temp of 36 Kelvin, or around minus 394 degrees Fahrenheit). The oxygen present in Earth's atmosphere would freeze solid at the temperatures experienced on the cold side of the sunshield, and an egg could easily be boiled with the heat encountered on the warm end.

Above: After successfully assembling the entire observatory, technicians and engineers moved on to fully deploy and tension all five layers of its tennis court sized sunshield, which is designed to keep its optics and sensors in the shade and away from interference. (NASA/Chris Gunn)

Webb has passed other deployment tests during its development. Equally as important were the successful disposition of issues uncovered by those earlier deployments and the spacecraft element environmental testing. As before, technicians used gravity-offsetting pulleys and weights to simulate the zero-g environment it will experience in space. By carefully monitoring the deployment and tensioning of each individual layer, Webb technicians ensure that once on orbit, they will function flawlessly.

"This test showed that the sunshield system survived spacecraft element environmental testing, and taught us about the interfaces and interactions between the telescope and sunshield parts of the observatory," Cooper added. "Many thanks to all the engineers and technicians for their perseverance, focus and countless hours of effort to achieve this milestone."

The sunshield consists of five layers of a polymer material called Kapton. Each layer is coated with vapor-deposited aluminum, to reflect the Sun's heat into space. The two hottest sun-facing layers also have a "doped-silicon" (or treated silicon) coating to protect them from the Sun's intense ultraviolet radiation.

To collect light from some of the first stars and galaxies to have formed after the Big Bang, the telescope needed both the largest mirror ever to be launched into space, and the sunshield that has the wingspan of an entire tennis court. Because of the telescope's size, shape and thermal performance requirements, the sunshield must be both big and complex. But it also has to fit inside a standard 16-foot-(5-meter)-diameter rocket payload fairing, and also reliably deploy into a specific shape, while experiencing the absence of gravity, without error.

Above: Each layer of NASA Webb's Kapton sunshield are uniquely sized, shaped, and have special rip-stop patterning to add durability to the membranes that are as thin as a human hair. (Northrop Grumman)

Following Webb's successful sunshield test, team members will begin the long process of perfectly folding the sunshield back into its stowed position for flight, which occupies a much smaller space than when it is fully deployed. Then, the observatory will be subjected to comprehensive electrical tests and one more set of mechanical tests that emulate the launch vibration environment, followed by one final deployment and stowing cycle on the ground, before its flight into space.

Webb will be the world's premier space science observatory. It will solve mysteries in our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international project led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.

posted 04-01-2020 08:33 PM

NASA's James Webb Space Telescope Full Mirror Deployment a Success

In a recent test, NASA's James Webb Space Telescope fully deployed its primary mirror into the same configuration it will have when in space.

As Webb progresses towards liftoff in 2021, technicians and engineers have been diligently checking off a long list of final tests the observatory will undergo before being packaged for delivery to French Guiana for launch. Performed in early March, this procedure involved commanding the spacecraft's internal systems to fully extend and latch Webb's iconic 21 feet 4-inch (6.5 meter) primary mirror, appearing just like it would after it has been launched to orbit. The observatory is currently in a cleanroom at Northrop Grumman Space Systems in Redondo Beach, California.

The difficulty and complexity of performing tests for Webb has increased significantly, now that the observatory has been fully assembled. Special gravity offsetting equipment was attached to Webb's mirror to simulate the zero-gravity environment its mechanisms will have to operate in. Tests like these help safeguard mission success by physically demonstrating that the spacecraft is able to move and unfold as intended. The Webb team will deploy the observatory's primary mirror only once more on the ground, just before preparing it for delivery to the launch site.

A telescope's sensitivity, or how much detail it can see, is directly related to the size of the mirror that collects light from the objects being observed. A larger surface area collects more light, just like a larger bucket collects more water in a rain shower than a small one. Webb's mirror is the biggest of its kind that NASA has ever built.

In order to perform groundbreaking science, Webb's primary mirror needs to be so large that it cannot fit inside any rocket available in its fully extended form. Like the art of origami, Webb is a collection of movable parts employing applied material science that have been specifically designed to fold themselves to a compact formation that is considerably smaller than when the observatory is fully deployed. This allows it to just barely fit within a 16-foot (5-meter) payload fairing, with little room to spare.

"Deploying both wings of the telescope while part of the fully assembled observatory is another significant milestone showing Webb will deploy properly in space. This is a great achievement and an inspiring image for the entire team," said Lee Feinberg, optical telescope element manager for Webb at NASA's Goddard Space Flight Center in Greenbelt, Maryland.

The evolving novel coronavirus COVID-19 situation is causing significant impact and disruption globally. Given these circumstances, Webb's Northrop Grumman team in California has resumed integration and testing work with reduced personnel and shifts until the Deployable Tower Assembly set up in April. The project will then shut down integration and testing operations due to the lack of required NASA onsite personnel related to the COVID-19 situation. The project will reassess over the next couple of weeks and adjust decisions as the situation continues to unfold.

The James Webb Space Telescope will be the world's premier space science observatory when it launches in 2021. Webb will solve mysteries in our solar system, look beyond to distant worlds around other stars, and probe the mysterious structures and origins of our universe and our place in it. Webb is an international program led by NASA with its partners, ESA (European Space Agency) and the Canadian Space Agency.
