Author Topic:   Help with LH2 tank test schematic
Guy DuMont
Member

Posts: 312
From: Aurora IL USA
Registered: Feb 2004

posted 02-20-2024 08:33 PM     Click Here to See the Profile for Guy DuMont   Click Here to Email Guy DuMont     Edit/Delete Message   Reply w/Quote

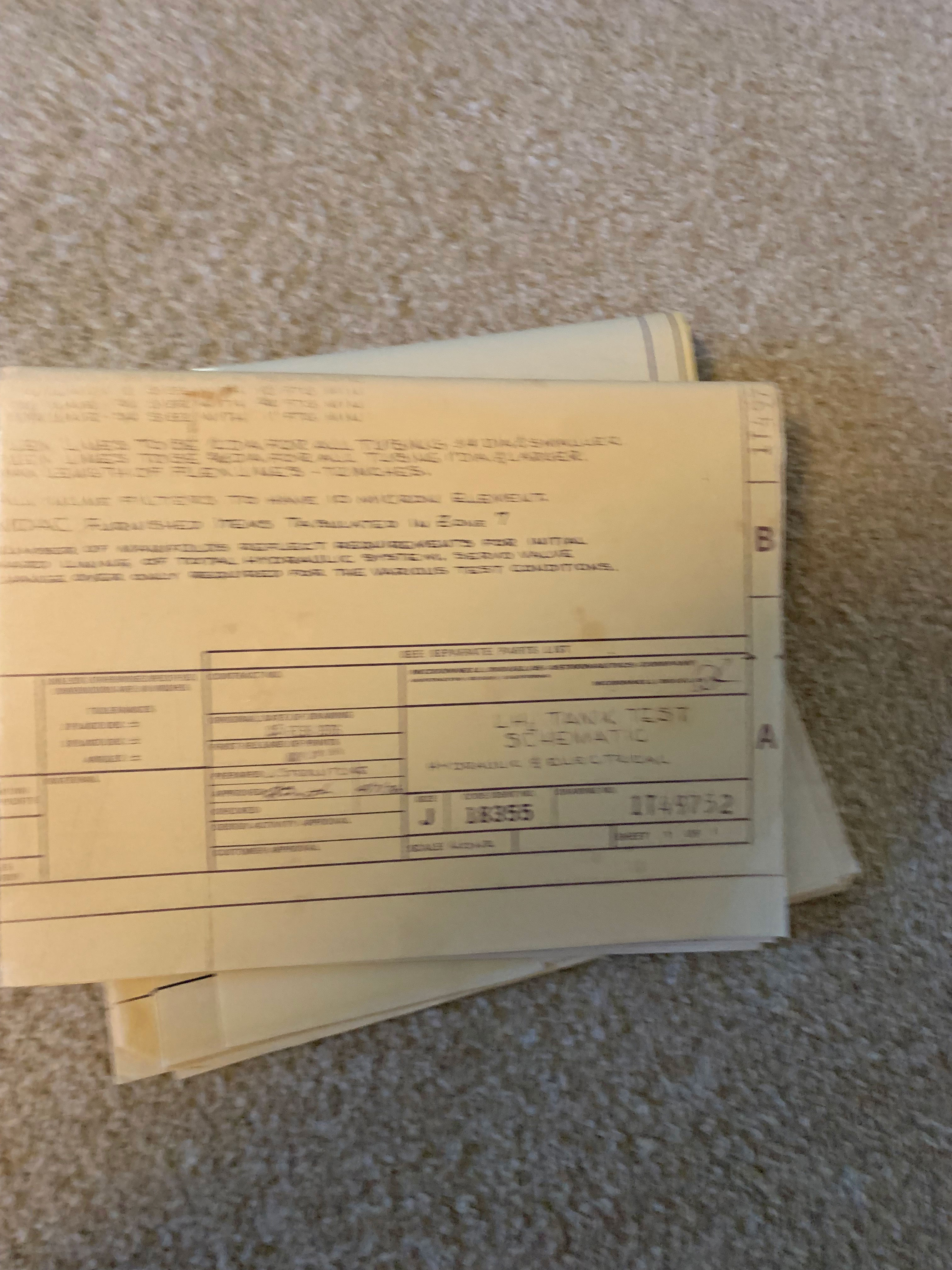

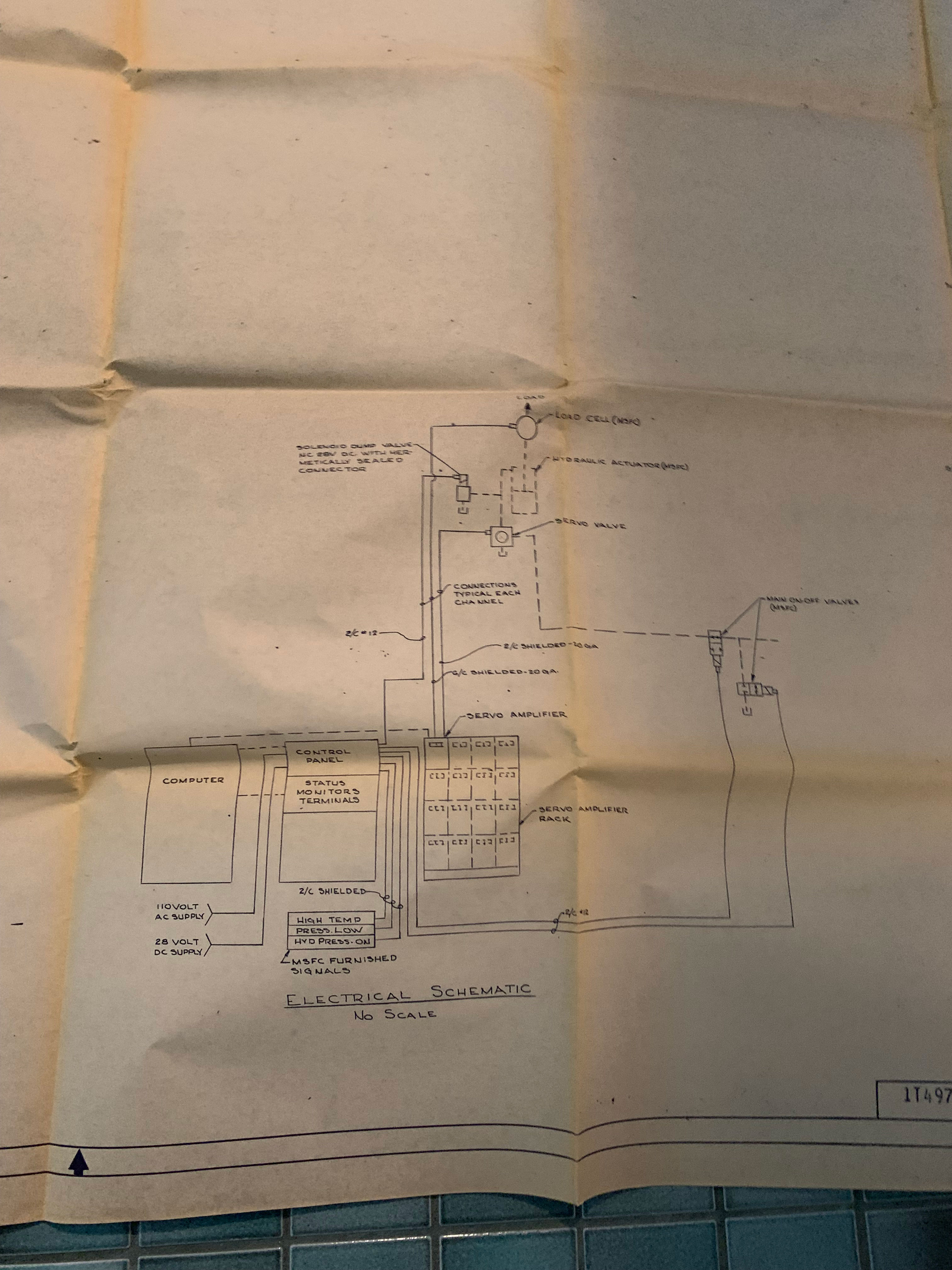

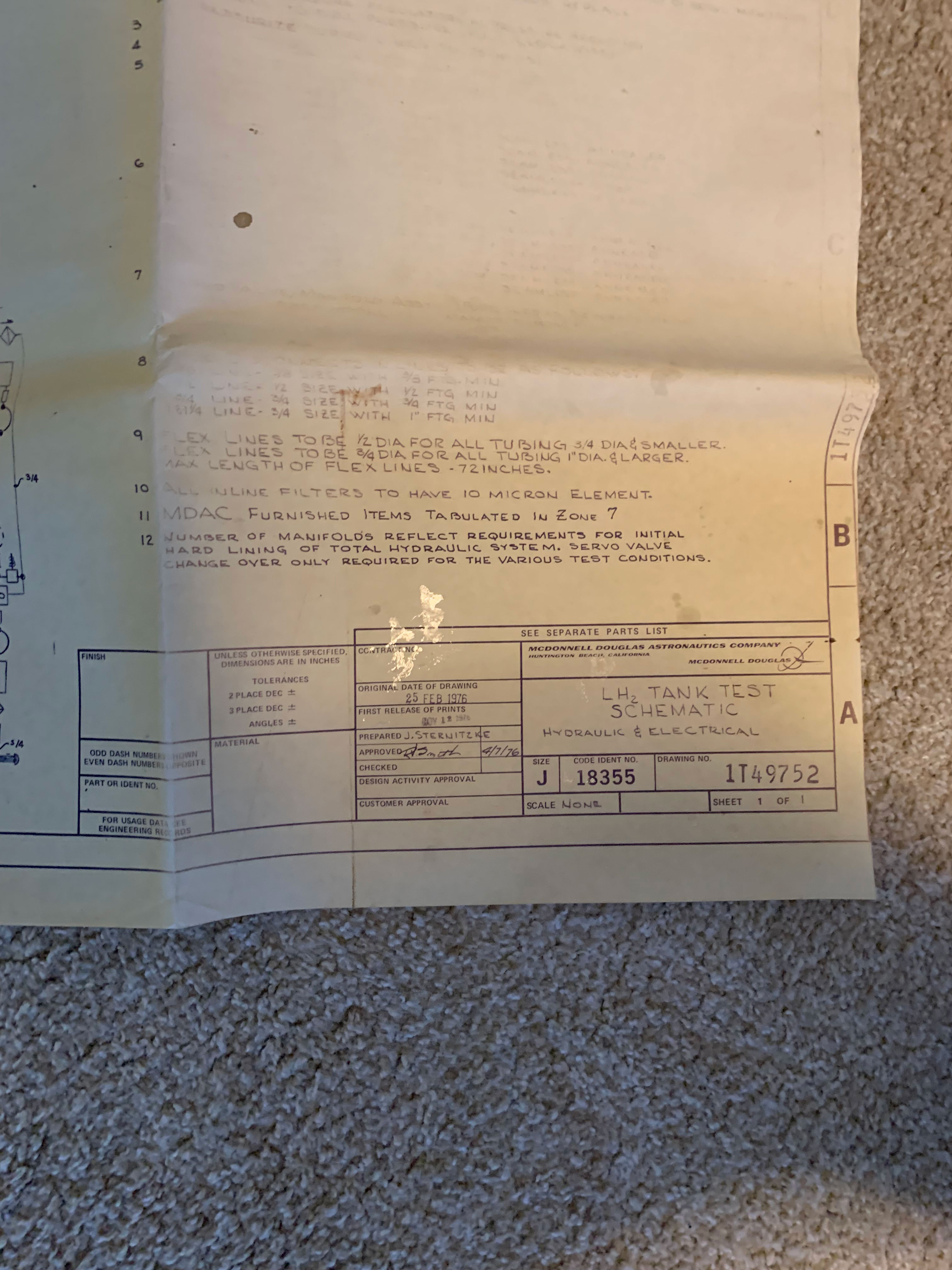

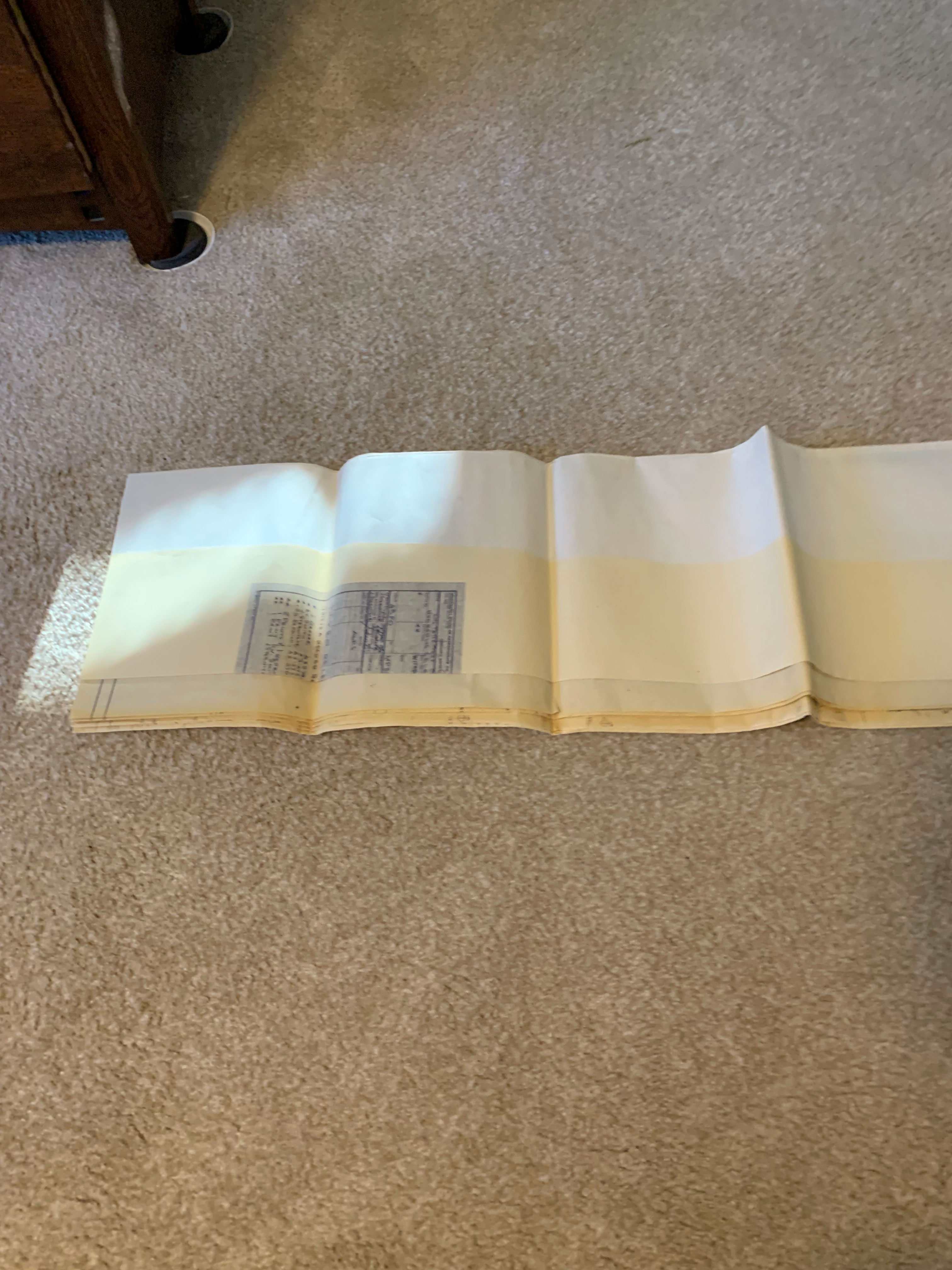

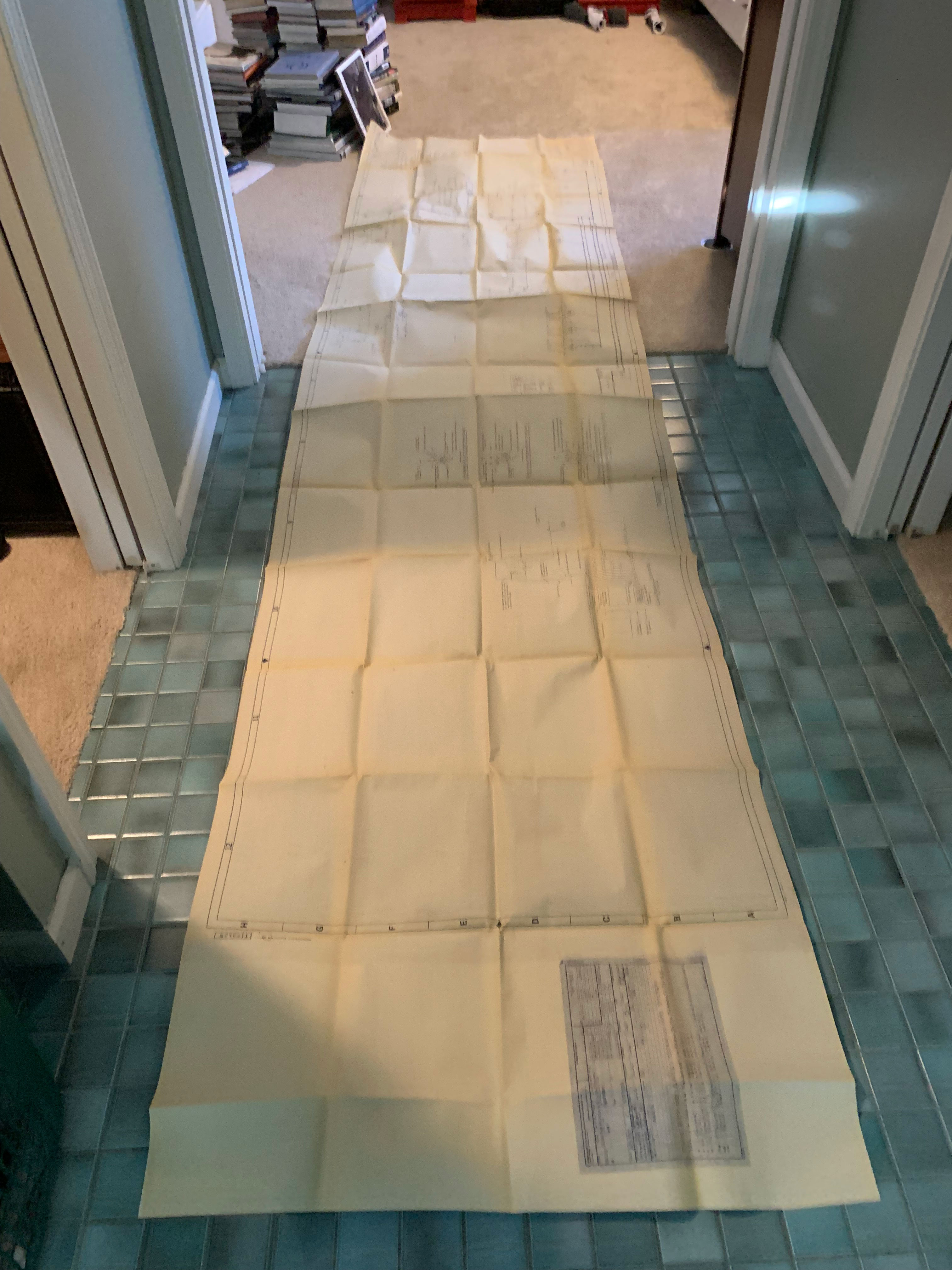

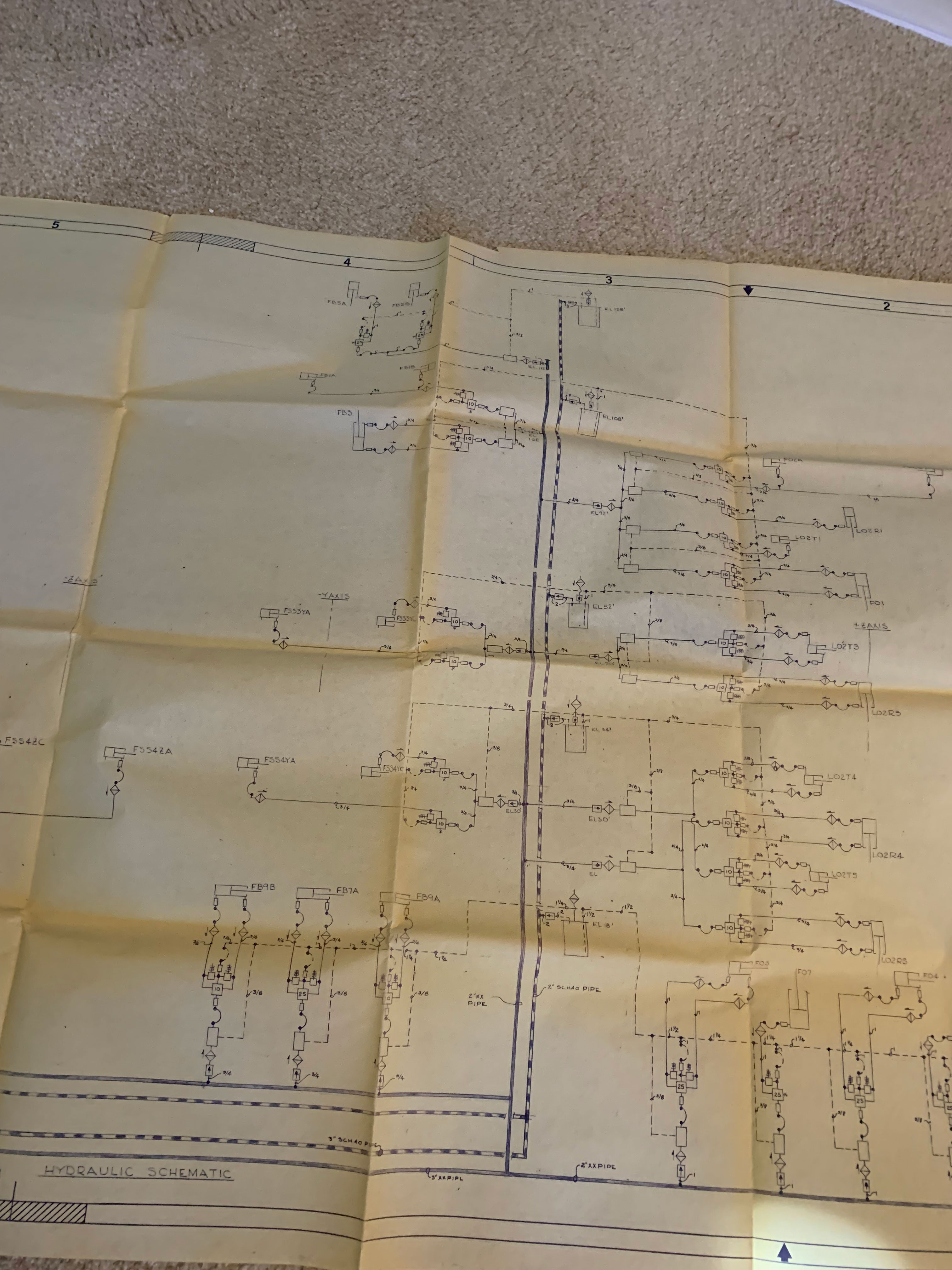

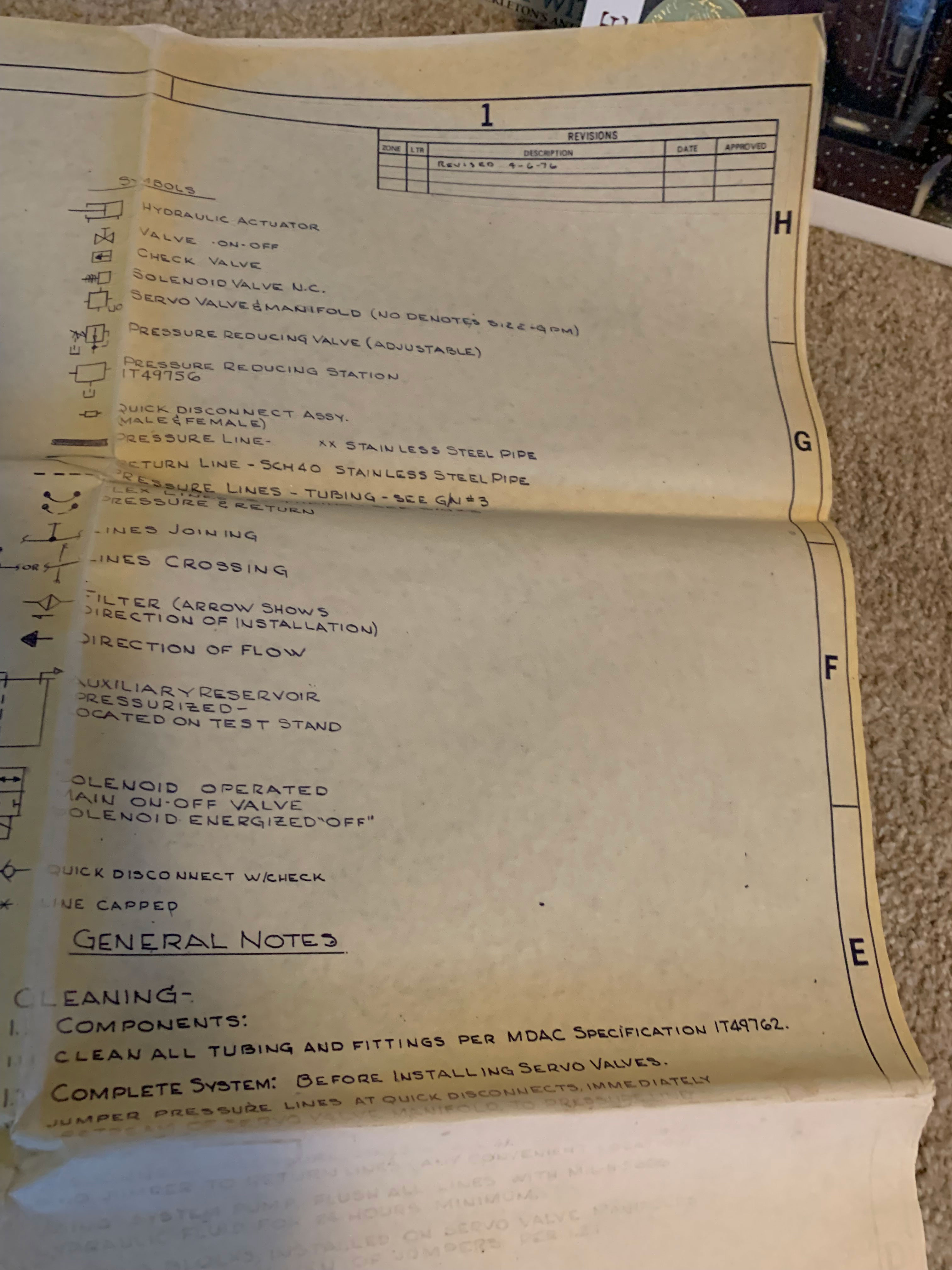

This liquid hydrogen (LH2) tank schematic was purchased at an estate sale in Huntsville, Alabama, with other NASA books, photos etc. This schematic is over 10 feet long.

I was hoping a member could shed some light on this?

Jim Behling
Member

Posts: 1870
From: Cape Canaveral, FL
Registered: Mar 2010

posted 02-21-2024 09:31 AM     Click Here to See the Profile for Jim Behling   Click Here to Email Jim Behling     Edit/Delete Message   Reply w/Quote
Not Saturn and not shuttle

MartinAir
Member

Posts: 344
From:
Registered: Oct 2020

posted 02-21-2024 11:34 AM     Click Here to See the Profile for MartinAir   Click Here to Email MartinAir     Edit/Delete Message   Reply w/Quote

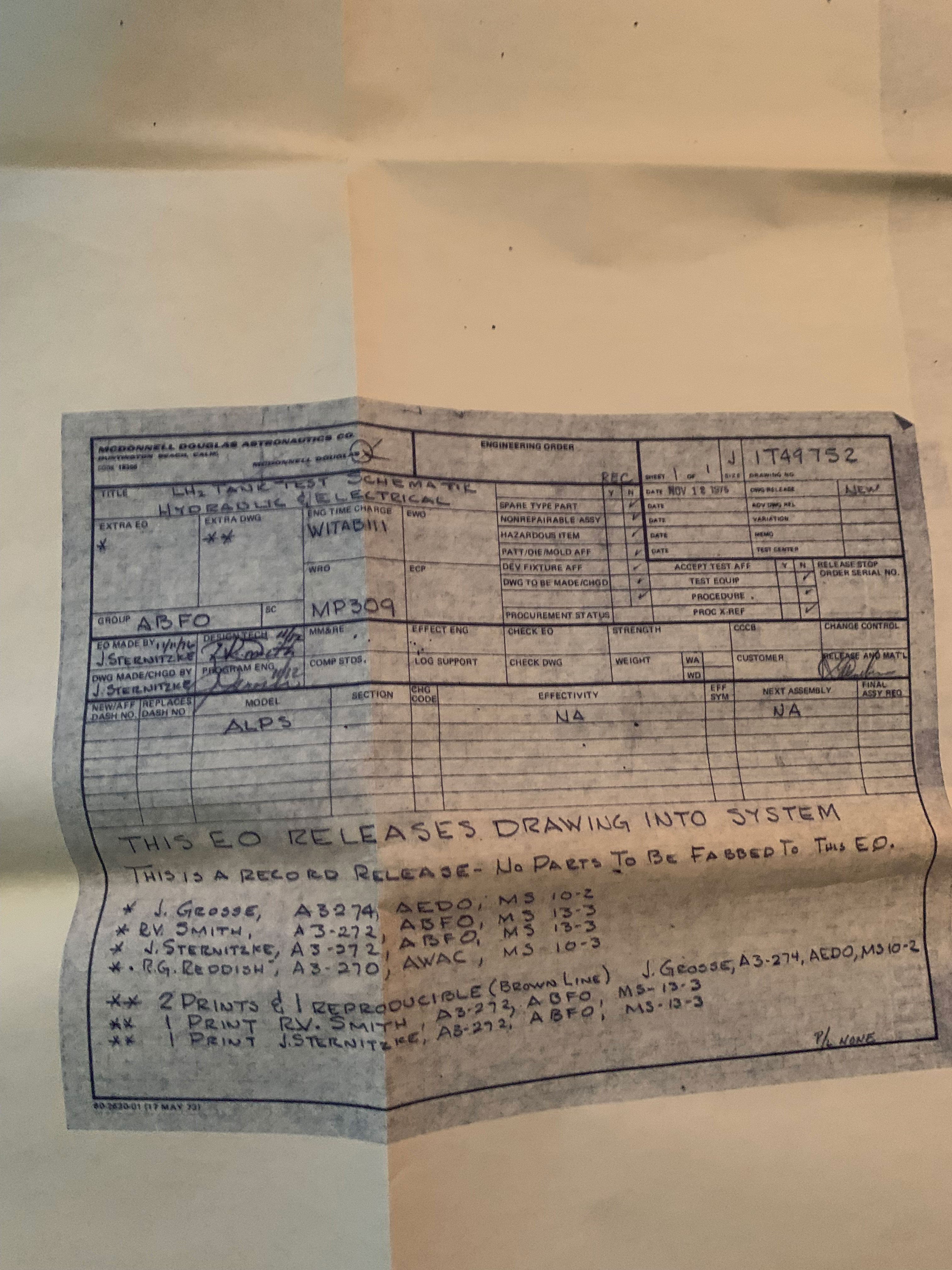

ALPS may stand for Accidental Launch Protection System. A DoD project, awarded to MD Astronautics.
