Author Topic:   Skylab command/service module high gain antenna
alanh_7
Member

Posts: 1252
From: Ajax, Ontario, Canada
Registered: Apr 2008

posted 03-02-2015 08:51 AM     Click Here to See the Profile for alanh_7   Click Here to Email alanh_7     Edit/Delete Message   Reply w/Quote
Did the Skylab service modules have the large high gain antennas mounted? I have not seen any photos showing it.

Robert Pearlman
Editor

Posts: 42981
From: Houston, TX
Registered: Nov 1999

posted 03-02-2015 09:07 AM     Click Here to See the Profile for Robert Pearlman   Click Here to Email Robert Pearlman     Edit/Delete Message   Reply w/Quote

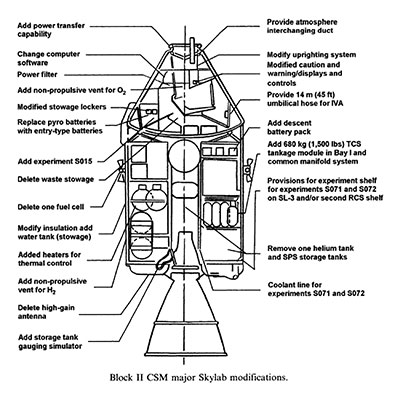

This diagram, from "Skylab: America's Space Station" (David Shayer) shows the modifications to the Apollo command and service modules for Skylab, including the deletion of the high gain antenna.

alanh_7
Member

Posts: 1252
From: Ajax, Ontario, Canada
Registered: Apr 2008

posted 03-02-2015 07:19 PM     Click Here to See the Profile for alanh_7   Click Here to Email alanh_7     Edit/Delete Message   Reply w/Quote
Thanks Robert
